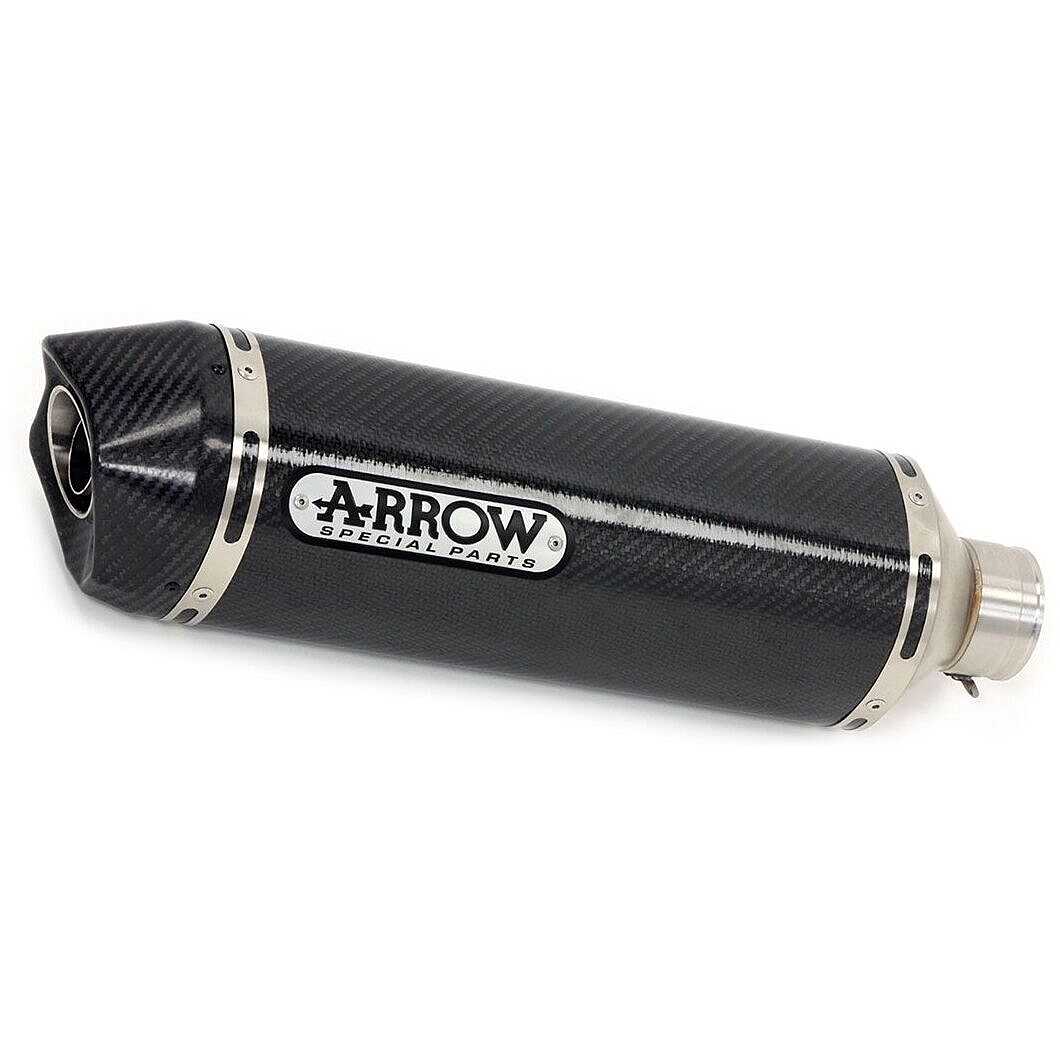

Arrow Race-Tech Approved carbon exhaust with carby end cap for Aprilia RSV 4 1000 (09-15); Tuono V4R (11-15); RSV 4 1000 RR / Tuono V4 1100 (15-18)

The need to increase the volume of the exhaust terminal, for some particular applications, led to the creation of the exhaust Maxi Race-Tech, with the same technical characteristics as the Race-Tech, but with a larger cross-section. This increased volume has made it possible to create exhausts for large-displacement motorcycles, which generally require more noise reduction.
The body of the silencer is made of titanium, aluminium or carbon fibre and, as with the Race-Tech, on some top models it is available with a carbon fibre rear endcap.
Despite its imposing size, the Maxi Race-Tech is very light. The sound is aggressive and enveloping, and the performance is excellent and adequate.
The Maxi Race-Techs are also available in an approved version for most applications.

Specific For:

Aprilia

• RSV 4 1000 (2009 - 2015)
• Tuono V4R (2011 - 2015)
• RSV 4 1000 RR (2015 - 2018)
• Tuono V4 1100 (2015 - 2018)

Technical Data Sheet:

• Body material: carbon
• Rear pad material: carbon
• Silencer inner material:stainless steel
• Frame fixing type: steel clamp
• Body length (mm): 350.00
• Graft diameter (mm): 60.00
• Outlet diameter (mm): 50.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 2.3

WARNINGS: Please read the technical information note available in the "Documents" section

ECE approval: Yes (approvals relating to noise and power control)

N.B: To be combined with an Arrow Fittings:

71627KZ - EC approval: Yes (approval relating to the control of emissions into the atmosphere)

71627MI - EC approval: No

N.B: The approval is valid only for the specified vehicle types and subsequent updates

ATTENTION: TERMINAL FOR ORIGINAL COLLECTORS

ATTENTION: For correct assembly, we recommend that you go to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT US FOR MORE INFORMATION
