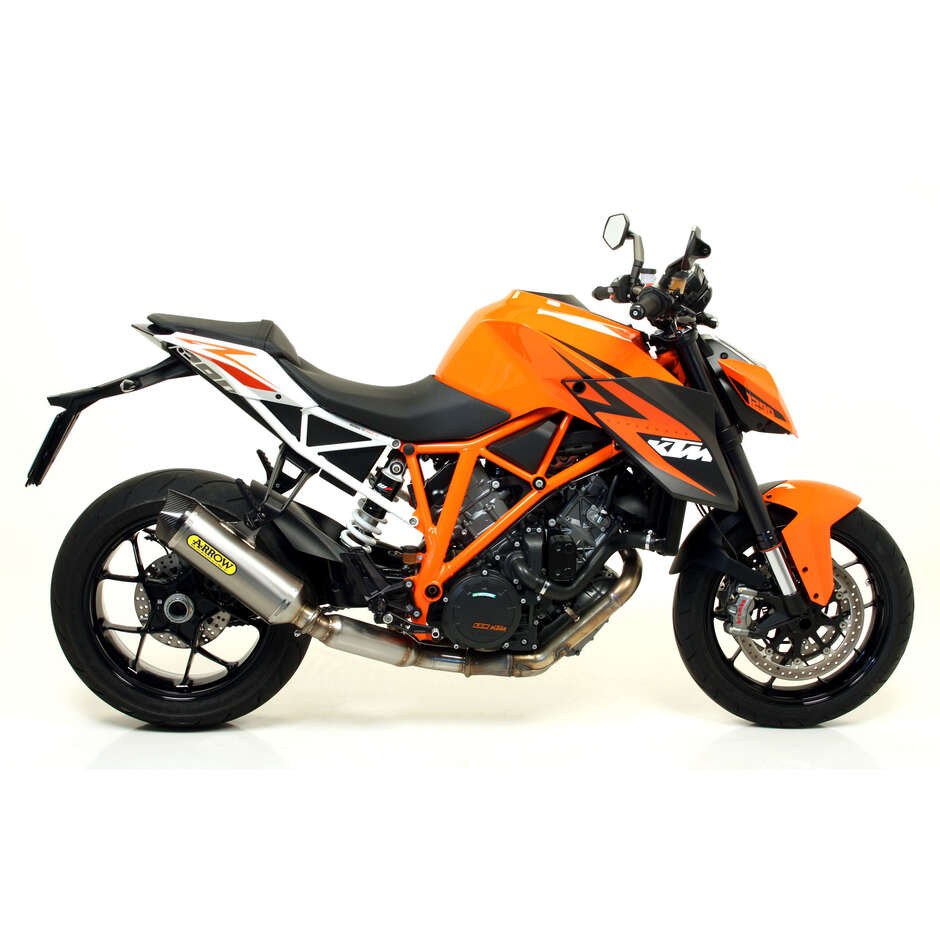

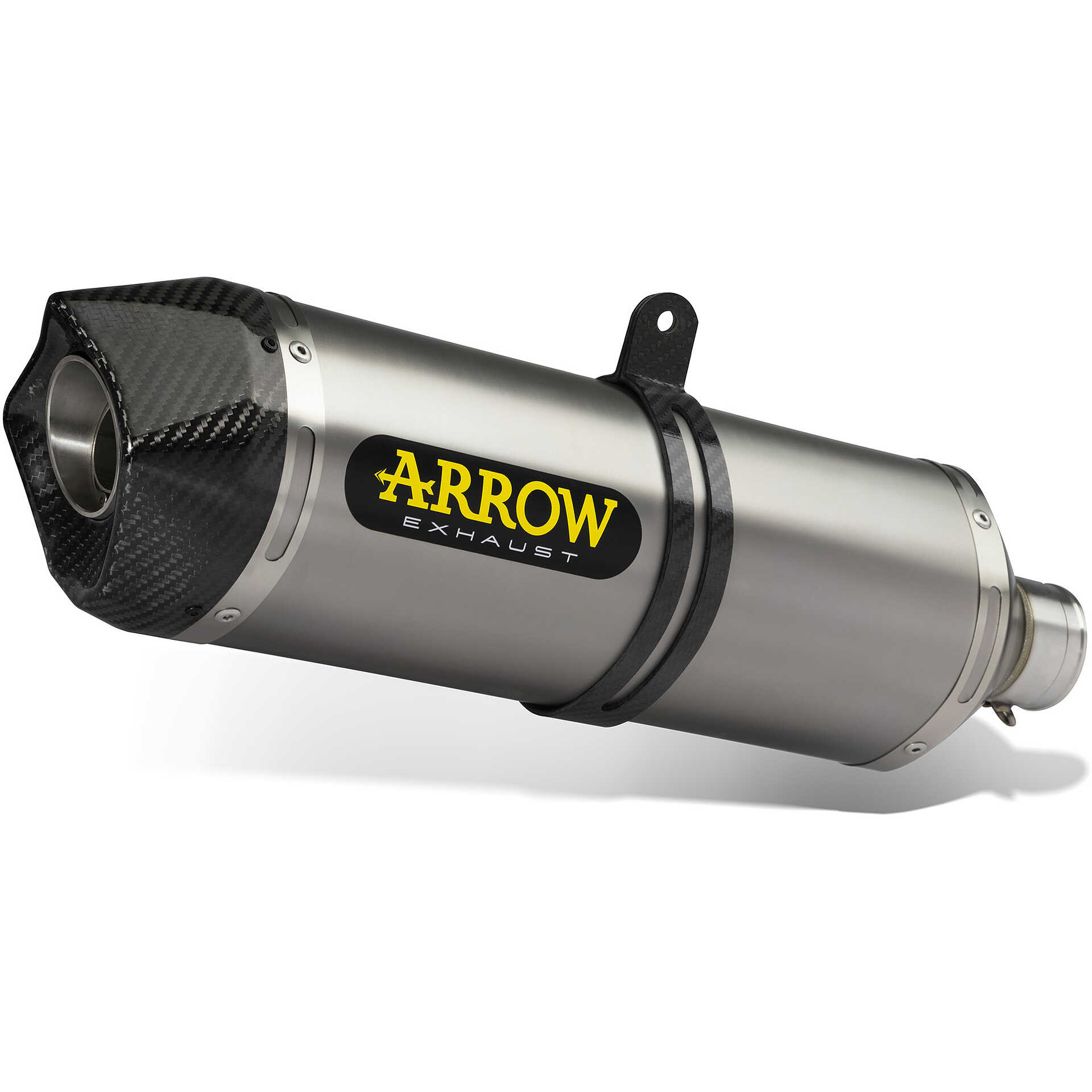

Arrow Race-Tech titanium exhaust with carby end cap for KTM 1290 SuperDuke R (14-19) / 1290 SuperDuke GT (17-24)

Arrow Race-Tech Exhaust Terminal For

KTM

• 1290 SuperDuke R (2014 - 2019)
• 1290 SuperDuke GT (2017 - 2024)

Technical Data Sheet:

• Body material: titanium
• Back case material:carbon
• Silencer internal material: stainless steel
• Frame mounting type: welded mount
• Body length (mm): 300.00
• Graft diameter (mm): 60.00
• Outlet diameter (mm): 50.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 1.8

WARNINGS Please read the technical information note available in the “Documents” section

ECE approval: Yes (approval relating to noise and power control)

N.B: Can be combined with a specific Arrow Header Kit

• 71613KZ - EC approval: Yes
• 71613MI - EC approval: No
• 71692KZ - EC approval: Yes
• 71692MI - EC approval: No
• 71676KZ - EC approval: Yes
• 71676MI - EC approval: No

N.B: Compliance with both regulations is guaranteed only if the original catalytic system is maintained, or an Arrow silencer and catalytic system approved according to the applicable regulations are installed.

Complies with CARB regulations - California Air Resources Board ( - www.arb.ca.gov) The product is considered a “replacement part” for CARB purposes only if the original catalytic converter(s) is not modified or removed and if no modifications are made to the control unit and any exhaust sensors. No Executive Order has been requested or obtained by Arrow or any of its subsidiaries or authorized representatives.

ATTENTION : THE TERMINAL ALSO FITS ON THE ORIGINAL CATALYTIC CONNECTOR

ATTENTION : WHEN INSTALLING ONE OF THE ARROW FITTINGS IT IS NECESSARY TO DEACTIVATE THE EXHAUST VALVE CONTROL

ATTENTION For correct assembly, we recommend going to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT OUR CUSTOMER SERVICE FOR MORE INFORMATION
