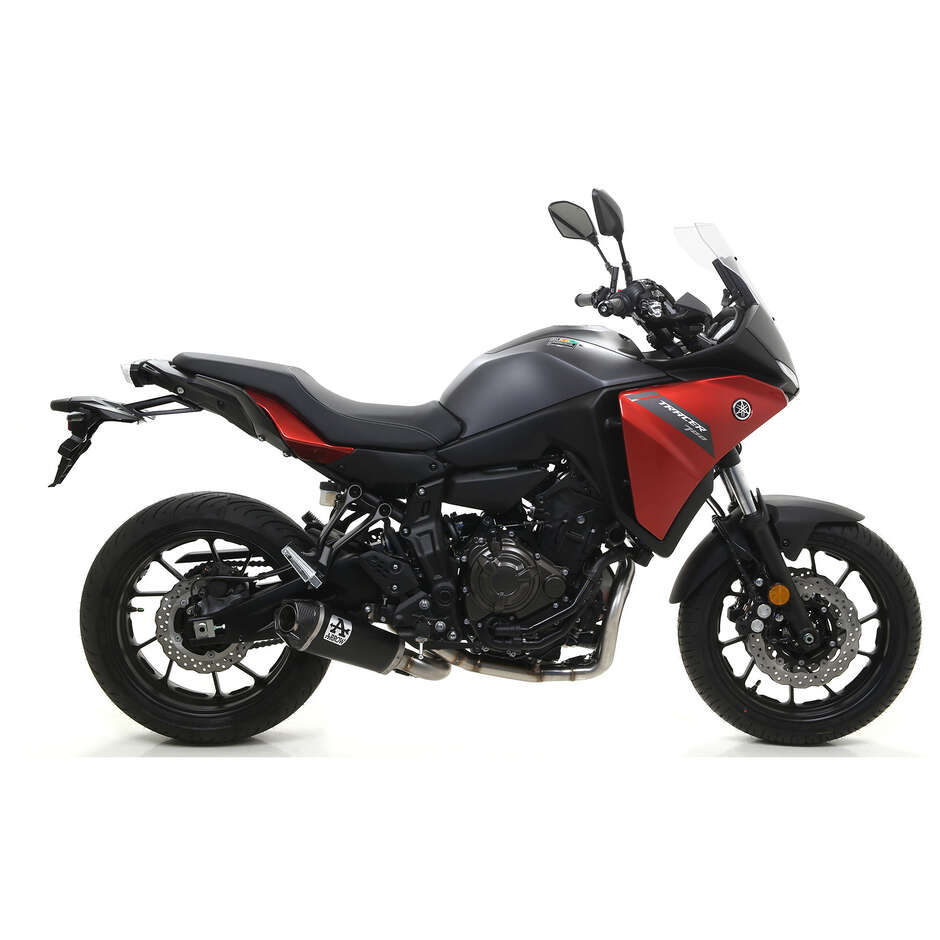

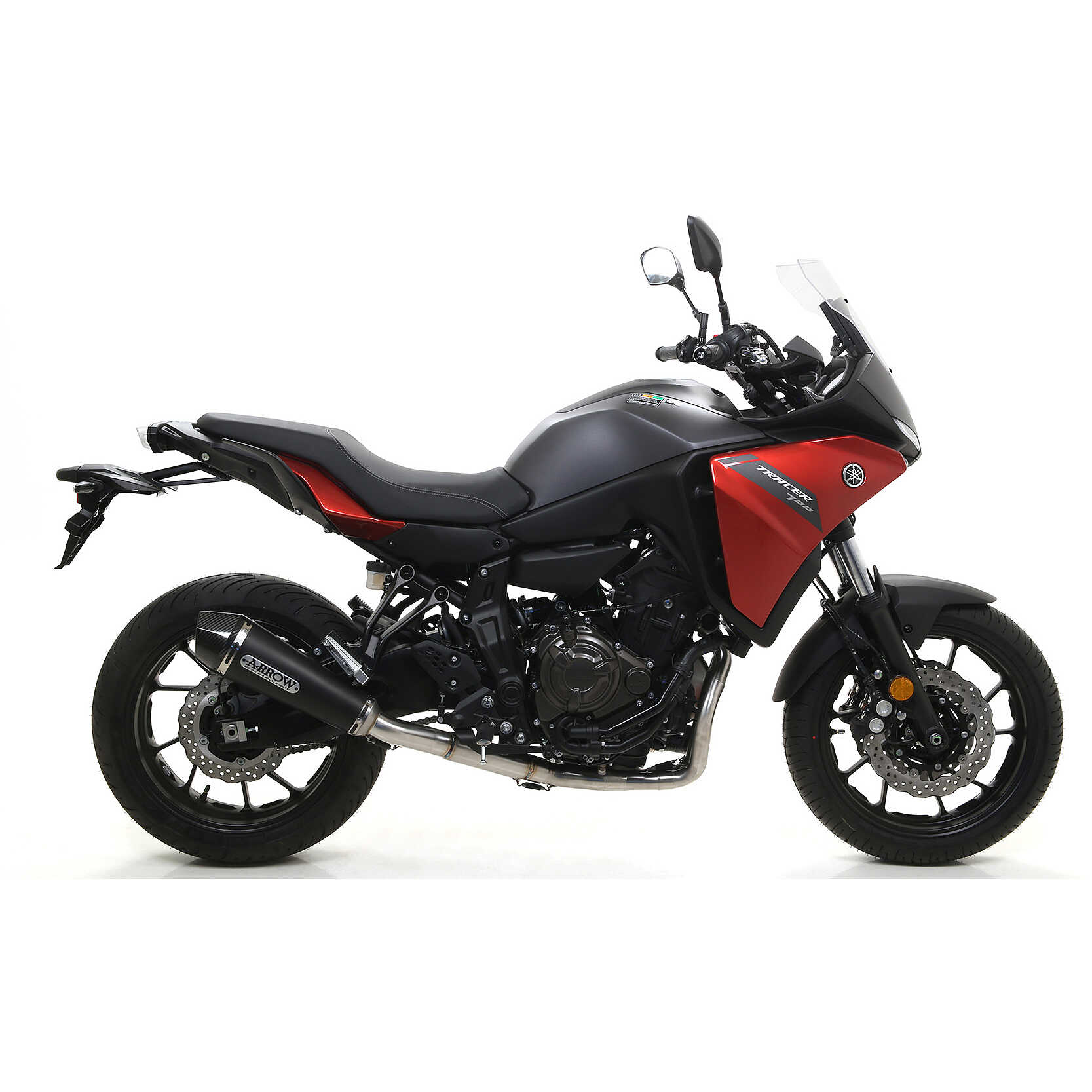

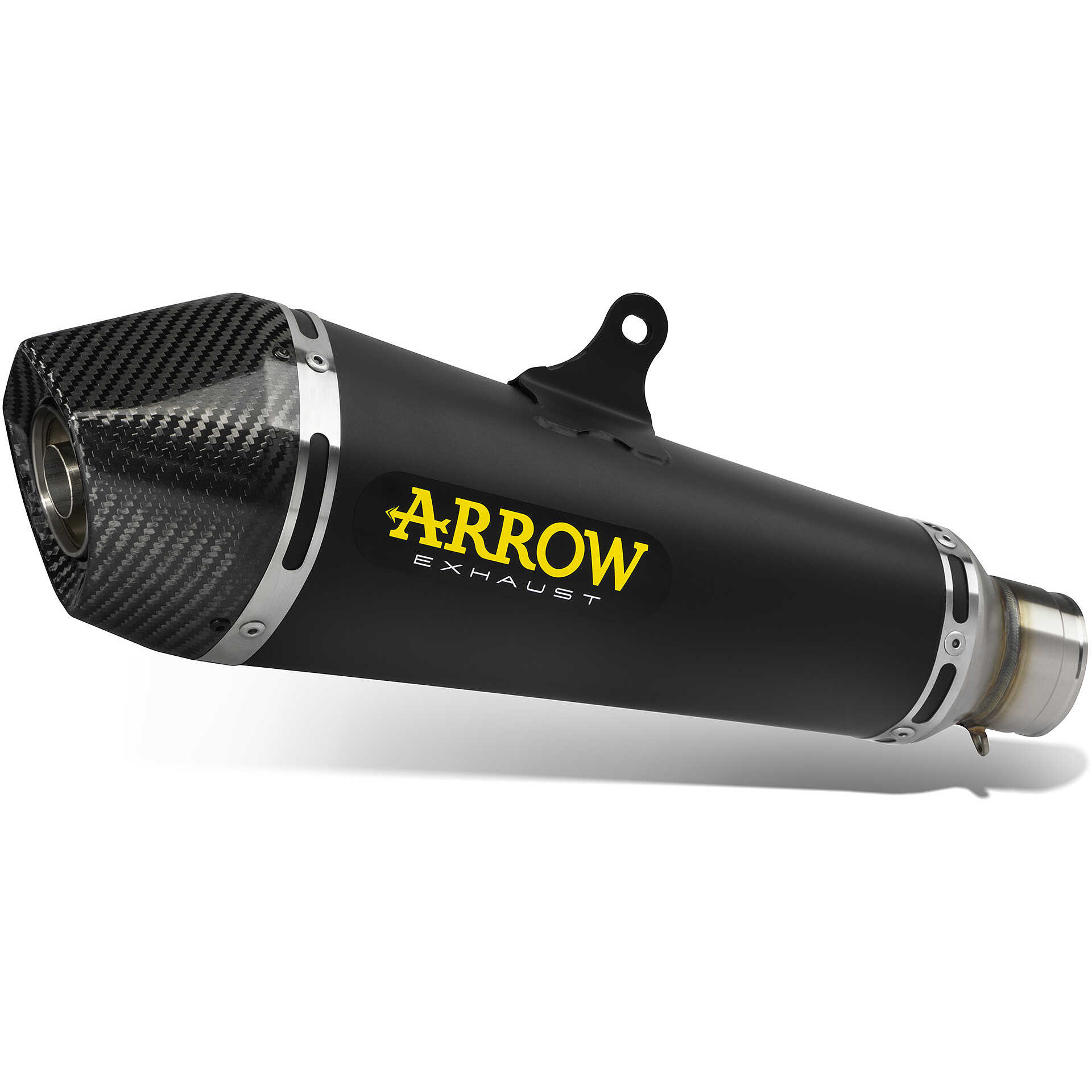

Arrow X-Kone Nichrom Dark Exhaust Muffler for Yamaha MT-07 (14-20) / TRACER 700 (16-19) / TRACER 7 (20-24)

The X-Kone silencers, initially developed for use on some exhausts from the Competition and Competition Full Titanium lines, are now also available for medium-displacement naked and sports bikes, given their popularity and with a new carbon end cap.
The internals are in stainless steel, the silencer body is in satin-finished Nichrom (stainless steel alloy).
Depending on the application, the X-Kone silencers can be installed on original collectors or on Arrow collectors, using a stainless steel fitting and are fixed to the original footrest of the motorbike using a mount welded on the silencer body.
To keep weight and size low, noise levels are controlled by absorption; the terminal weighs approximately 2.2 kg, approximately 30/40% less than the original silencer.
Even installing only the slip-on version improves performance compared to the original. In the complete kit version, with Arrow collectors, the gain in terms of delivery and power is significantly higher.
Installation is quick and does not require changes to mappings or the use of additional control units, however, a CO level check is recommended. The X-Kone is an approved exhaust.

Specific For:

Yamaha

• MT-07 (2014 - 2020)
• Tracer 700 (2016 - 2019)
• Tracer 7 (2020 - 2024)

Technical Data Sheet:

Body material: dark nichrom
Rear pad material: carbon
Silencer internal material: stainless steel
Frame mounting type: welded mount
Body length (mm) 300.00
Graft diameter (mm) 54.00
Outlet diameter (mm) 50.00
dbKiller Presence: Yes
Weight (Kg): 1.6

WARNINGS:Please read the technical information note available in the "Documents" section

ECE approval: Yes (approvals relating to noise and power control)

NB: To be combined with an Arrow Collector Kit:

71605KZ - EC approval: Yes

71605MI - EC approval: No

N.B: Compliance with both regulations is guaranteed only if the original catalytic system is maintained, or an Arrow silencer and catalytic system approved according to the applicable regulations are installed.

ATTENTION: For correct assembly, we recommend that you go to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT US FOR MORE INFORMATION
