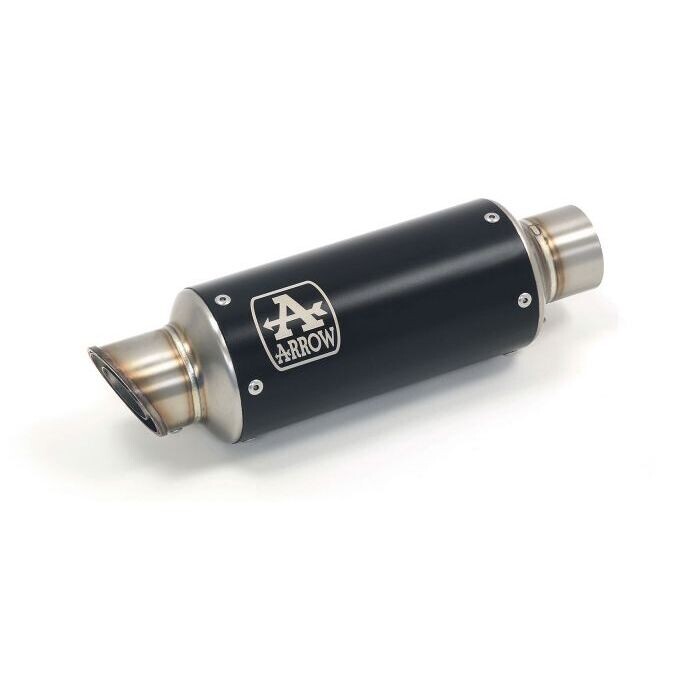

Arrow GP2 Nichrom Dark Exhaust Muffler for KTM DUKE 125 / 390 (21-23)

Arrow GP2 Nichrom Dark Exhaust Muffler For

KTM

• DUKE 125 (2021 - 2023)
• DUKE 390 (2021 - 2023)

Technical Data Sheet:

• Body material: dark steel
• Back case materialstainless steel
• Internal silencer material: stainless steel
• Stainless steel connection material
• Frame fixing type: carbon fiber clamp
• Body length (mm) 200.00
• Graft diameter (mm) 45.00
• Outlet diameter (mm) 58.00
• CO Probe No
• Lambda probe No
• dbKiller Presence Yes
• Weight (Kg) 1.6

WARNINGS Please read the technical information note available in the “Documents” section

ECE approval: Yes(approval relating to noise and power control)

ATTENTION : THE TERMINAL ALSO FIT WITH THE CENTRAL CONNECTOR AND THE ORIGINAL COLLECTORS

NB: Can be combined with a specific Arrow Collector Kit

• 71764MI - EC approval: No
• 71765MI - EC approval: No

N.B: Compliance with both regulations is guaranteed only if the original catalytic system is maintained, or an Arrow silencer and catalytic system approved according to the applicable regulations are installed.

Complies with CARB regulations - California Air Resources Board ( - www.arb.ca.gov) The product is considered a “replacement part” for CARB purposes only if the original catalytic converter(s) is not modified or removed and if no modifications are made to the control unit and any exhaust sensors. No Executive Order has been requested or obtained by Arrow or any of its subsidiaries or authorized representatives.

ATTENTION For correct assembly, we recommend going to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT OUR CUSTOMER SERVICE FOR MORE INFORMATION
