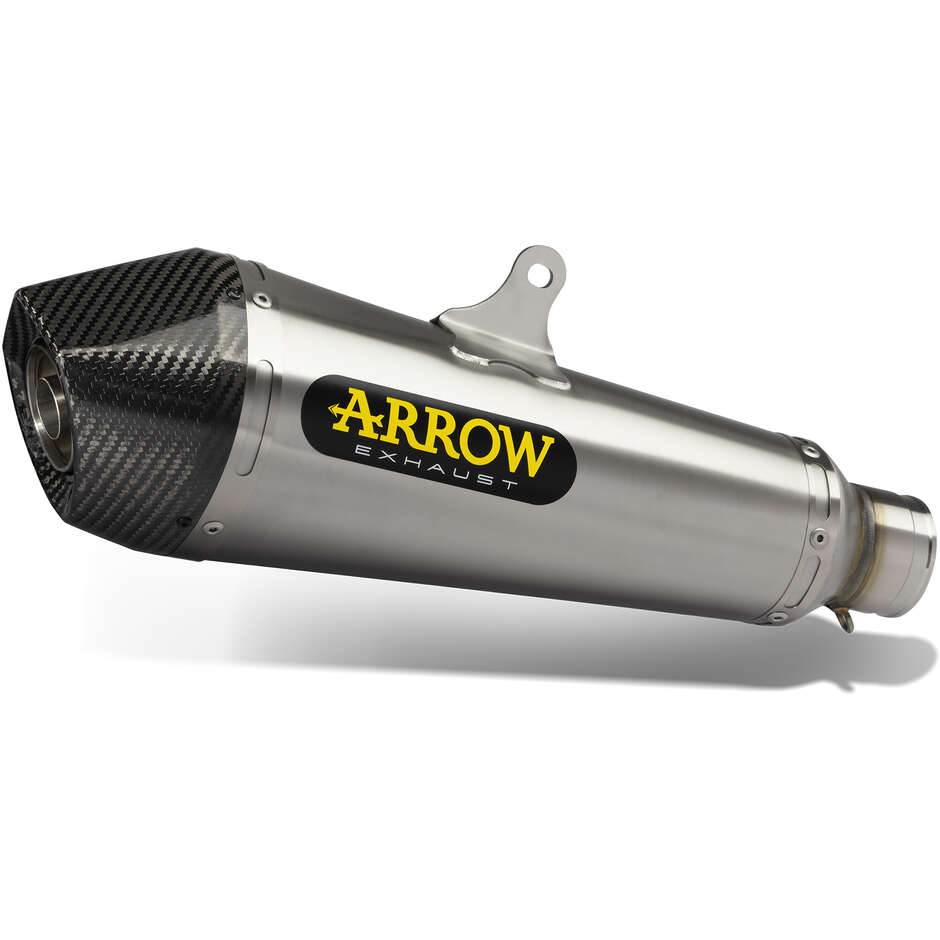

Arrow X-Kone Exhaust Muffler for Yamaha MT-09 (13-20) / TRACER 900 (15-20) / TRACER 900 GT (18-20)

The X-Kone silencers, initially developed for use on some exhausts from the Competition and Competition Full Titanium lines, are now also available for medium-displacement naked and sports bikes, given their popularity and with a new carbon end cap.
The internals are in stainless steel, the silencer body is in satin-finished Nichrom (stainless steel alloy).
Depending on the application, the X-Kone silencers can be installed on original collectors or on Arrow collectors, using a stainless steel fitting and are fixed to the original footrest of the motorbike using a mount welded on the silencer body.
To keep weight and size low, noise levels are controlled by absorption; the terminal weighs approximately 2.2 kg, approximately 30/40% less than the original silencer.
Even installing only the slip-on version improves performance compared to the original. In the complete kit version, with Arrow collectors, the gain in terms of delivery and power is significantly higher.
Installation is quick and does not require changes to mappings or the use of additional control units, however, a CO level check is recommended. The X-Kone is an approved exhaust.

Specific For:

Yamaha

• MT-09 (2013 - 2020)
• TRACER 900 (2015 - 2020)
• TRACER 900 GT (2018 - 2020)

Technical Data Sheet:

• Body material: stainless steel
• Rear pad material: carbon
• Silencer internal material: stainless steel
• Frame fixing type:welded connection
• Body length (mm): 300.00
• Graft diameter (mm): 54.00
• Outlet diameter (mm): 50.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 1.83

WARNINGS: Please read the technical information note available in the "Documents" section

ECE approval: Yes (approvals relating to noise and power control)

N.B: To be combined with an Arrow Header Kit:

71620KZ - EC approval: Yes (approval relating to the control of emissions into the atmosphere)

71620MI - EC Approval: No (Racing Version)

NB: The approval is valid only for the specified vehicle types and subsequent updates

N.B: Compliance with both regulations is guaranteed only if the catalytic system is maintained

original, or install an Arrow silencer and catalytic system approved according to

the applicable legislation

ATTENTION: For correct assembly, we recommend that you go to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT US FOR MORE INFORMATION
