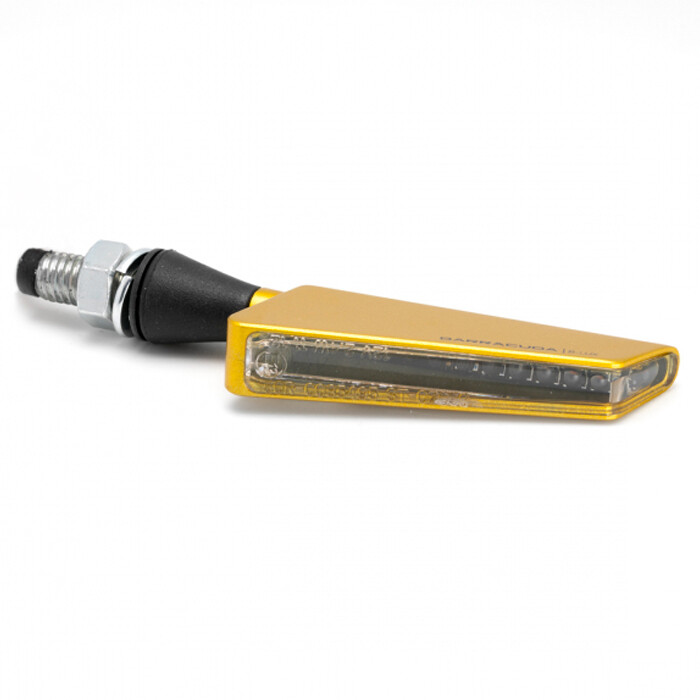

Barracuda SQ-LED B-Lux Gold Approved Sequential LED Motorcycle Arrows

Barracuda SQ-LED B-Lux Approved Sequential LED Motorcycle Arrows

Data sheet:

• Material: Aluminum
• Technology: LED
• Flashing: SEQUENTIAL
• Dimensions: 79/60 (with stem / arrow only) x 24 mm
• Colour gold
• Sold in pairs

To complete the AD HOC INSTALLATION we recommend the purchase of related products such as:

• ARROW ADAPTER (necessary for mounting the indicators on the bike structure);
• CABLE ADAPTERS , (necessary for connecting the indicators to the original system without the need to make changes to the original cables or connectors of the motorcycle);
• RESISTANCES:

1. Motorcycles with a 6 watt system need to adjust the flashing and operation of RESISTORS of 10 watts (1res. X 2 Indicators / per side) or alternatively compatible RELAY.
2. The motorcycles with a 10 watt system need to adjust the flashing and operation of RESISTORS of 10 watts (x1res. x 1 Indicator) or alternatively compatible RELAY.
3. The motorcycles with a 21 watt system need to adjust the flashing and operation of 21 watt RESISTANCES (1res. X 2 Indicators / per side) or alternatively compatible RELAY.
4. The motorcycles with the original LED system require a technical analysis to evaluate the necessary for operation (resistance or RELAY).
