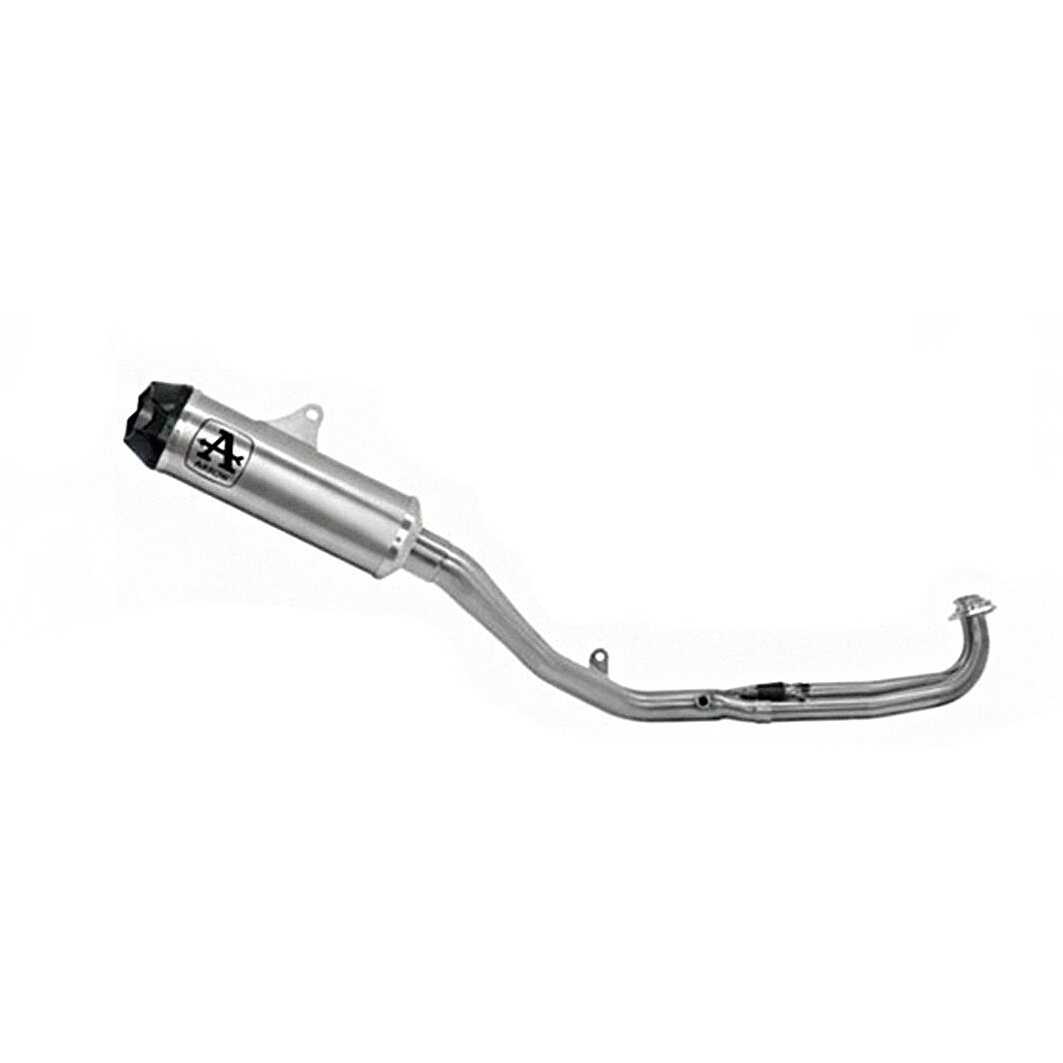

Complete racing exhaust with Indy Race titanium silencer for Yamaha TMAX 560 (25)

The Indy-Race line was created for specific applications, especially under-seat applications, where Arrow's other standard shapes are more complex to use. Its new cross-section, reminiscent of the oval found on some Indy racetracks (hence the name), is more flattened than the others and maintains a good internal volume to be exploited to reduce noise emissions.
The internal components are made of stainless steel and assembled using TIG and MIG welding, while the lightweight muffler body is available in titanium, aluminum, or carbon fiber. Some installations are available with a carbon fiber end cap.
The Indy-Race line exhausts are also available in an approved version, depending on the application.

Specific For:

Yamaha

• TMAX 560 (2025)

Technical Data Sheet:

• Body material: titanium
• Back case material:carbon
• Silencer internal material: stainless steel
• Frame mounting type: welded mount
• Fitting material: stainless steel
• Collector material: stainless steel
• CO Probe: No
• Lambda probe: Yes
• dbKiller Presence: Yes

WARNINGS: Please read the technical information note available in the "Documents" section

EC approval: No

ATTENTION: INSTALLING THE ARROW RACING EXHAUST CAN CAUSE ENGINE FAILURE ERROR MESSAGE

ATTENTION: For correct assembly, we recommend that you go to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT US FOR MORE INFORMATION
