Kit 2 Quad Lock Spacers QLP-MOT-SR 10mm

The Quad Lock® spacer kit increases the space between the base and the mounting head of motorcycle and scooter handlebar and mirror smartphone mounts, improving the device's positioning relative to other vehicle components. It includes two 10 mm spacers, which can be used individually or stacked to achieve the desired height. Made of fiberglass-reinforced nylon and supplied with stainless steel screws, they are compatible with the Quad Lock 360™ modular system. The kit allows you to customize the mount configuration while maintaining the original mounting system.

Technical Data Sheet:

Main Features

• Quad Lock® Index Mount spacer kit for motorcycle and scooter smartphone holders.

• Allows you to increase the distance between the mounting base and the coupling head.

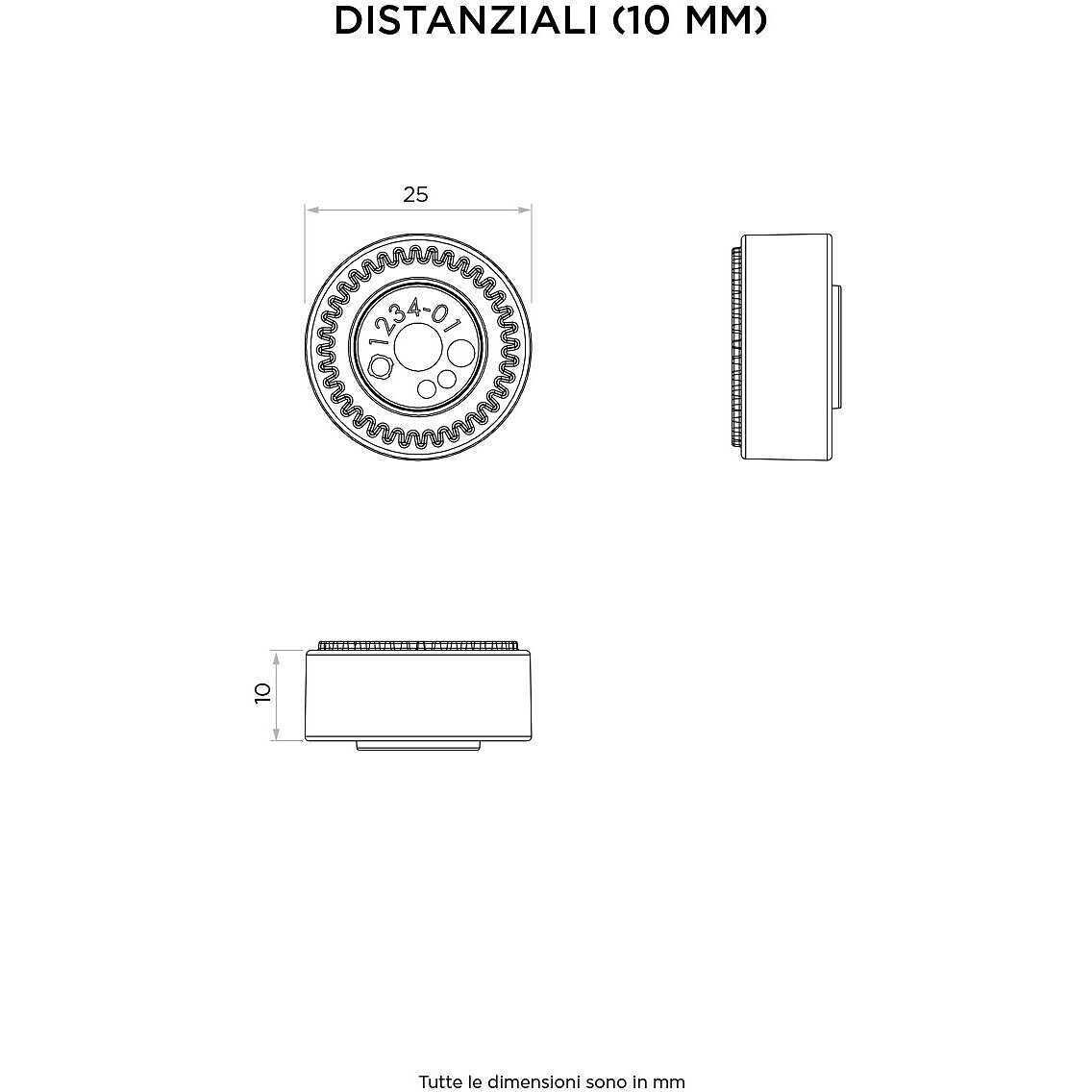

• Includes two 10mm spacers each.

• Possibility of using a single spacer or two overlapping spacers to obtain an overall lift of 20 mm.

• It allows you to adapt the height of the support to your installation needs.

Materials and Construction

• Spacers made of fiberglass reinforced nylon.

• Stainless steel fixing screws.

• Mounting system with mechanical screw fixing.

Compatibility

• Compatible with Quad Lock® Motorcycle Handlebar Mounts.

• Compatible with Quad Lock® Mirror Mounts.

• Compatible with Quad Lock 360™ modular system components.

• Mounting base and attachment head not included, available for purchase separately.

Installation

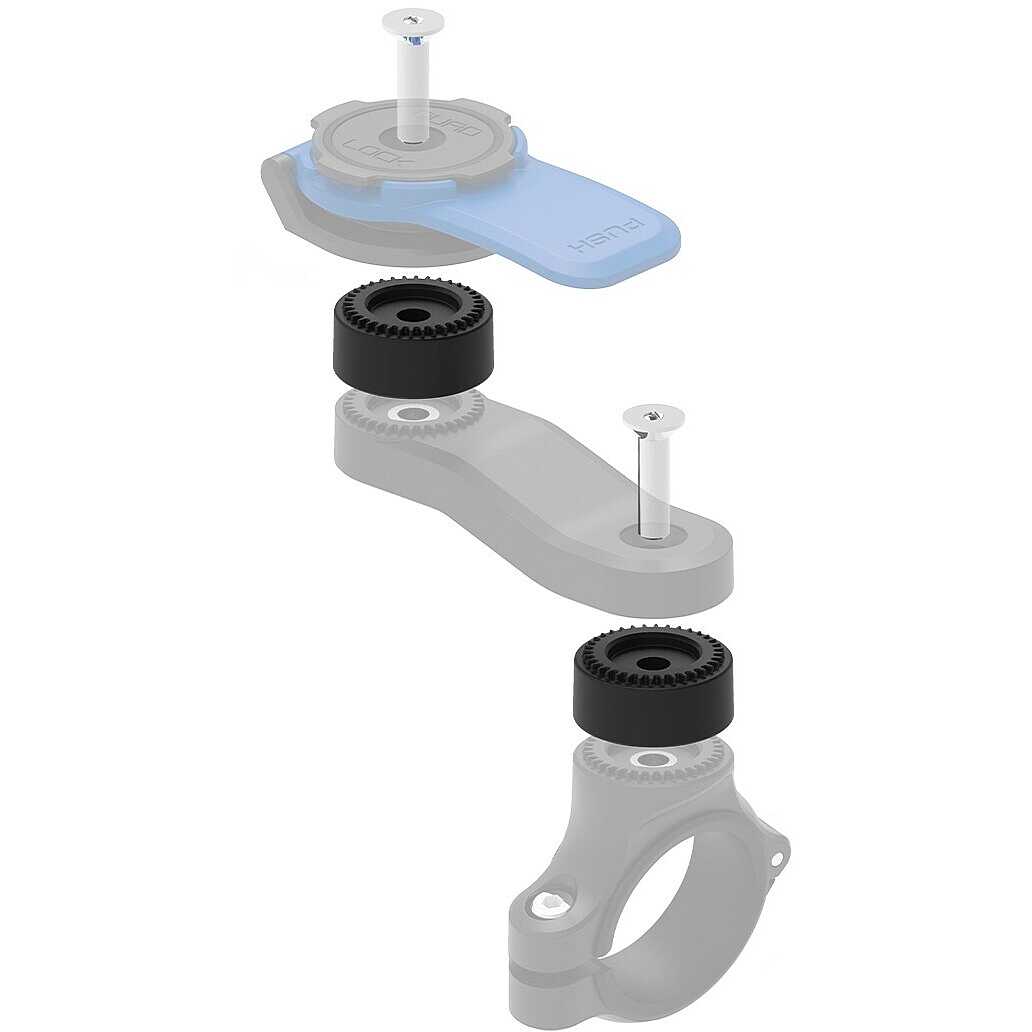

• Possibility of installing one or two spacers based on the desired height.

• The included screws are sized for installing a single spacer.

• To overlap two spacers, you need an additional compatible screw set, which can be purchased separately.

• Fixing to the support structure using M5 screws.

Equipment Included

• 2 x 10mm Quad Lock® Index Mount Spacers.

• 1 M5 x 30 mm screw.

• 1 M5 x 35 mm screw.
