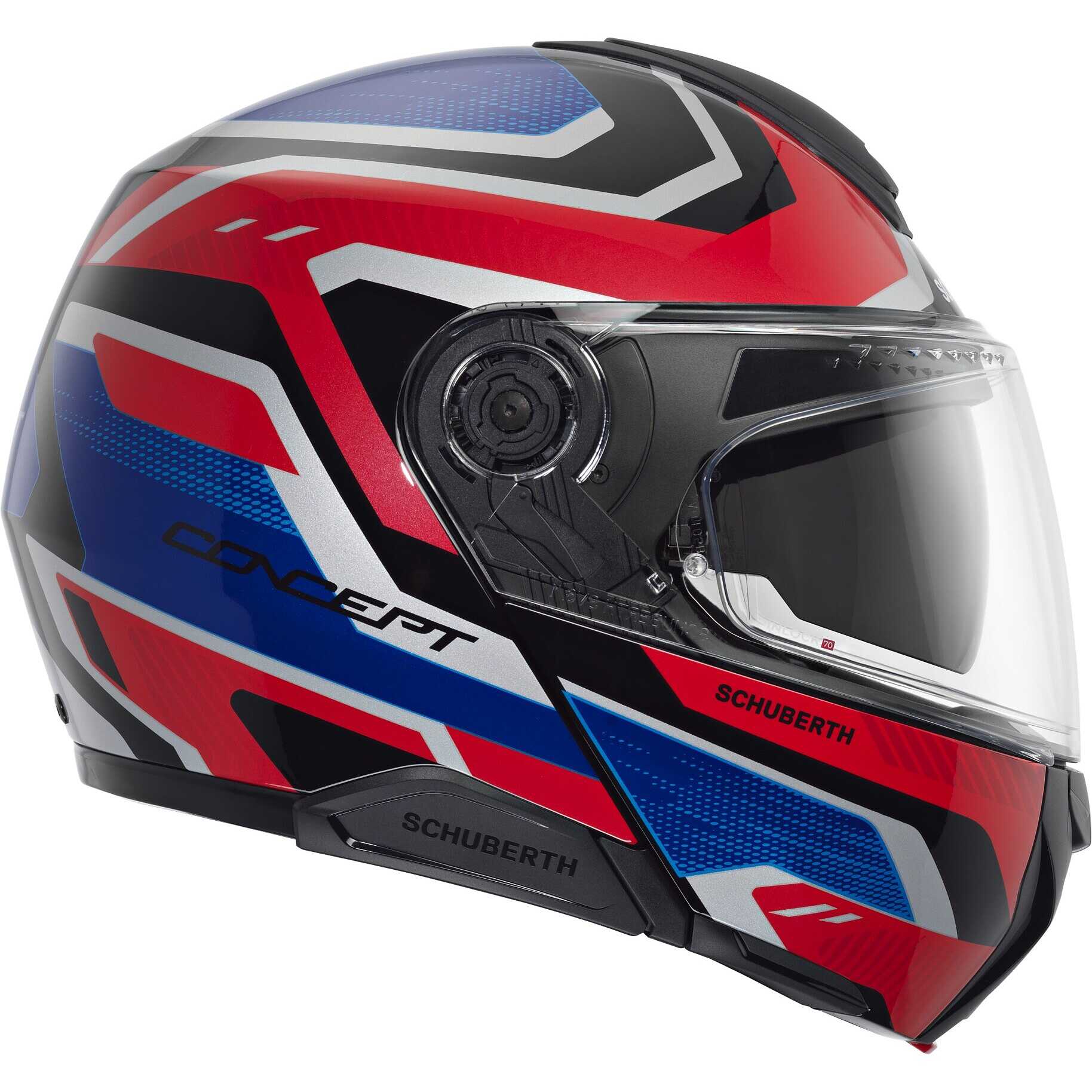

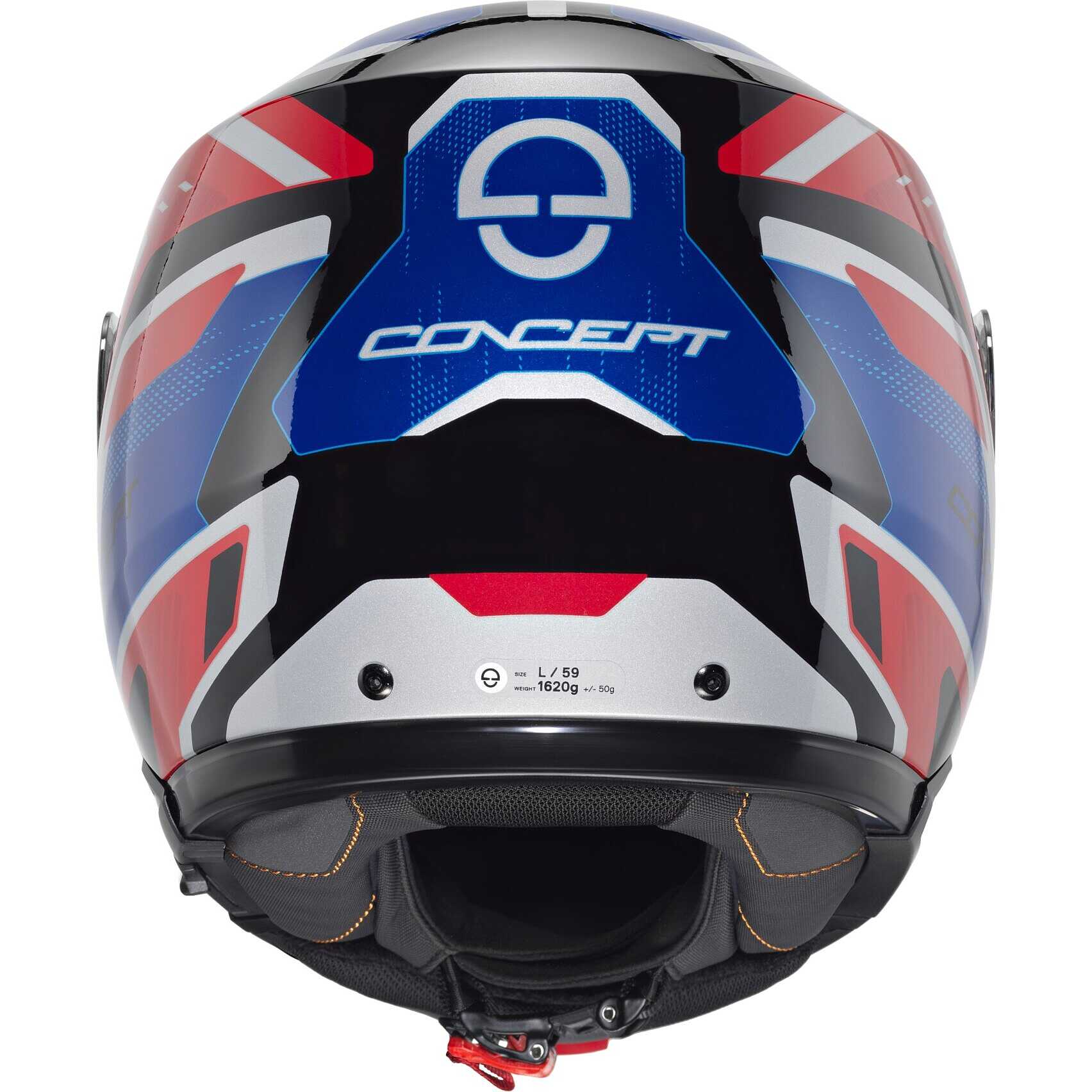

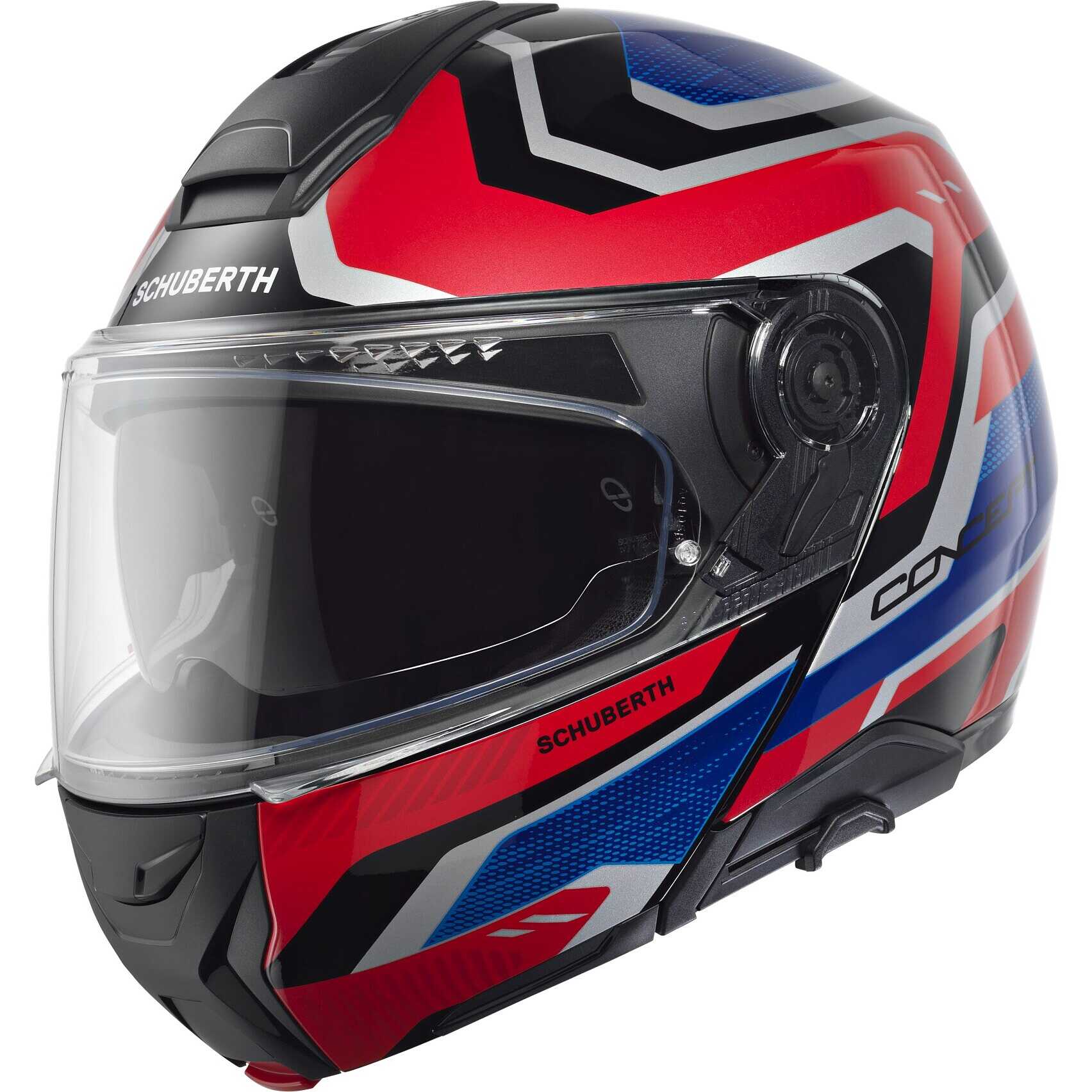

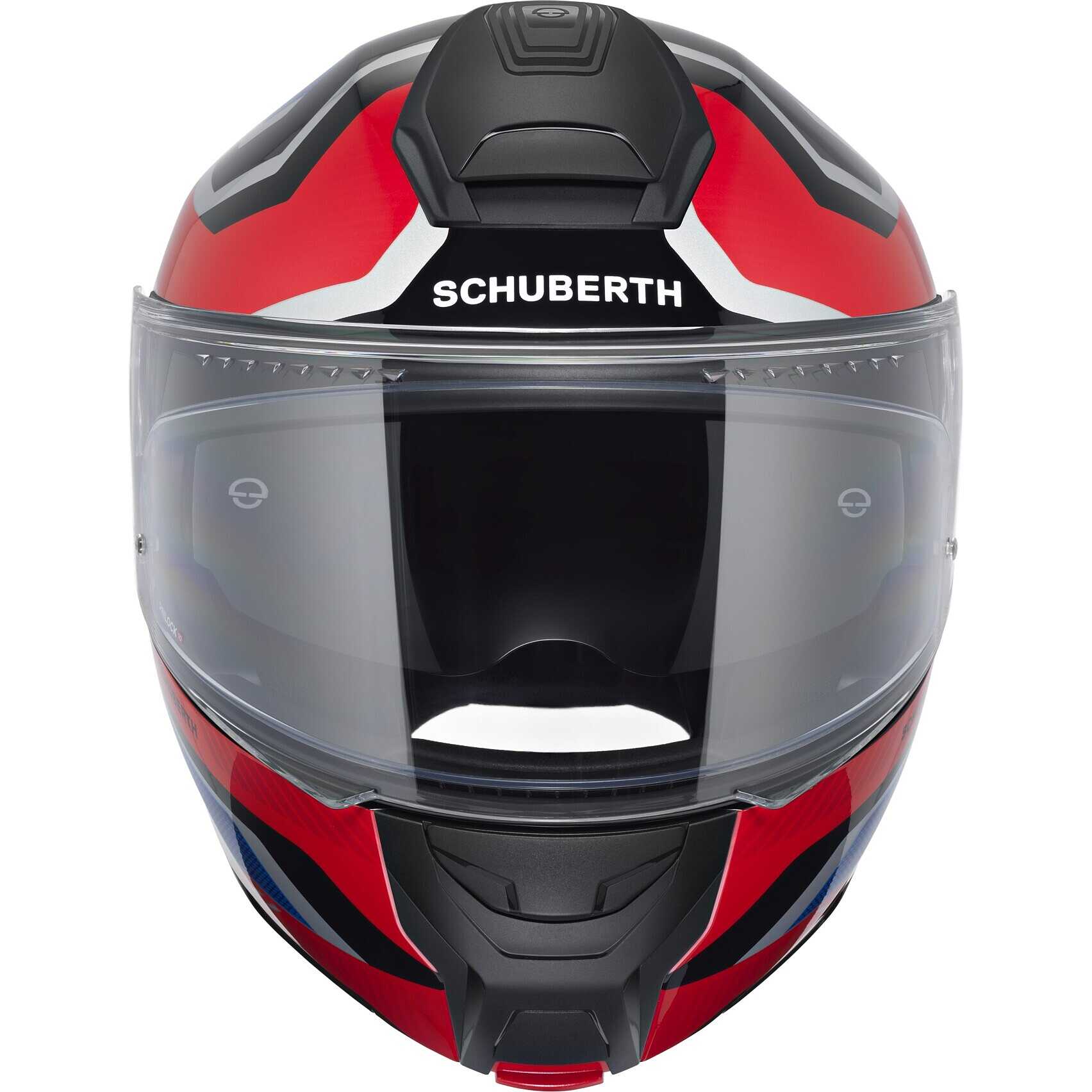

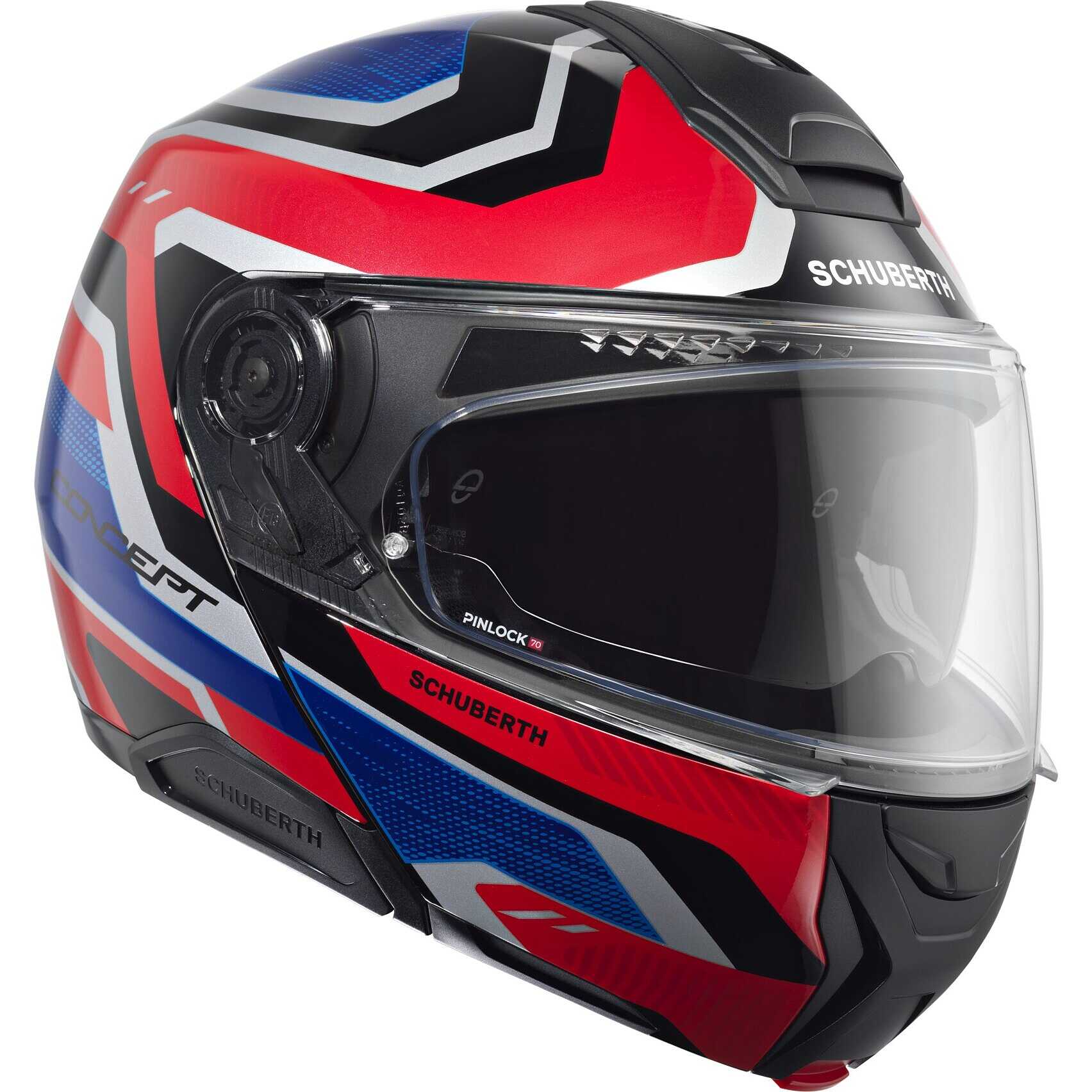

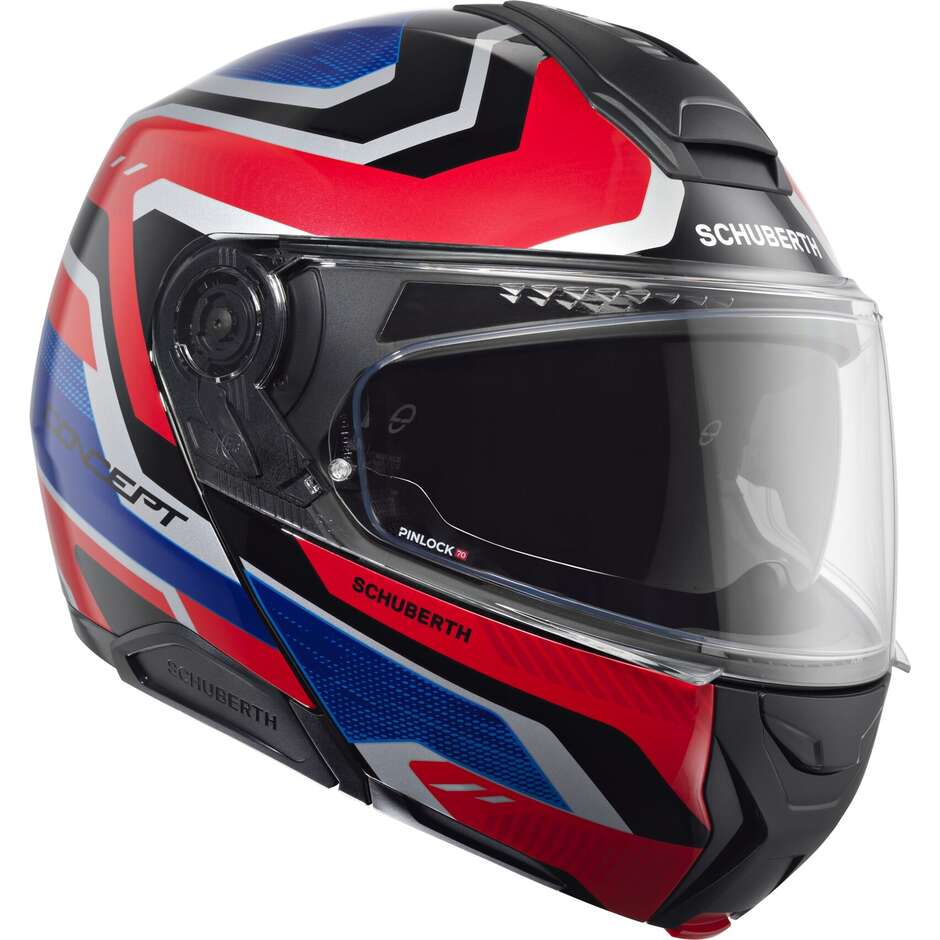

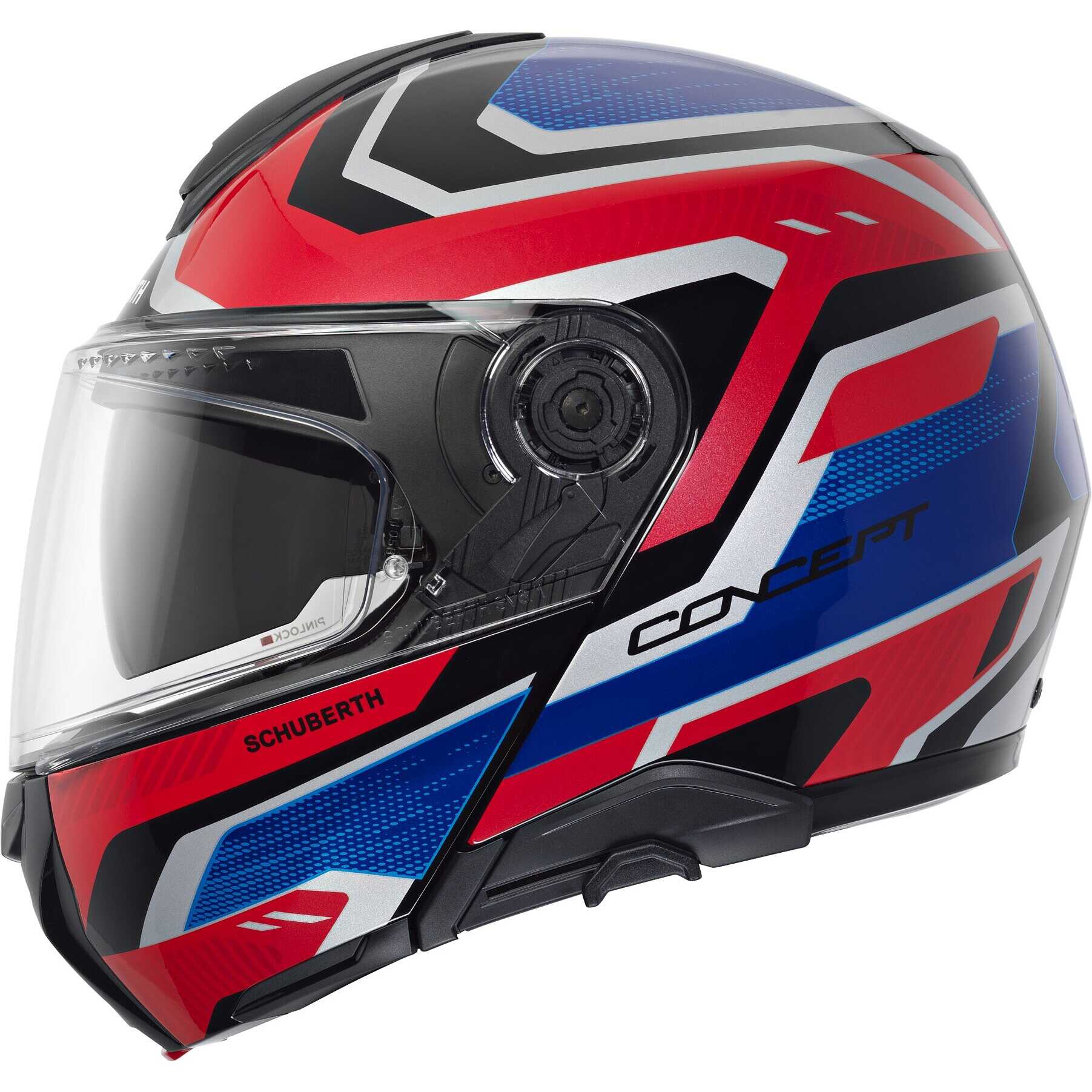

Modular Motorcycle Helmet P/J Schuberth CONCEPT KINETIC Blue

The SCHUBERTH Concept is a modular sport touring helmet designed to offer the build quality, safety, and comfort of the SCHUBERTH range in a versatile package, suitable for everyday riding and long journeys. Handcrafted in Germany, it features a fiberglass shell produced using patented Direct Fiber Processing (DFP) technology, combined with a dual-density EPS inner structure for improved shock absorption. The dual ECE 22.06 P/J certification allows the helmet to be used both with the chin guard closed and in open-face configuration, with the chin guard raised and properly locked. One of its distinguishing features is the ECE 22.06 UA (Universal Accessories) certification, which allows the installation of compatible aftermarket communication systems, offering greater freedom in choosing an intercom. Developed in the SCHUBERTH wind tunnel, the Concept combines optimized aerodynamics with high aeroacoustic comfort. The optical class 1 visor with pre-installed Pinlock 70 anti-fog lens, the patented Visor Memory mechanism, and the integrated sun visor with V-Lock system ensure practicality and visibility in various riding conditions. Adjustable multi-channel ventilation and a seamless, customizable interior certified to OEKO-TEX Standard 100 complete a package designed to ensure comfort, protection, and functionality on every journey.

Technical Data Sheet:

Shell and construction

• Type: Modular Sport Touring helmet with flip-up chin guard

• Fiberglass outer shell made with patented SCHUBERTH Direct Fiber Processing (DFP) technology

• Construction developed to combine impact resistance and weight containment

• Internal shell in multi-zone double density EPS, with density differentiated in the central and lateral part

• Internal structure designed to improve the absorption and distribution of impact forces

• Handcrafted in Germany

• 2 outer shell sizes:

  • Shell 1: XXS (51), XS (53), S (55), M (57), L (59)

  • Cap 2: XL (61), 2XL (63), 3XL (65)

Safety and chin guard

• ECE-R 22 approval.06 with double P/J certification

• Configuration P: use with closed and protective chin guard

• Configuration J: use with chin guard raised and locked in the appropriate position

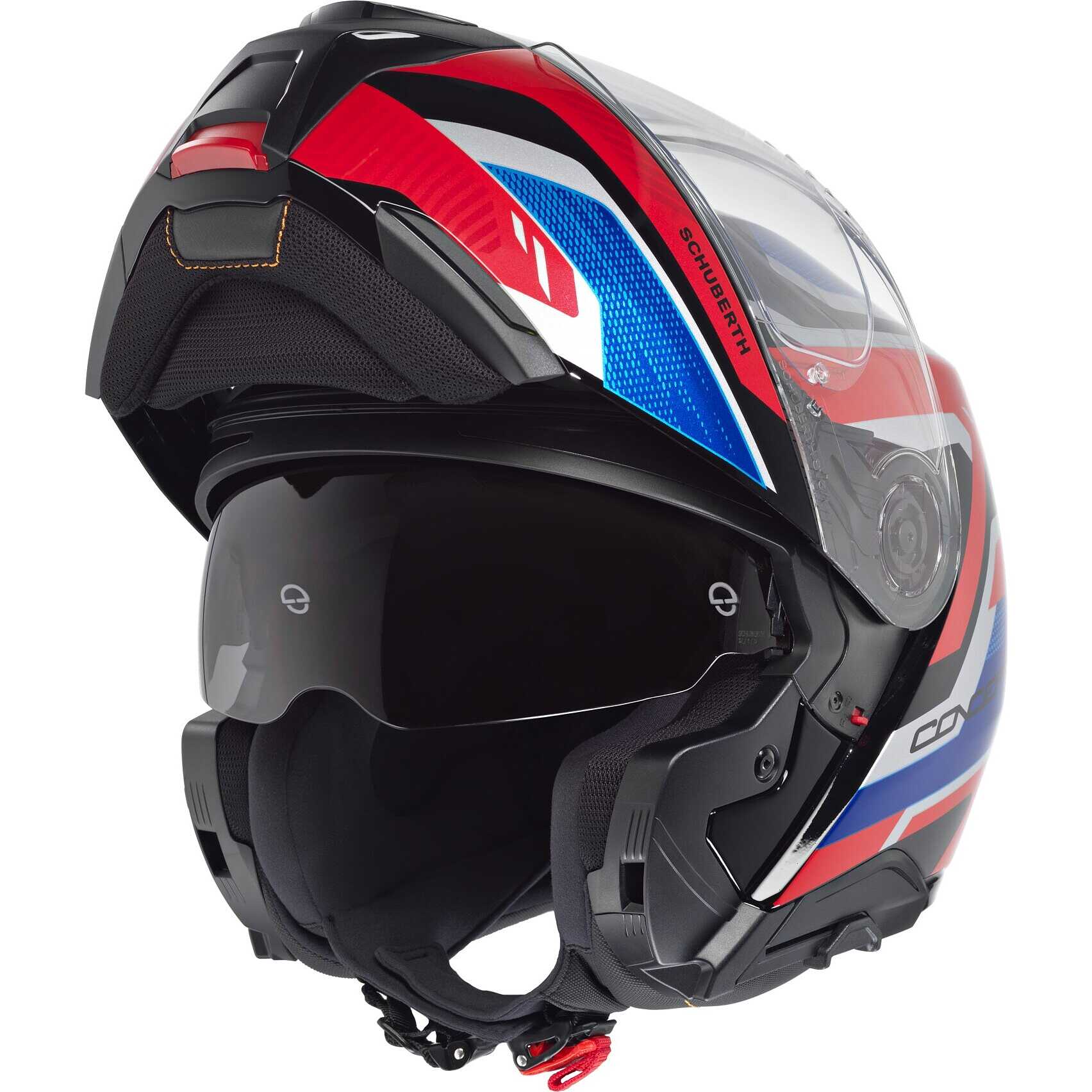

• Folding chin guard with central button opening

• Side locking system to keep the chin guard in the open position while riding

• Closing mechanism with double lateral hook

• AROS System (Anti Roll Off System) to prevent accidental slipping of the helmet

• Optimized chinstrap positioning to improve comfort in the throat area

• Micrometric ratchet chin strap closure, adjustable and with quick release

• To drive with the chin guard open, it is necessary to activate the appropriate safety lock

Weight

• Sizes XS (53) and S (55): 1,660 g ± 50 g

• Sizes M (57) and L (59): 1.620 g ± 50 g

• Sizes XL (61), 2XL (63) and 3XL (65): 1.810 g ± 50 g

• Weight of size XXS (51) not specified in the official datasheet

• Weights declared by the manufacturer according to the size of the shell

Visor

• Clear main visor with anti-scratch surface treatment

• Wide field of vision to improve visibility while driving

• Pinlock 70 anti-fog lens pre-installed and included

• Double screen Pinlock system with insulating air chamber to prevent condensation

• Adjustable eccentric pins to optimize the fit of the anti-fog lens

• Patented Visor Memory System mechanism that memorizes the position of the visor when opening the chin guard and restores it when closing it again

• City Position mechanism with intermediate opening position to promote air exchange at low speeds

• Patented turbulators on the upper edge of the visor to limit whistling and aerodynamic noise

• EasyChange system for quick visor replacement without tools

Sun visor

• Integrated and retractable internal sun visor

• Anti-scratch surface treatment and UV protection

• SCHUBERTH V-Lock mechanism with visor adjustment to 2 different heights

• Operation via external slider on the left side of the helmet, can also be used while wearing gloves

• Operation independent of the position of the main visor

• Visor replaceable without tools

Ventilation

• Multi-channel ventilation system designed to promote air exchange inside the helmet

• Front air intake on the chin guard with adjustable opening and closing

• Ventilation system with protection against the entry of insects

• Adjustable upper air intake in 3 positions: closed, partially open and fully open

• Ventilation channels integrated into the inner shell to distribute air over the top of the head

• Internal padding designed to promote direct contact of the air with the surface of the head

• Internal summer and winter adjustment flaps to adapt the air flow to climatic conditions

• Possibility to reduce or divert incoming cold air during the colder seasons

Aerodynamics and aeroacoustics

• Shell and interior developed and optimised in the SCHUBERTH wind tunnel

• Aerodynamic profile designed to improve stability at high speeds and limit the lifting of the helmet

• Structure designed to reduce turbulence and improve acoustic comfort during travel

• Patented turbulators on the visor to limit aerodynamic whistling when riding with the visor open

• Acoustic collar to reduce air infiltration from the lower part of the helmet

• Additional removable wind deflector, secured with a Velcro system

• Aeroacoustic performance varies depending on the motorcycle, fairing, of the motorcyclist's build and riding position

Interior and comfort

• Seamless ergonomic padding for improved comfort and fit

• OEKO-TEX Standard 100 certified interior coverings

• Soft, breathable materials to help regulate heat and humidity

• Internal fabrics with properties antibacterial and anti-odor

• Head padding designed not to obstruct ventilation channels

• Ergonomic cheek pads to improve helmet stability while riding

• Removable, replaceable and washable interiors

• Possibility to customize the fit through alternative internal padding

Visibility

• Black reflective inserts on the neck roll and front area of the helmet

• Reflective elements on the wind deflector to improve visibility when riding with the chin guard open

• Reflective SCHUBERTH logo on the back and lettering on the front on the single-colour versions

• Possibility to apply additional reflective stickers in countries where they are required

Communication system

• ECE-R 22.06 UA (Universal Accessories) approval for the installation of compatible aftermarket communication systems

• Internal predisposition of the EPS shell and padding for the installation of the intercom

• Compatibility with communication systems compliant with ECE-R 22 approval.06 UA

• Requirements for installing the intercom:

  • Unit communication with adhesive fixing

  • Side mounting in the area designated by the manufacturer

  • Speakers with a maximum diameter of 45 mm

  • Microphone positioned in the designated area

  • Wiring inserted into the specific channels of the EPS internal shell

• The installation of communication systems that do not comply with UA approval invalidates the ECE 22 approval.06 of the helmet

• Intercom system, speakers and microphone available for purchase separately

Equipment and accessories

• Clear, scratch-resistant main visor

• Pre-installed Pinlock 70 anti-fog lens

• Integrated sun visor

• Additional removable wind deflector

• Removable and washable interior

• Helmet storage bag

Approval

• ECE-R 22.06

• Double P/J homologation

• ECE-R 22.06 UA (Universal Accessories) for compliant aftermarket communication systems

Optional / Spare parts:

• Visors (Size XS-L)
• Visors (Size XL-3XL)
• Pinlock (Size XS-L)
• Pinlock (Size XL-3XL)
• Sun Visor (Size XS-L)
• Sun Visor(Size XL-3XL)
