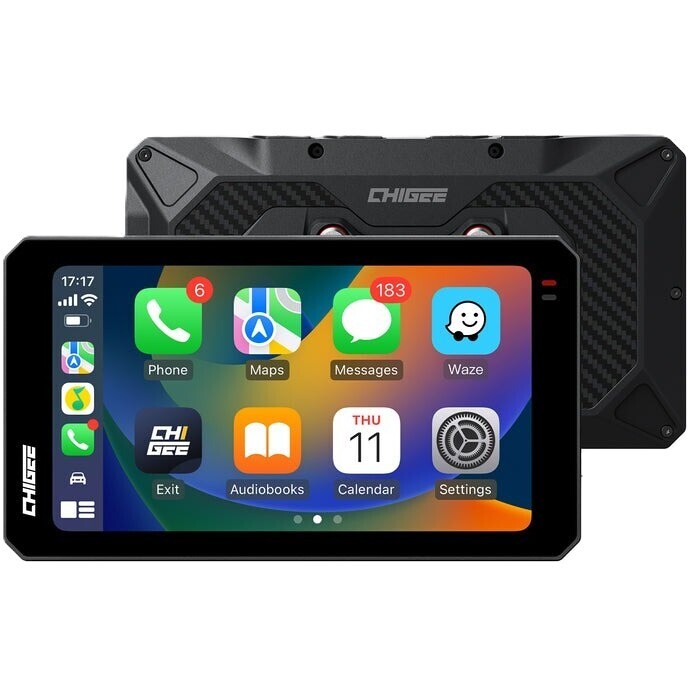

Moto Chigee AIO-6 MAX Multimedia Display - MFP0171

The AIO-6 Max features an ultra-bright 6-inch 2300-nit display with dual-sided automotive-grade backlighting for clear visibility in any condition. Powered by a dual-core A53 processor and CHIGEE OS 2, it delivers smooth and reliable performance. Born to drive, built for adventure, with more accessory options than ever before.

Characteristics :

• Compatible with CarPlay and Android Auto.
• Rugged construction for increased impact resistance.
• Water resistant with IP69k waterproof rating.
• Supports extreme temperatures, from -20ºC to 60ºC.
• Screen lock button.
• Touch screen compatible with motorcycle gloves.

Device Specifications :

• 6 inch touch screen.
• HD resolution 1280 x 720 IPS.
• Automatic brightness.
• Maximum brightness 2300 Nits.
• Frame rate 60 FPS.
• Automatic reconnection, once configured, when the motorcycle starts.
• WLAN: 2.4G / 5 GHz
• Bluetooth 5.0 allows for quick connection of your phone and headphones to your device, allowing you to access various applications at any time.
• Answer calls and talk hands-free.
• Access the real-time map and easily follow the route.
• Music playback
• Voice control (iOS only) and manual search without taking off your gloves.
• Message notifications: Supports commonly used apps (iOS only)
• Rated input voltage: 12-18V DC.
• Dual Recording Memory: Built-in 32GB memory expandable up to 256GB.
• ARM Cortex-A53 1.2Ghz Dual-Core 64bit processor.
• 4GB RAM.
• CGOS (Linux) operating system.
• OTA (Over The Air) wireless updates.

Expandability :

• Allows installation of 1080p front and rear cameras (not included).
• Compatible with RC PRO remote control (optional).
• Compatible with RC CAN and RC LIN remote controls for BMW (optional).
• Compatible with Chigee TMPS tire pressure sensors (optional).
• Compatible with Chigee OBD data module (optional).
• Compatible with Chigee Dashcam / BSD camera kit (optional).
• Modular attachment system compatible with removable base and BMW Chigee removable base (optional).
• Read native BMW data, tire pressure and control with Wonder Wheel using the removable BMW Chigee base (optional).

Other features :

• Compatible with handlebars with 22-32mm diameter tubes (handlebar mount included).
• Dimensions: 161 x 90.52 x 22 mm (W x H x D)
• Weight: 365g.

Multimedia:

Supports Insta360 (X5, X4, ACE, ACE PRO2) & Gopro (GoPro 10 and above) & DJI (Osmo Action 4, Osmo Action 5 Pro, Osmo 360).

CHIGEE and Insta360 have collaborated to create an intelligent vision control system for motorcyclists.
With real-time preview and camera controls now featured on the AIO-6’s display, you can effortlessly record, pause or take stills – no more shooting blindly.
Enjoy a third-person view of your vehicle with greater control and a smoother shooting experience.

Include :

• AIO-6 MAX Display ×1
• 17mm ball head ×1
• Type-C main wiring harness ×1
• Reducing rings ×1 set
• 22-32mm Mounting Bracket ×1
• Power cord ×1
• Nylon Cable Ties ×5
• Disassembly tools ×3
• Velcro straps ×2
• Connecting buckles ×2
• Stickers ×2
