Quad Lock QLA-PBX Smart 12V to USB Weatherproof Adapter
The Quad Lock® Weatherproof 12V to USB Smart Adapter comes with everything you need to power your Quad Lock® Weatherproof Wireless Charger Head on your boat, caravan, or motorcycle.
DIFFERENT IGNITION SETTINGS

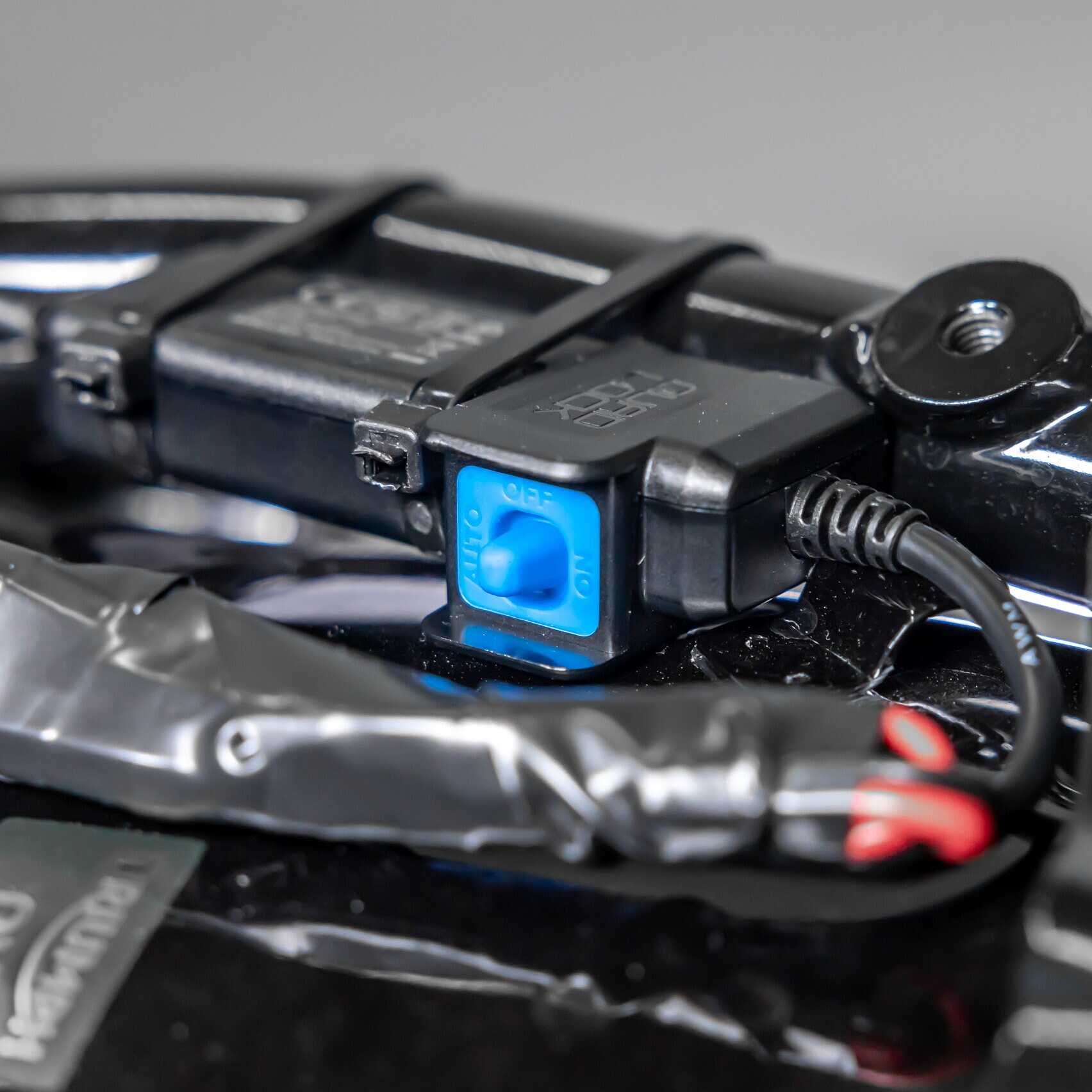

The smart adapter can be easily set to On, Off, and Auto. Use the On function when connecting the smart adapter to a constant 12V-24V power supply, such as on a boat or caravan.

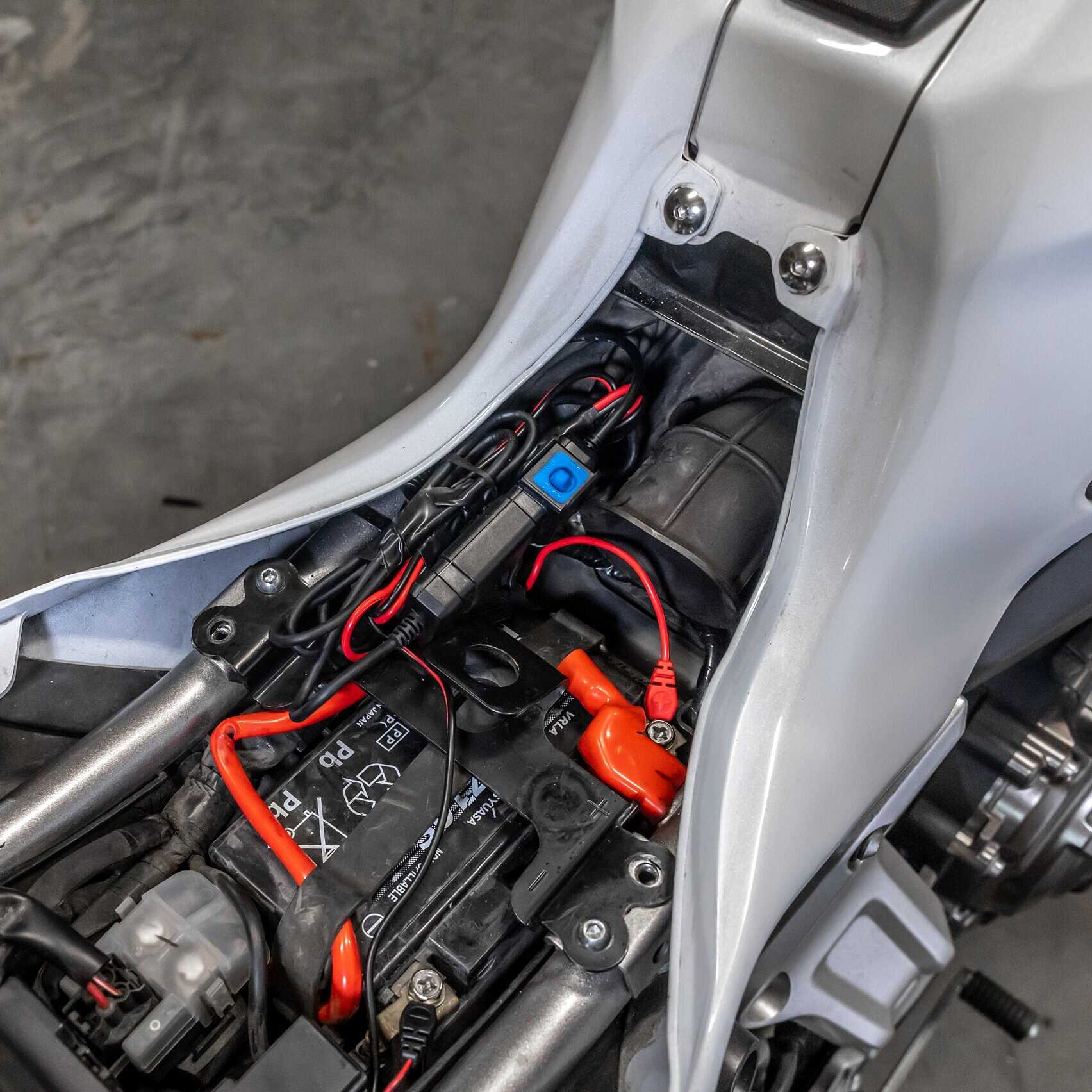

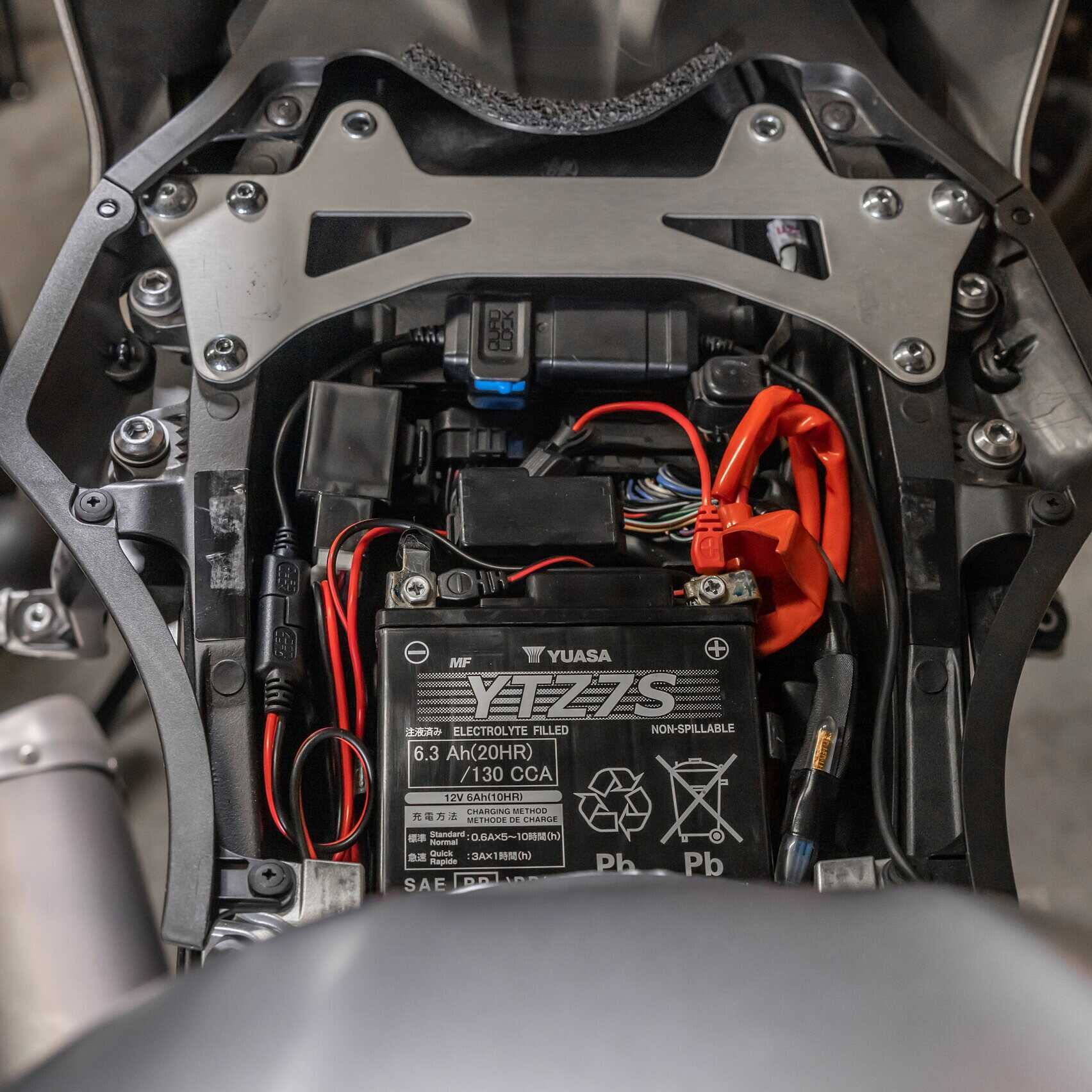

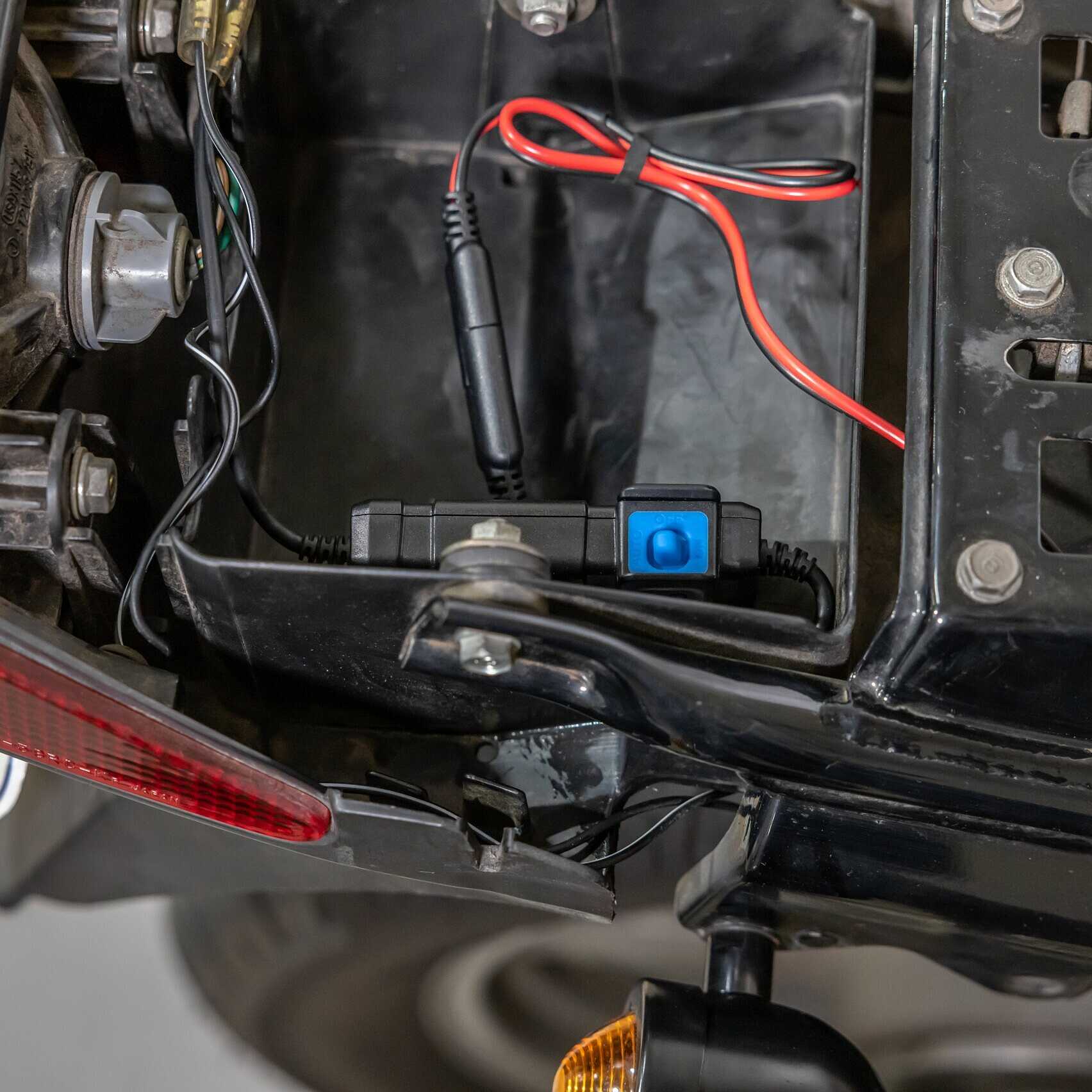

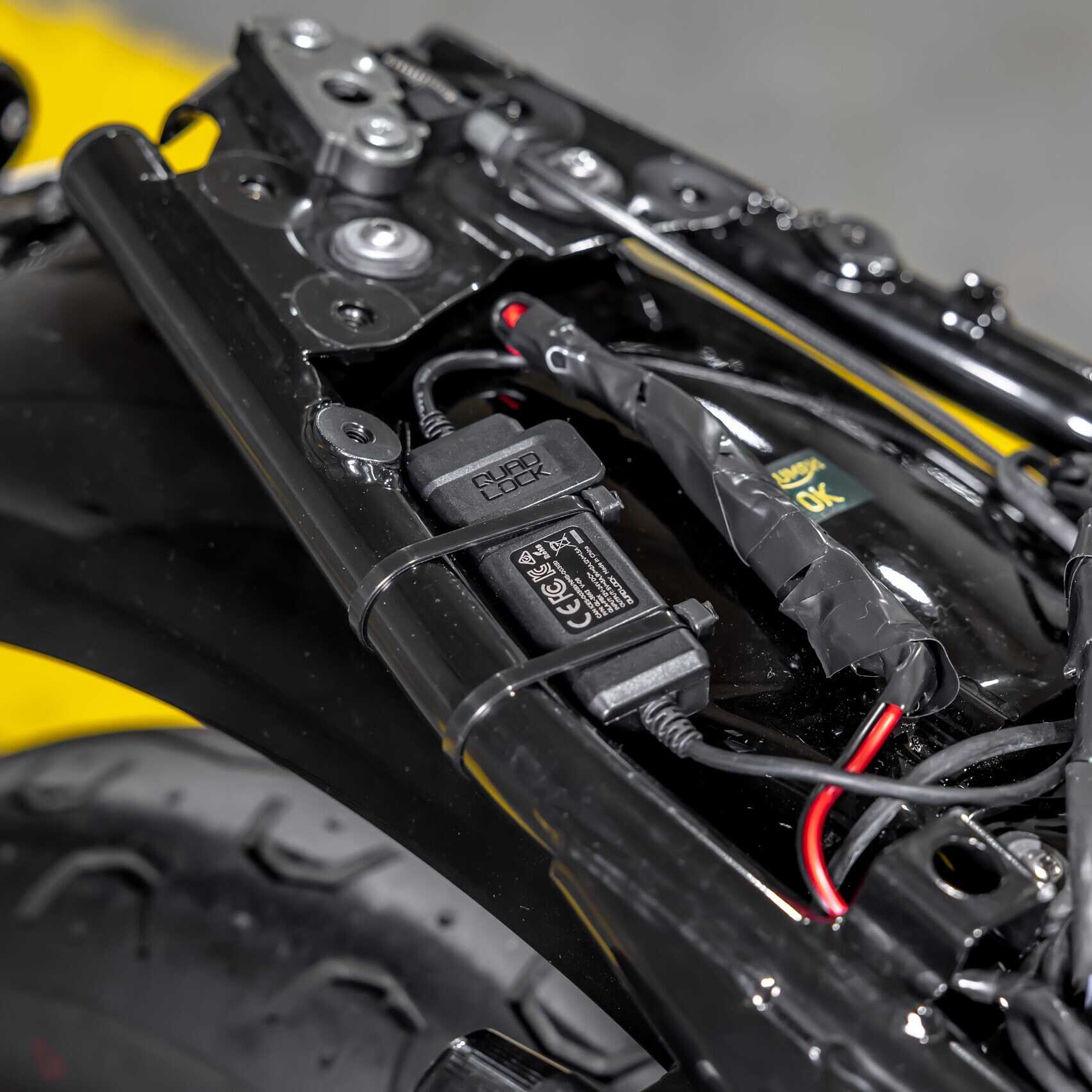

Use the Auto function to keep the device off until the input current exceeds 13.5V and to turn it off when the input current drops below 12.5V. It will be perfect for your motorcycle, ATV, etc., to avoid draining the battery.
Please note that using lithium batteries may interfere with the adapter's Auto function. For these types of batteries, we recommend using the On/Off switch to keep the battery charged.
REVERSE POLARITY PROTECTION AND INLINE SAFETY FUSE
Reverse polarity protection protects the battery if the ring terminal cables are incorrectly connected to the battery terminals. The 3A in-line safety fuse protects the battery in the event of a fault.
Please note:
Weatherproof wireless charging head is not included.
Technical specifications:
- Output: USB-A up to a maximum of 18W (5V/3A, 9V/2A, 12V/1.5A)
- Input: 12V - 24V DC
- Auto power mode only supplies power when the engine is running to avoid draining the battery
- It is recommended to use the on/off switch with lithium batteries to avoid battery discharge.
- Reverse polarity protection
- Inline safety fuse

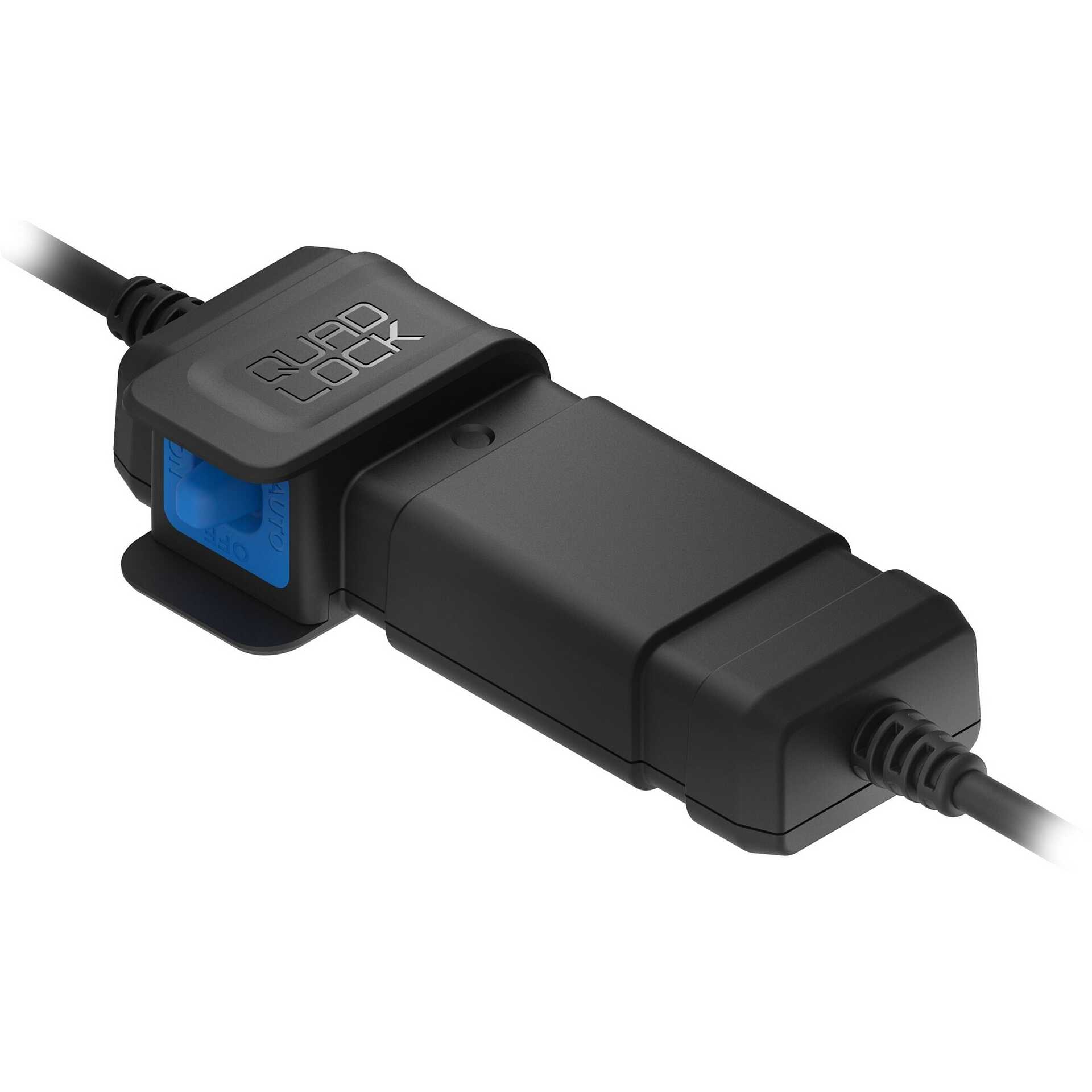

- Waterproof 12V to USB Smart Adapter Housing Made of Polycarbonate
- TPU toggle switch
- PVC, SAE, USB-A cables and overmolded ring terminals
- Brass ring terminals
- IP66 Weatherproof 12V to USB Smart Adapter Cable and Housing
- USB protective cover with IP64 protection grade

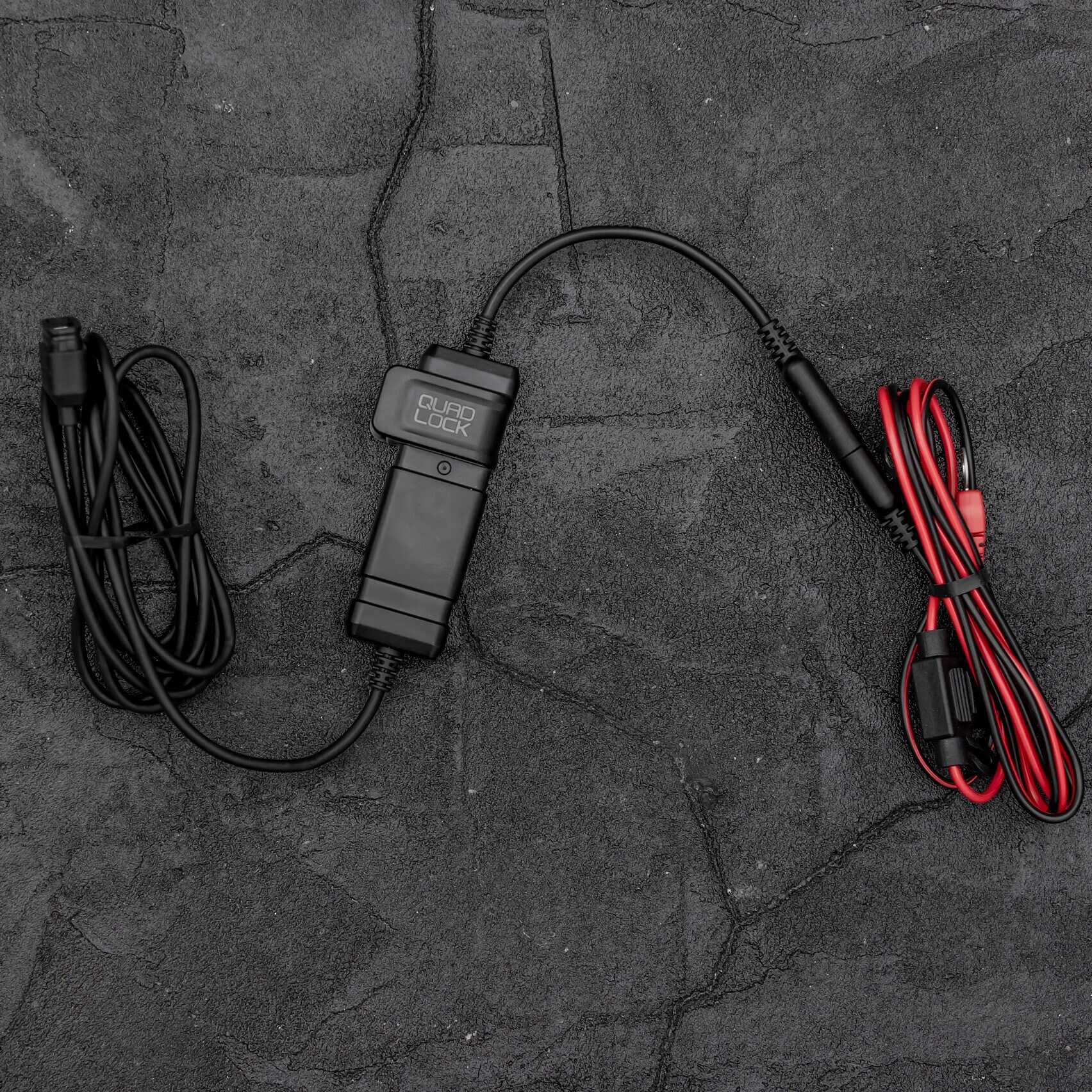

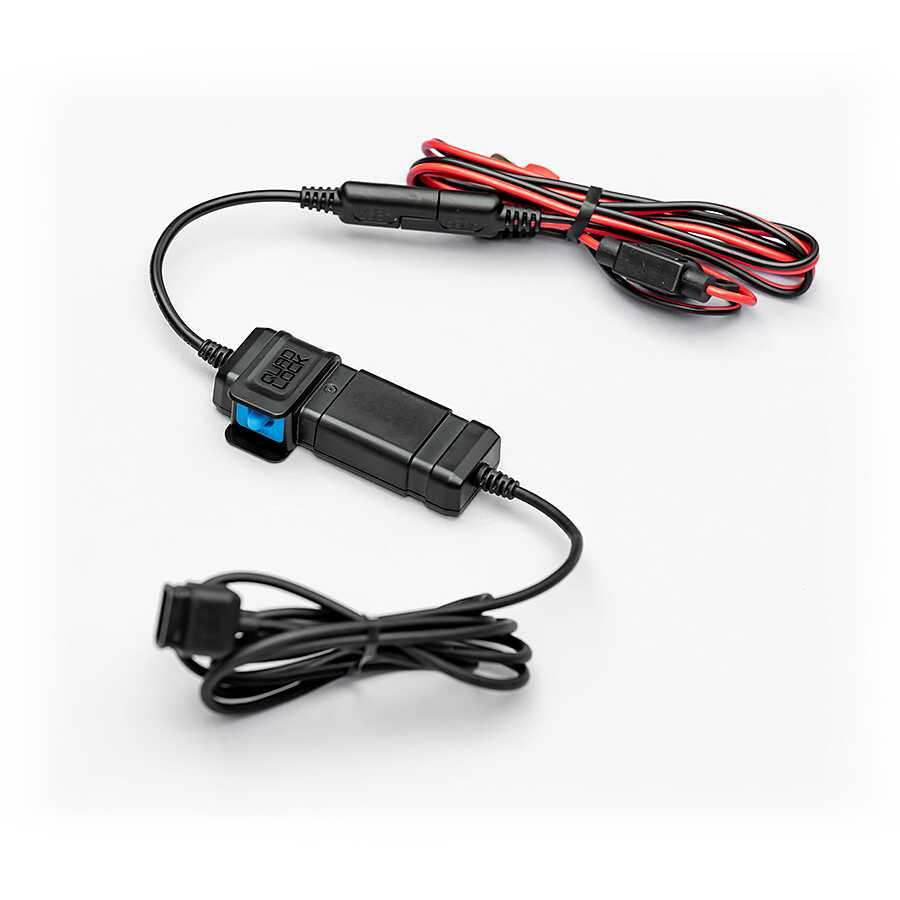

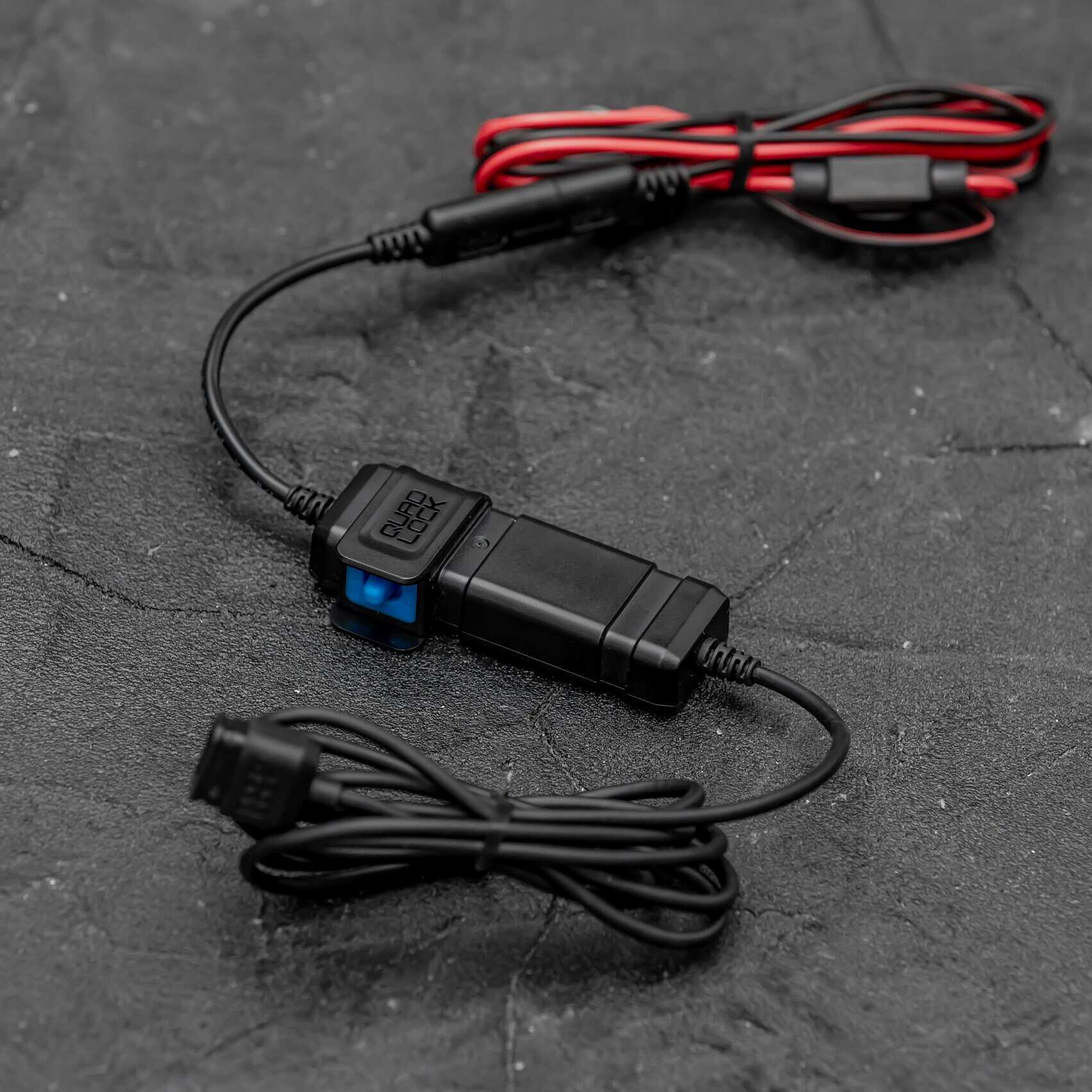

Packaging:
- 1 x Quad Lock® 12V to USB Smart Adapter Weatherproof with 1.5m USB-A female port5m and 10cm SAE cable wired
- 1 x 1m SAE cable to ring terminal with inline fuse
- 1 USB-A protective sleeve for the USB-A to USB-C cable that comes with the weatherproof wireless charger head
- 5 cable ties
