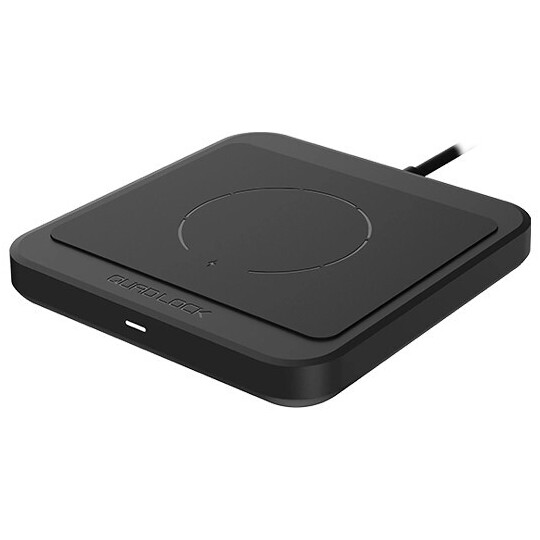

Quad Lock QLM-WCP Wireless Charging Base

The Quad Lock® Wireless Charging Pad is designed to conveniently charge smartphones and compatible accessories without directly connecting cables to the device. Ideal for a desk, bedside table, or other home or office environments, it combines a black anodized aluminum frame with a soft-touch surface and a Quad Lock MAG™ magnetic system that helps properly align your smartphone while charging. It supports wireless charging power up to 15W, depending on device compatibility, and features a reusable adhesive base with nano-suction cup technology that holds the charger in place and makes it easy to remove your phone with one hand. The ambient light sensor automatically manages the LED indicator, reducing light emissions in dark environments for comfortable use, even at night.

Technical Data Sheet:

Main Features

• Wireless charging base for smartphones and compatible electronic accessories.

• Quad Lock MAG™ magnetic system for precise alignment of MAG and MagSafe compatible devices.

• Soft-touch charging surface.

• Reusable adhesive base with nano-suction cup technology, designed to keep the charger stable on the support surface.

• Ability to place and remove the smartphone with just one hand.

• Compact and minimalist design for home and office use.

• Weight: 256 g.

Materials and Construction

• Black anodized aluminum base.

• Bottom cover made of glass-fiber reinforced nylon.

• Top charging surface coating made of TPE (thermoplastic elastomer) and polycarbonate.

• Integrated magnetic system for positioning compatible devices.

• Removable and repositionable nano-suction base without the need to replace the adhesive.

Wireless Charging and Power

• Supported wireless output power: 5W, 7.5W, 10W, and 15W.

• Maximum charging power for iPhone: 7.5W.

• For iPhone 15 with iOS 17.1, maximum power rating is 5W.

• Power supply via USB-C charger port.

• Input profiles: DC 5V/3A, 9V/2A and 12V/1.5A.

• Requires at least a 10W USB power supply.

• USB ports on laptops and desktop computers may not provide sufficient power and are not recommended as a power source.

• Actual charging power depends on device compatibility and the power adapter used.

Compatibility

• Compatible with smartphones and accessories that support at least 5W wireless charging.

• Optimized magnetic alignment for devices with Quad Lock MAG™ Case or MagSafe system.

• Compatible with wireless charging accessories, like AirPods Pro.

• Also works with Quad Lock Original cases, but does not automatically align magnetically; charging efficiency may be lower.

• Not compatible with smartwatches and other wearable accessories.

• Quad Lock MAG™ cases and charging accessories available for purchase separately.

LED indicator

• Built-in indicator light to show charging status.

• Ambient light sensor with automatic activation of night mode.

• In dark environments, the indicator will automatically turn off about 3 seconds after charging starts.

• Continuous flashing light signal in case of error or detection of foreign objects interfering with charging.

Installation and Maintenance

• Placement on a support surface suitable for the nano-suction base to adhere.

• Reusable attachment system that allows the magazine to be removed and repositioned.

• Surface compatibility must be checked to avoid possible damage to furniture finishes.

• Dust or fibers on the base can reduce adhesion; any residue can be removed using masking tape or a lint roller.

• Remove any rings, card holders, or accessories attached to your smartphone that may interfere with wireless charging.

Equipment Included

• 1 x Quad Lock® Wireless Charging Pad.

• 1 x 1.5m USB-C to USB-A Cable

• USB power supply not included, purchase separately.
