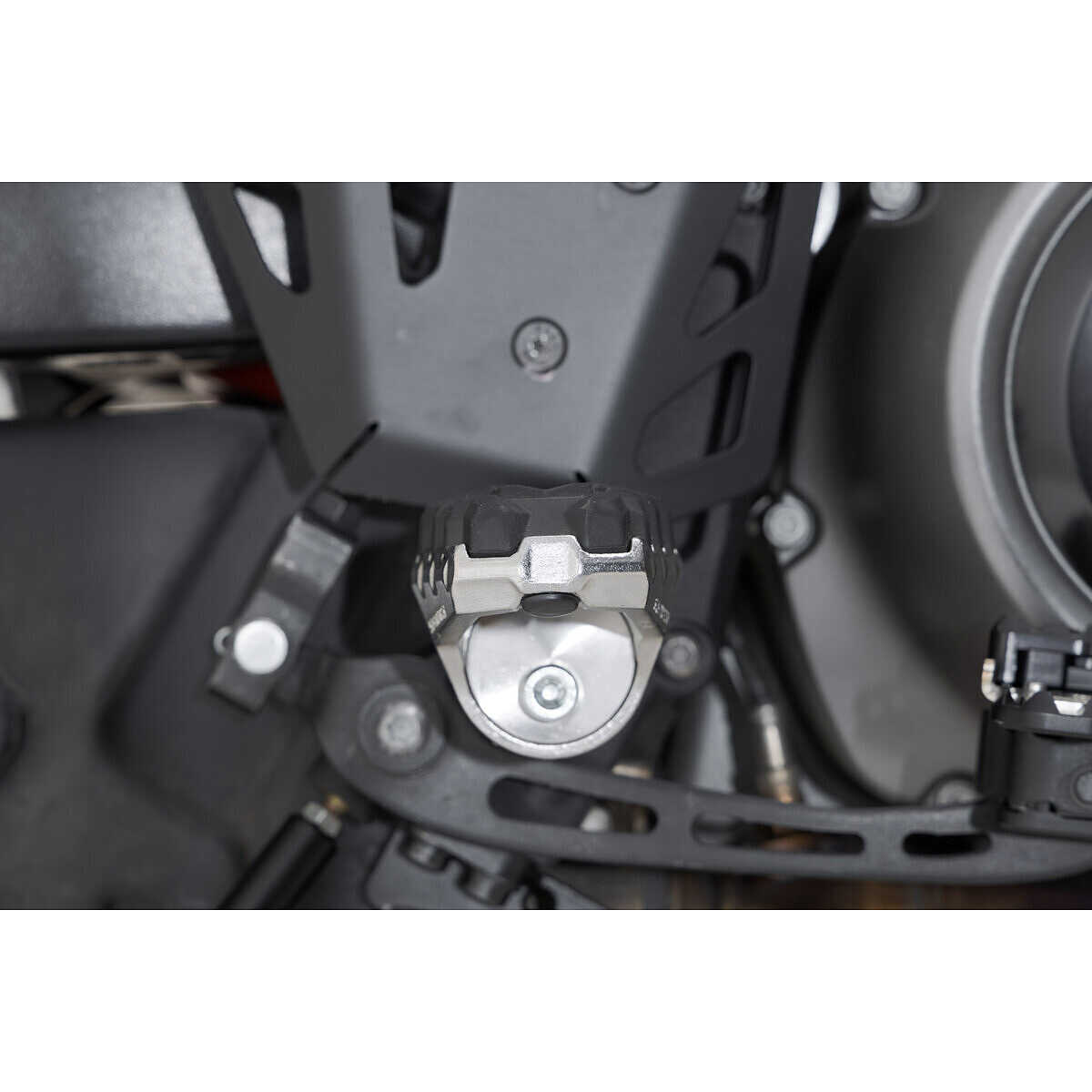

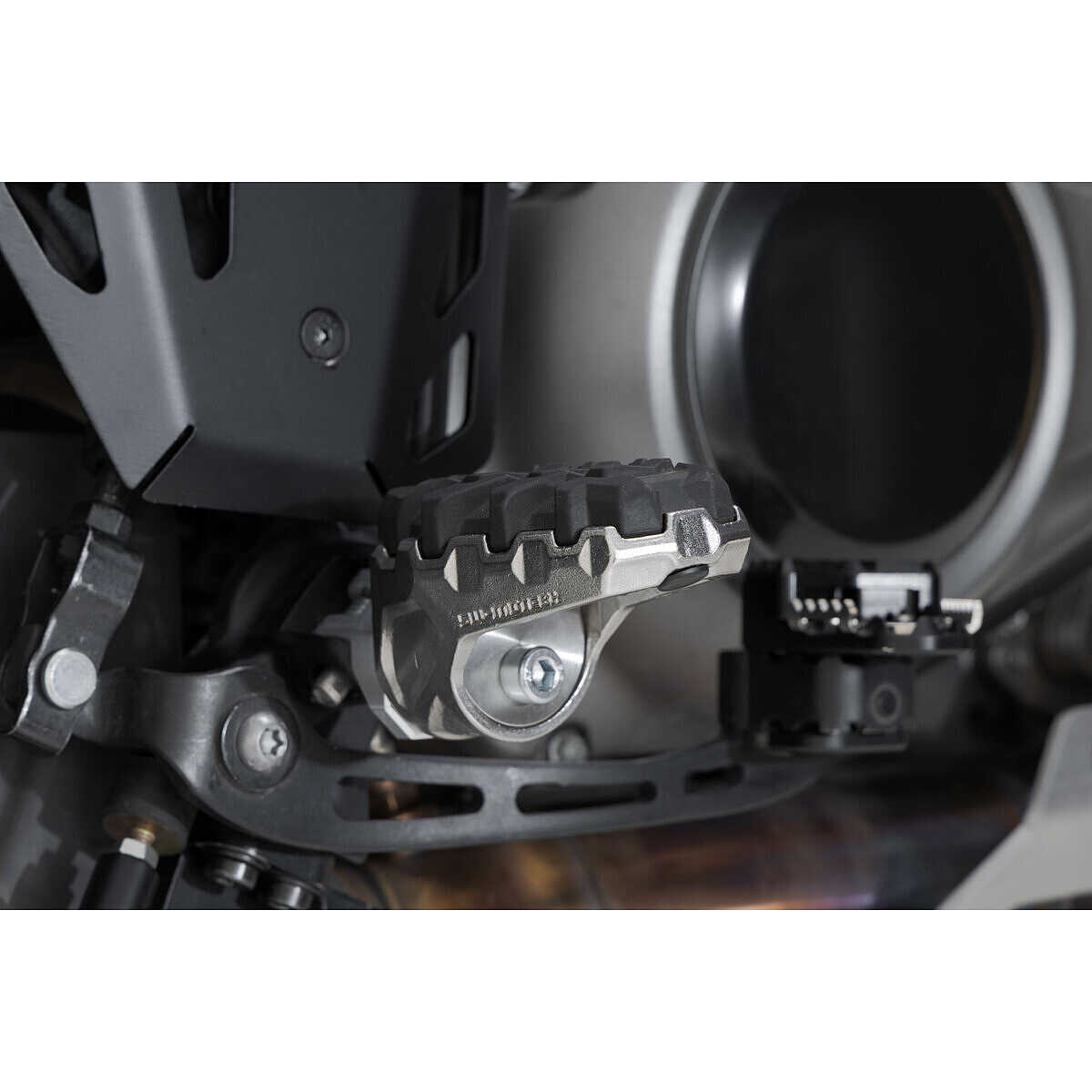

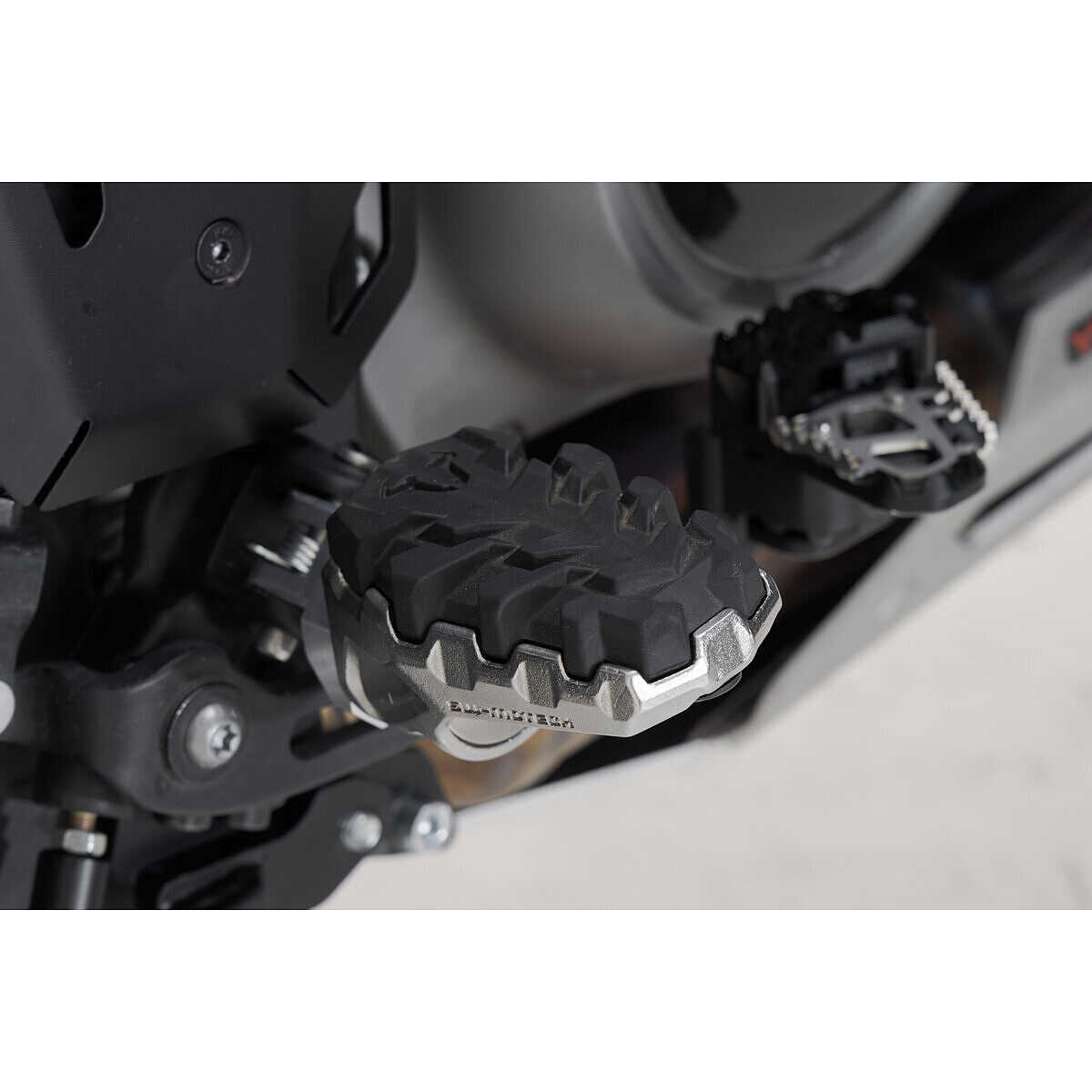

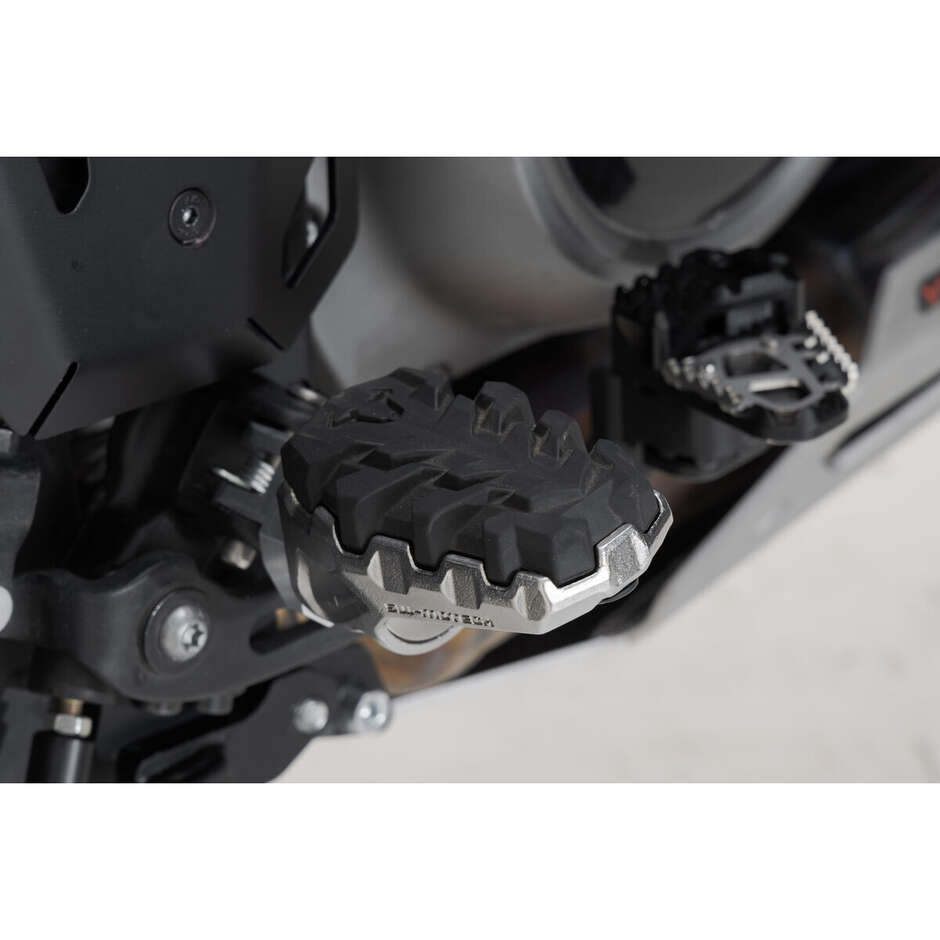

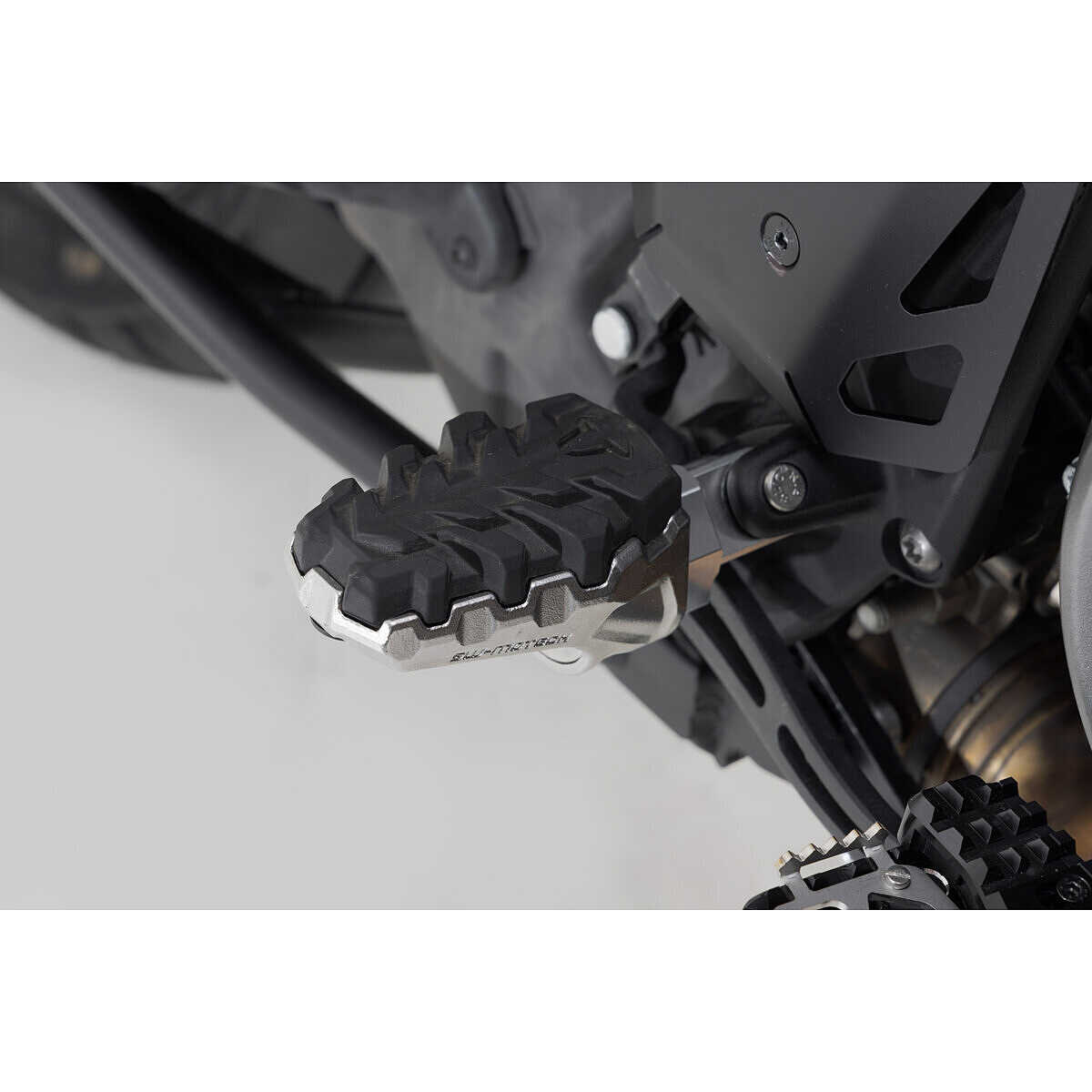

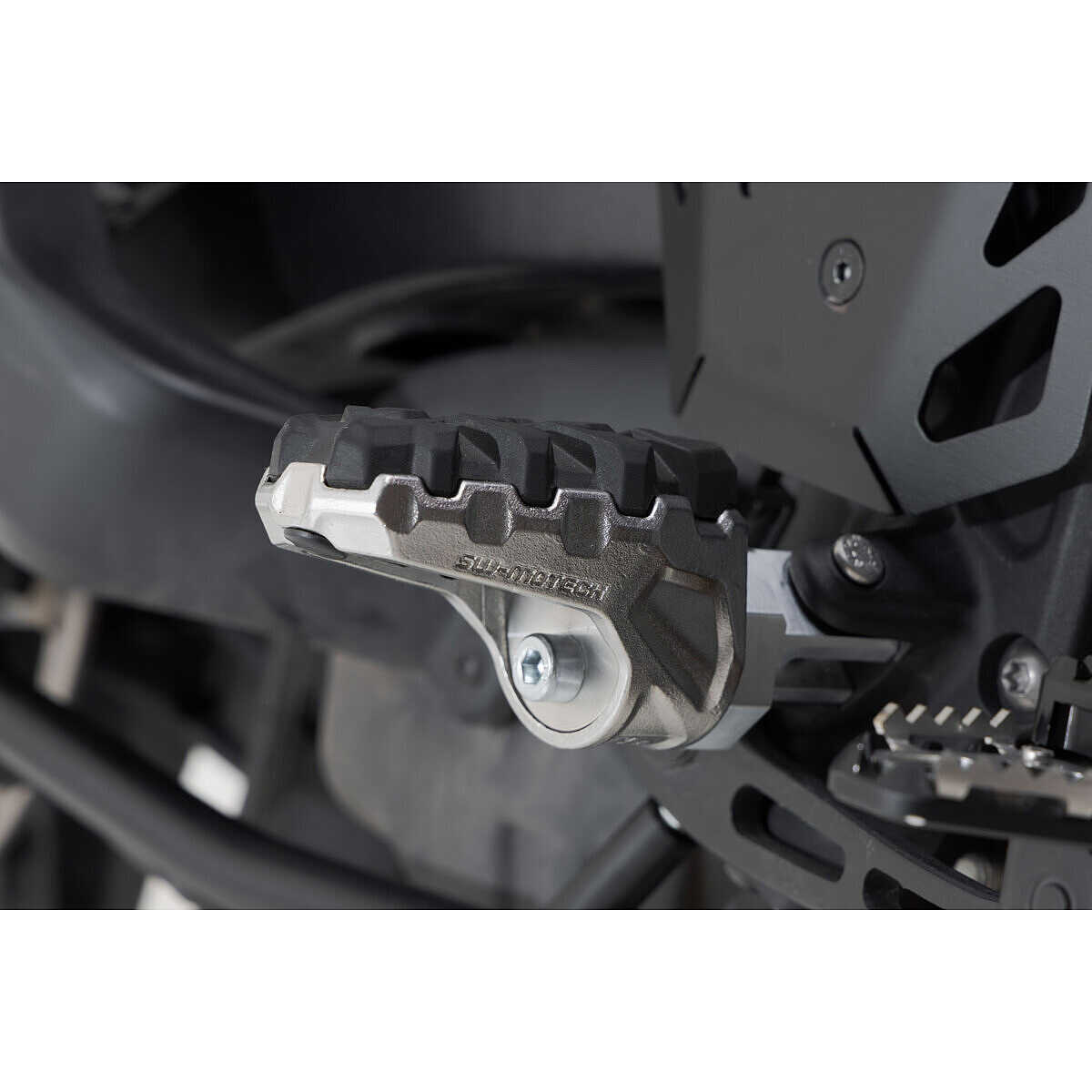

Sw-Motech Adjustable Footrest Kit FRS.18.112.10001 Harley-Davidson Pan America (2021-)

Are the original footrests not comfortable? The SW-MOTECH EVO adjustable footrest kit is the ideal solution. An ingenious system consisting of rotating elements with fixed interlocking teeth allows for 36 different adjustments. The footrest position can be individually adjusted in multiple directions: downward, forward, backward, and tilt. Bike-specific joint adapters can be easily mounted on the footrest bracket using the original parts. How this mechanism works is explained in the assembly instructions.

• Simple mounting on the original footrest support
• Adjustable in 36 different positions via rotating toothed elements, downwards, forwards, backwards and also tilting
• Custom height adjustment (the highest setting corresponds to the original position, lowering is possible up to a maximum of 15 mm)
• Secure hold thanks to the teeth and screwing of the elements
• Markings facilitate symmetrical adjustment of both sides
• The rounded edge profile protects the sole of the boot and at the same time offers much more socket
• Removable metal-reinforced rubber pad with non-slip surface and large support surface (approx. 8 x 5 cm) for greater comfort and stability
• Made of electropolished, corrosion-resistant cast stainless steel
• Mounting material included in the shipment

Contents of the shipment

• 2 x EVO Platform
• 2 x Model-specific joint adapter
• Assembly instructions
• Assembly material

Details

• Material: Stainless Steel / Rubber
• Color: Silver / Black
• Total weight: approx. 1,4 kg
