Sw-Motech TRT.00.787.32500/B Motorcycle Tank Ring Black For Honda CMX500 Rebel (16-)

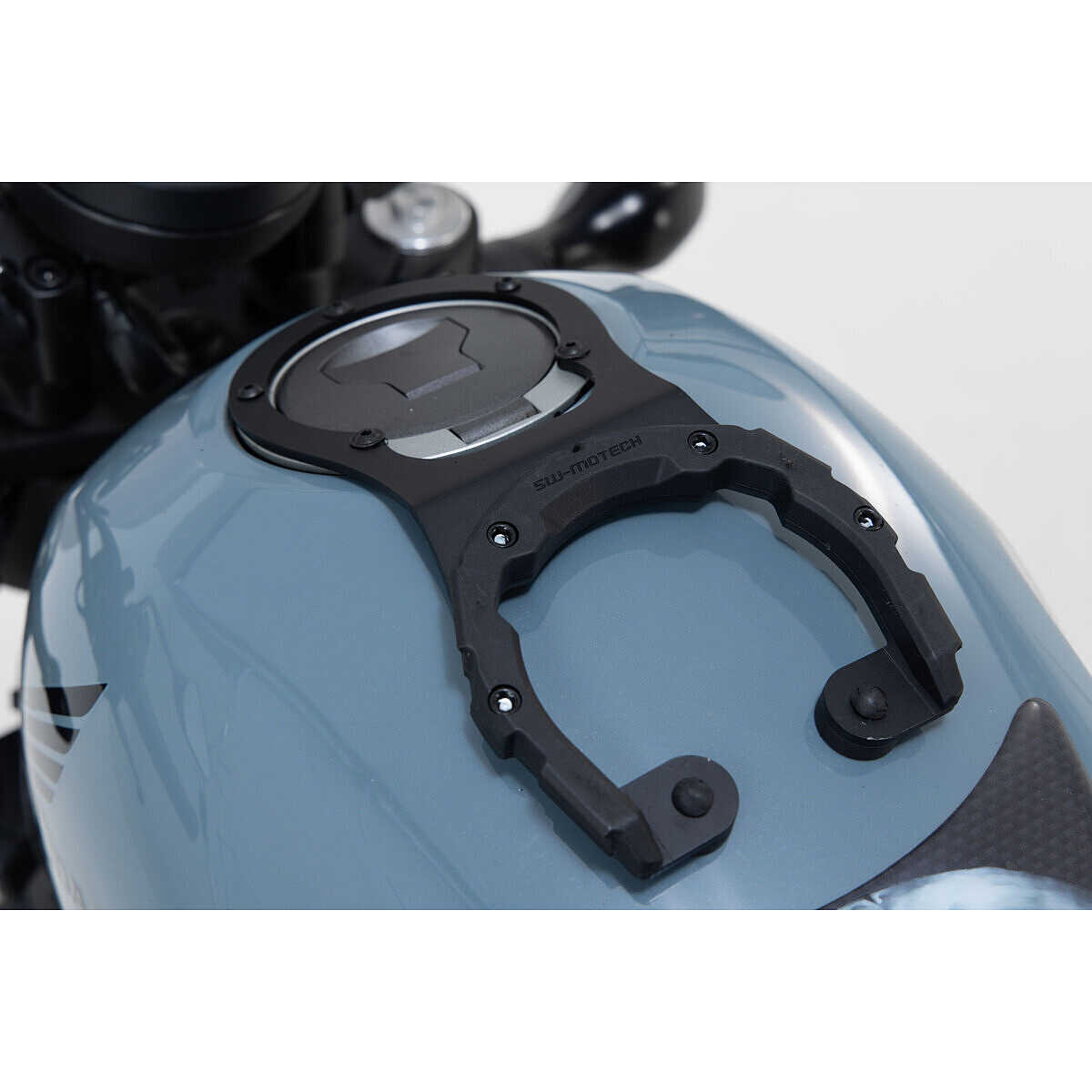

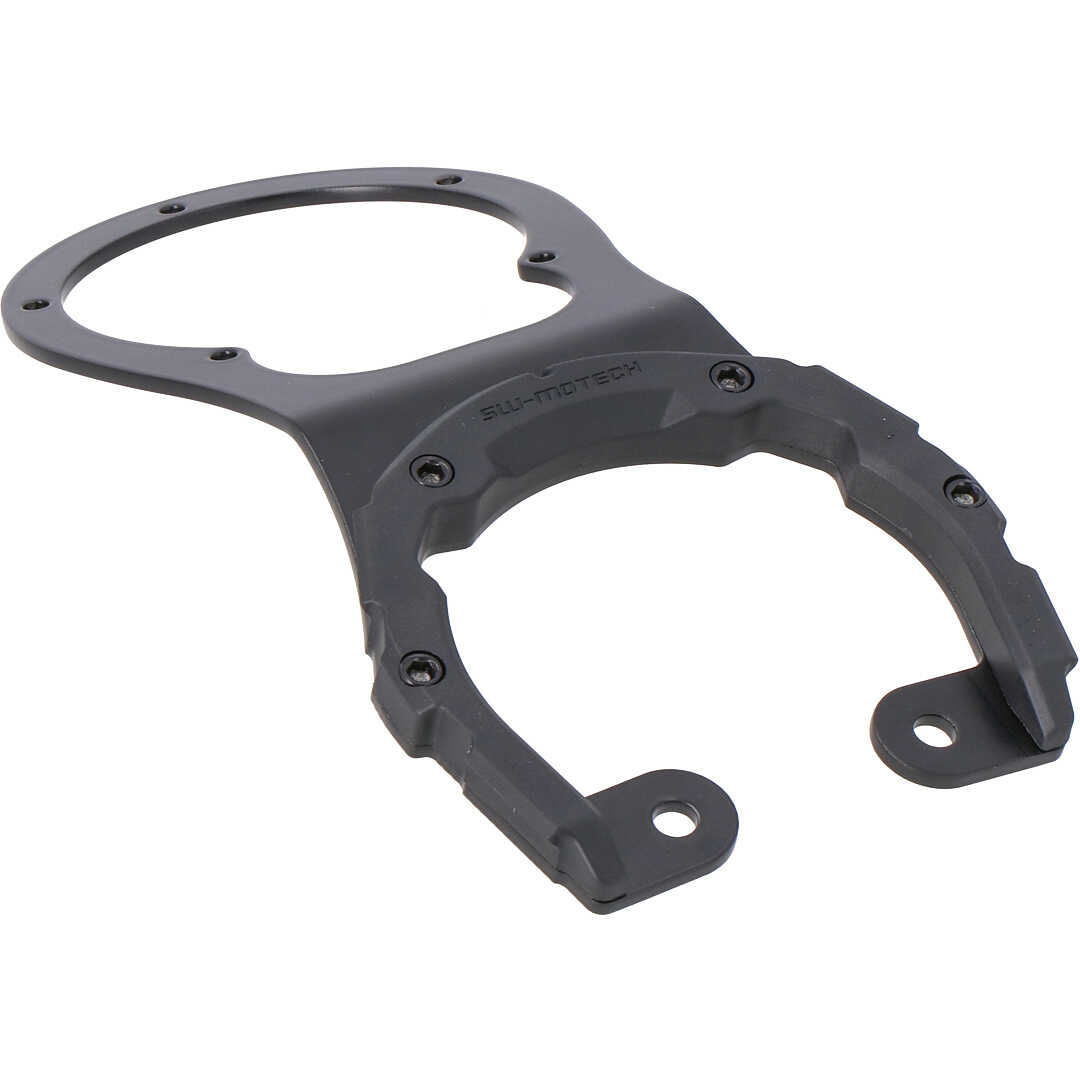

The PRO tank ring for the Honda CMX500 Rebel is mounted on a model-specific mounting element that attaches to both fuel caps. The mounting element is screwed securely to the motorcycle's fuel tank.

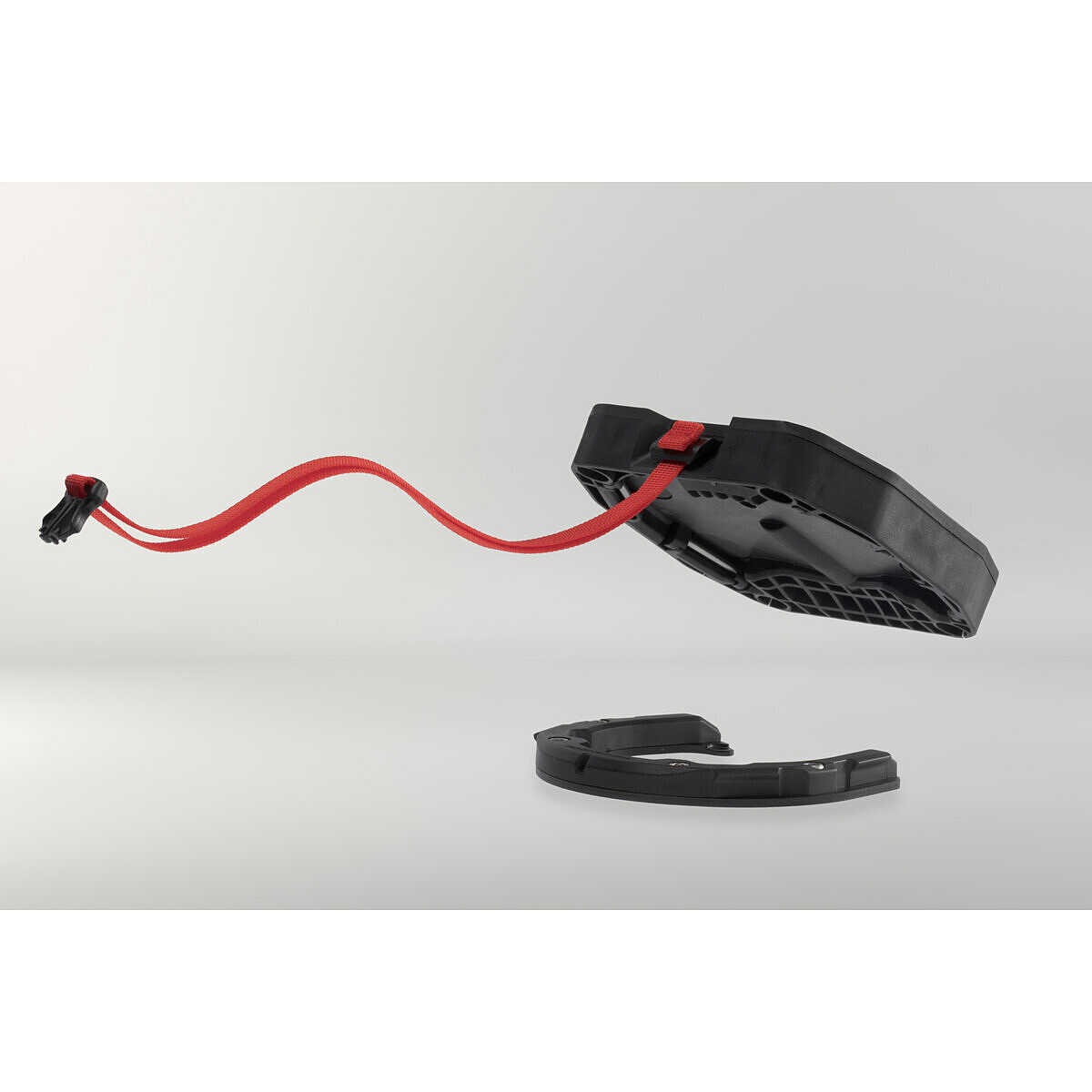

The PRO tank ring perfectly combines the innovative strengths of two German companies: the tried-and-tested QUICK-LOCK locking mechanism of SW-MOTECH tank rings is now even easier to use thanks to the magnetic guide provided by Fidlock technology. The positioning of the upper ring has been significantly improved: the sliding upper ring is already mounted on the tank bag via a slide guide and requires no drilling.

This upper ring can then be individually aligned on the slide rail at the bottom of the tank bag. Once in place, simply screw it in tightly. To transfer it to another motorcycle, simply adjust its position accordingly.

The magnetic guide, developed by Fidlock, complements SW-MOTECH's already proven QUICK-LOCK mechanical attachment system: magnets guide the upper ring into place on the tank ring, which then locks securely into place. The powerful magnets then help to securely position the tank bag. Attaching and detaching the tank bag easily and securely is as easy as one hand.

The mechanical locking mechanism secures the tank bag, and magnets connect the two halves of the ring. The sturdy fiberglass-reinforced plastic construction, with a highly precise interlocking geometry, ensures the tank bag stays securely in place under any road conditions.

The patented PRO tank ring adapts to the fuel tank filler neck of each motorcycle model. This ensures the best possible fit on the tank.

Technical Data Sheet:
