Tank Ring PRO Sw-Motech TRT.00.787.31701/B For Yamaha TRACER 9 / GT (2021-24); XSR 125 (22-24)

In this model of the PRO tank ring, the tank ring is located on a model-specific mounting element.

The PRO tank ring perfectly combines the innovative strength of two German companies: The QUICK-LOCK locking mechanism of the SW-MOTECH tank rings, tried and tested for many years, is now even easier to use thanks to the magnetic guidance offered by the technology Fidlock. The positioning of the top ring has been substantially improved: the sliding top ring is already mounted on the tank bag via a sliding guide and does not require drilling.

Then this upper ring can be individually aligned on the slide rail at the bottom of the tank bag. Once in place, just screw it in tightly. To transfer it to another bike, just adjust its position accordingly.

The magnetic guide, developed by Fidlock, complements the already perfected SW-MOTECH QUICK-LOCK mechanical coupling system: the magnets guide the upper ring so as to position it adequately on the tank ring which, finally, locks firmly in position . Therefore, the power of the magnets intervenes in adequately positioning the tank bag. A simple gesture is enough to attach and detach the tank bag in a simple and safe way.

The mechanical locking mechanism secures the tank bag and the magnets join the two parts of the ring. The robust fibreglass-reinforced plastic construction, with high-precision interlocking geometry, ensures that the tank bag remains securely in place in all road conditions.

The patented PRO tank ring fits the tank filler neck of the individual motorcycle model. This ensures the best possible positioning on the tank. Specific for:

YAMAHA:

• TRACER 9 (2021-23)
• TRACER 9 GT (2021-23)
• XSR 125 ABS (2022-24)

Data sheet:

• Model-specific adapter ring for the best possible fit and customized solutions
• Ease for mounting on the tank fillers
• Magnetic driving aid in the PRO tank ring for easy attachment
• The quick release strap allows you to remove the PRO tank bag with a single gesture
• The patented PRO tank ring gives the PRO tank bags a secure hold
• Easy refueling: The tank lid can be opened normally
• Made of glass fiber reinforced polyamide
• Paint protection solution: the tank bag is not in contact with the tank

Contents of the shipment

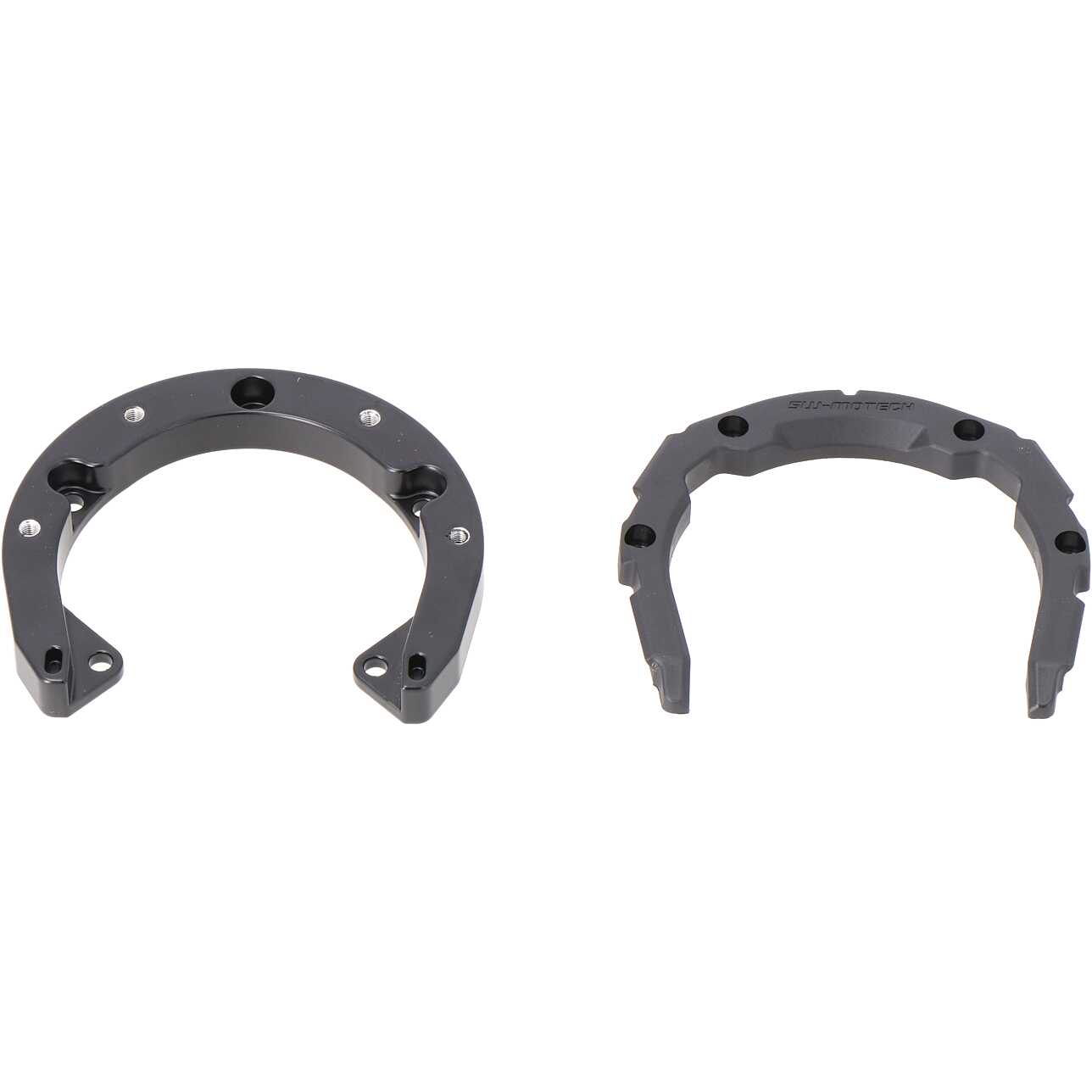

• 1 x PRO Tank Ring
• 1 x Mounting element
• Assembly instructions

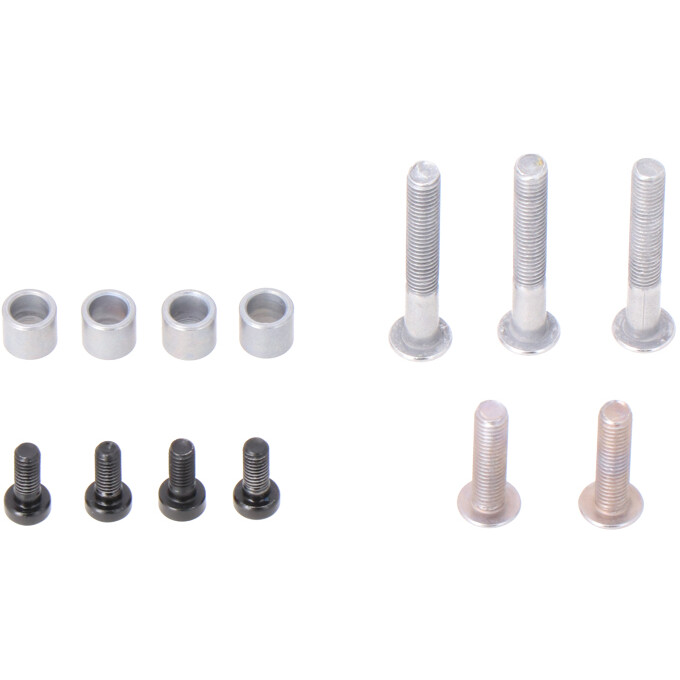

• Mounting material

Details

• Material: Glass fiber reinforced plastic / Aluminium
• Black colour
• Total weight: approx. 0.2kg

I notify

• For PRO City and PRO Trial tank bag only in combination with PRO booster element. The booster element is included in the package contents.
• PRO series tank rings are not compatible with EVO tank bags.
