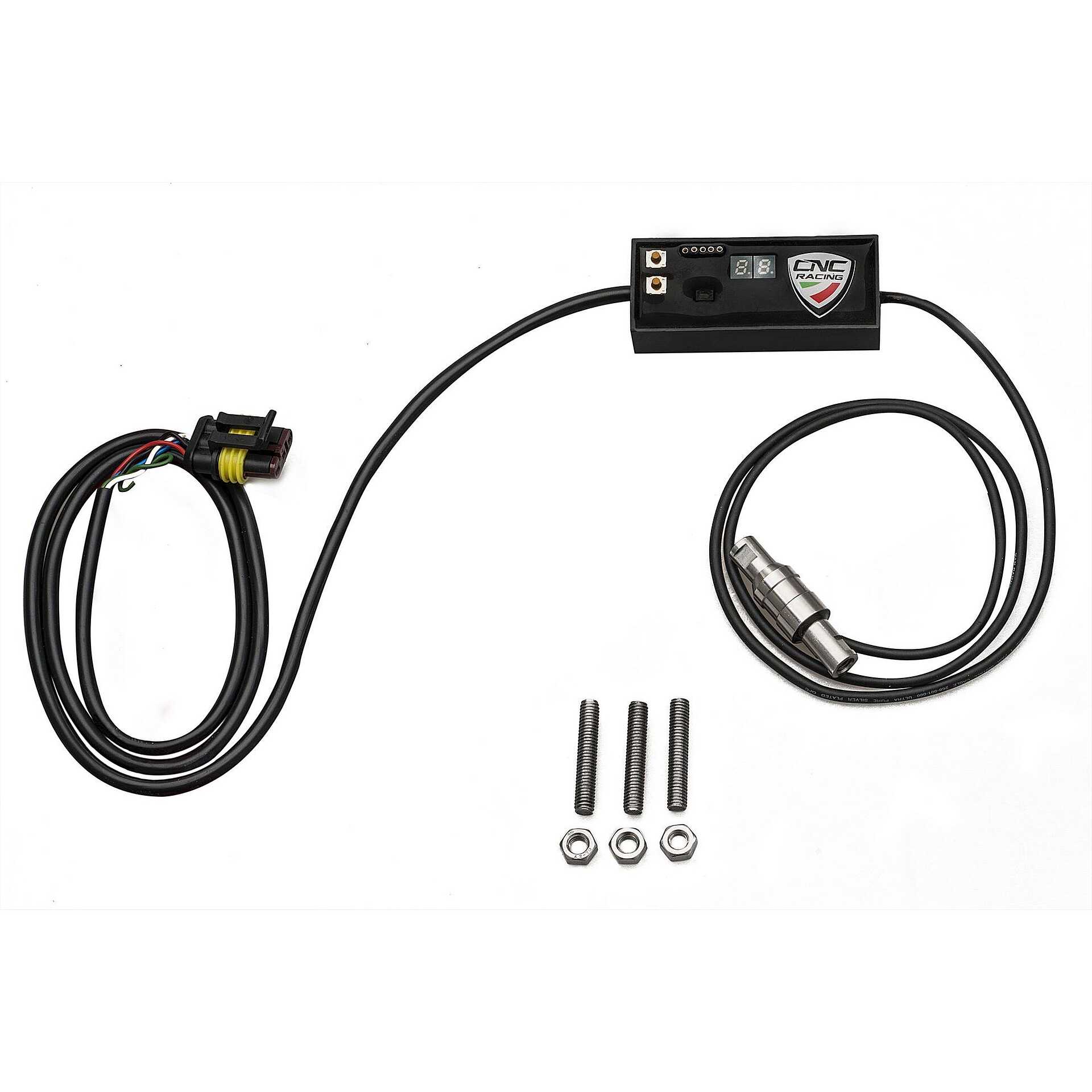

Universal Electronic Gearbox CE710 CNC Racing Natural

Universal Electronic Gearbox CE710 CNC Racing Natural

Technical Data Sheet:

• Universal Load Cell Sensor (Strain Gauge)
• It can work in both compression and traction.

2 parallel outputs:

• DIGITAL, settable as normally open or normally closed, connection with Dynojet Power Commander III, V, Rapid Bike III and EVO,
• ANALOGUE, 0÷5V, settable as either unidirectional or bidirectional. Reading range 0÷100Kg, for connection with Marelli, Motec and similar control units and with Data Acquisition systems.
• Calibrated and calibratable at any time,
• Recording of MAXIMUM LOAD,
• INSTANT LOAD display,
• Reporting of any faults,
• Insensitive to temperature and vibrations,
• Settable as normally Closed/Open,

Possible output for DIRECT CUTTING of coil/injector power supply (no other control units required)

• Universal Plug&Play connections for Japanese, Ducati, Aprilia, KTM, Triumph, Guzzi, BMW, Morini, Bimota, Benelli. Instructions in other cases,
• Compushift function (disengageable): at each gear change it automatically calculates the perfect cutting time based on acceleration, engine speed and load, making a choice between 500 different cutting times in the range 20÷180ms,
• Smoothshift function for a gradual return of power after gear changes. Prevents skidding and swaying when exiting corners,
• Minimum programmable intervention regime.
• Programmable cutting time in the range 40÷99ms.
• Very small dimensions: Φ=15mm, L=55mm,
• Supplied with gear rod already drilled and threaded.
• Water and dust resistant,
• Tested 1,500,000 cycles at 65Kg load!
• Small display, no PC required.

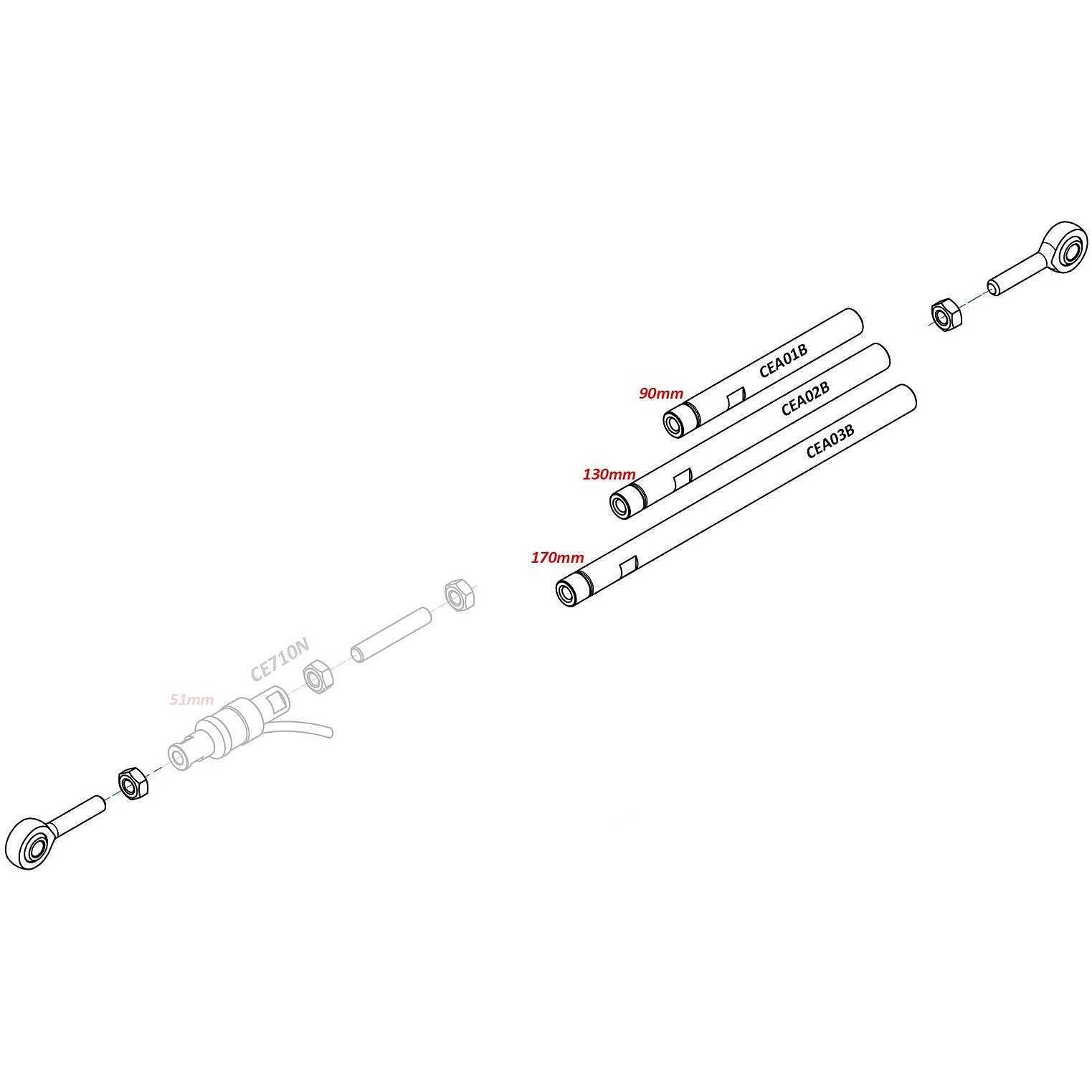

Gear shift rods of different lengths are available as accessories

• CEA01B - 90mm
• CEA02B - 130mm
• CEA03B - 170mm

NOTE :

Please send us an email with your motorcycle model/year in the additional order notes.
