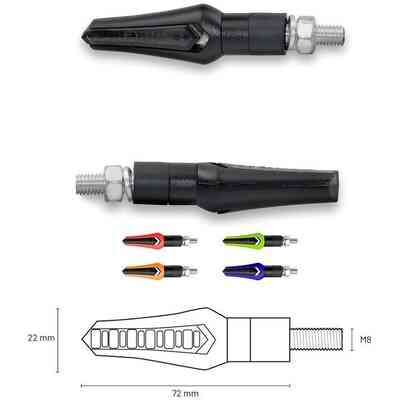

Barracuda S-LED B-Lux Homologated Motorcycle Arrows Silver (pair)

S-LED B-LUX are approved universal indicators that use LED technology with optical glass to optimize brightness.
They are characterized by fluid aerodynamic lines, from a retro-classic style and have reduced dimensions.
BARRACUDA LED ARROWS are UNIVERSAL, HOMOLOGATED and compatible with all market bikes.

Each bike is equipped with a specific system that requires a corresponding adaptation:

• motorcycles with 10 watt system need 10 watt RESISTORS for regular flashing and operation (cod. Res10 );
• 21 watt motorcycles require 21 watt RESISTORS for regular flashing and operation (cod. Res21 );
• motorcycles with original LED system do NOT need any resistance;

These considerations are general and concern 99% of the bikes on the market, there are also special models of motorcycles that for technical characteristics require specific electronic adapters to be evaluated individually and for the regular operation we recommend professional technical support.

To complete the AD HOC INSTALLATION we recommend the purchase of related products such as:

• ARROW ADAPTER (necessary for the assembly of the indicators on the structure of the motion);
• RESISTANCES;
• CABLE ADAPTERS , (required to connect the indicators to the original system without having to make any changes to the original cables or connectors);

CAUTION:

• In case the original arrows of your bike are in lampanda, these being led require 2 resistors.The resistors must be mounted, as these last to simulate the electric load of the lamp, allowing the regular operation of the intermittence. Depending on the original wattage of the bulb there is a suitable resistance.
• If instead the original arrows of your bike are already LED you do not need anything else.
• On some motorcycle models, in which there is an emergency switch (4 arrows), the ignition device may not be compatible with the LED arrows, as the emergency flashing is not managed by the control unit but by the relay.
