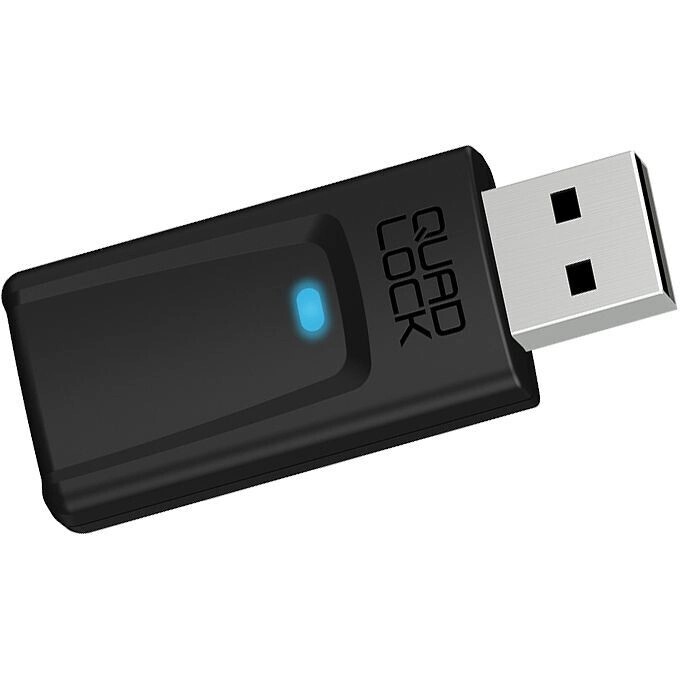

Quad Lock QLA-CPA-2 Wireless Apple CarPlay / Android Auto Adapter

The Quad Lock® Wireless Adapter lets you use Apple CarPlay or Android Auto without connecting your smartphone via a cable, transforming an already wired infotainment system into a wireless solution. Compact and lightweight, it plugs directly into the vehicle's USB port and uses Bluetooth and Wi-Fi technologies to communicate with your phone. After initial pairing, the connection occurs automatically when the car is started, allowing you to access navigation, music, calls, and messages through the infotainment system. It supports multiple smartphone pairing, with the ability to switch between devices via Bluetooth settings. The included USB adapters make it easy to install on different vehicle door configurations without modifying the original system.

Technical Data Sheet:

Main Features

• Allows you to use Apple CarPlay and Android Auto wirelessly on infotainment systems already equipped with the respective wired features.

• Plug & Play installation via the vehicle's USB port, without the need to replace the infotainment unit.

• Access compatible apps for navigation, music playback, calls and messaging.

• Resolution adaptive to vehicle display.

• Compact design weighing 20g.

Connectivity and Operation

• Wireless connection via Bluetooth and Wi-Fi.

• Initial pairing of the smartphone via Bluetooth and subsequent communication via the Wi-Fi network generated by the adapter.

• Automatic connection to the last paired smartphone when the vehicle is turned on.

• Ability to pair multiple smartphones and select the desired device via your phone's Bluetooth settings.

• Your smartphone's Bluetooth and Wi-Fi must be enabled for this to work.

• Using the adapter may prevent your smartphone's Wi-Fi hotspot from being activated simultaneously.

Compatibility

• Compatible with vehicles produced since 2016 with wired Apple CarPlay or Android Auto as standard.

• Compatible with aftermarket infotainment systems that support Apple CarPlay or Android Auto via cable.

• Requires your vehicle or infotainment unit to already have wired CarPlay or Android Auto functionality.

• Does not add CarPlay or Android Auto to systems that don't already have them.

• Not compatible with BMW vehicles or aftermarket Sony infotainment units.

• Compatibility also depends on the smartphone model and the software version installed.

Power and Construction

• USB-A input.

• Power supply: USB 5V/1A

• Powered directly via the vehicle's USB port, without batteries.

• Housing made of PC/ABS (polycarbonate and acrylonitrile butadiene styrene).

Installation and LED Indicator

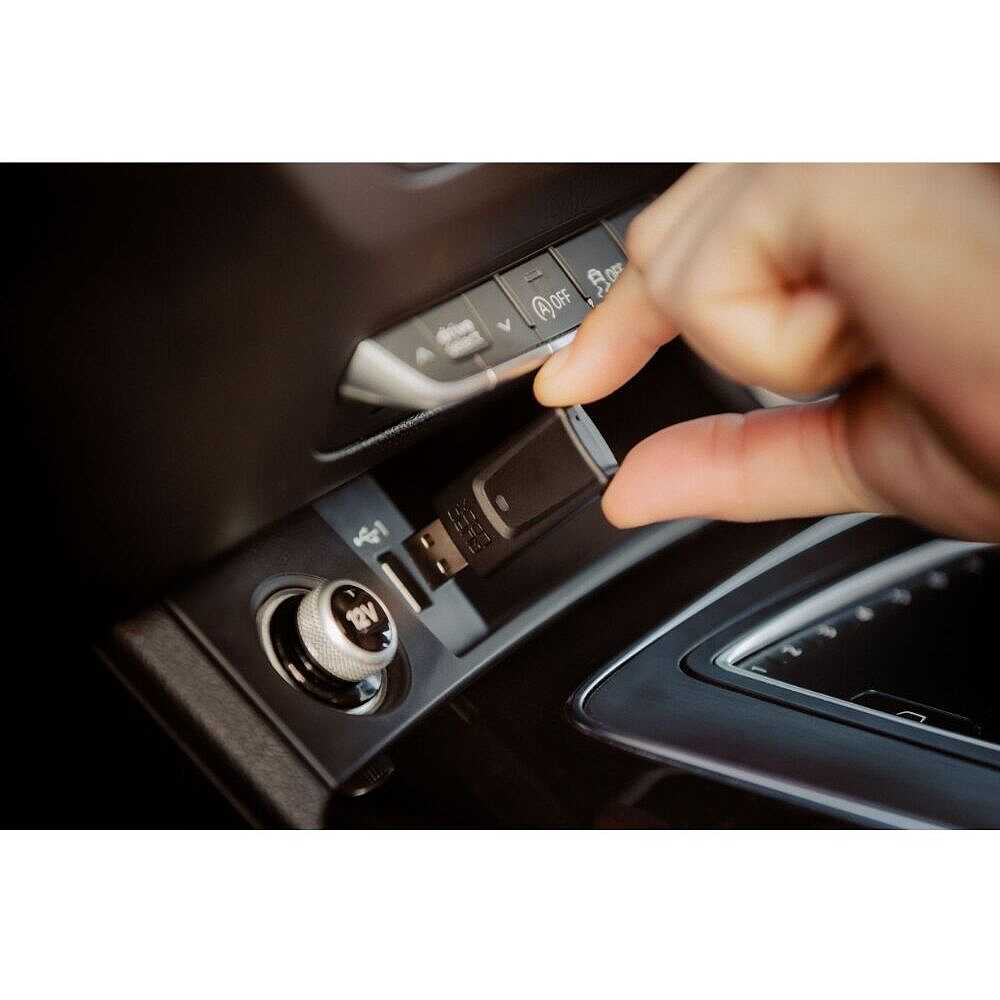

• Connect to your vehicle's USB port enabled for wired Apple CarPlay or Android Auto.

• Ability to use included USB adapters based on available port configuration.

• On some vehicles, you may need to enable CarPlay or Android Auto in your infotainment system settings.

• First pairing via Bluetooth device identified as QUAD-LOCK-####.

• Built-in LED indicator to display boot status, connection readiness and vehicle connection.

• Flashing green LED while waiting for connection and solid blue LED when connection is complete.

• Adapter reset function via integrated reset button.

Equipment Included

• 1 Quad Lock® Wireless Adapter for Apple CarPlay and Android Auto.

• 1 x Straight USB-A to USB-C Adapter.

• 1 x USB-A to USB-A 90° Angle Adapter.
