Quad Lock QLA-MOT-USB Usb battery charger

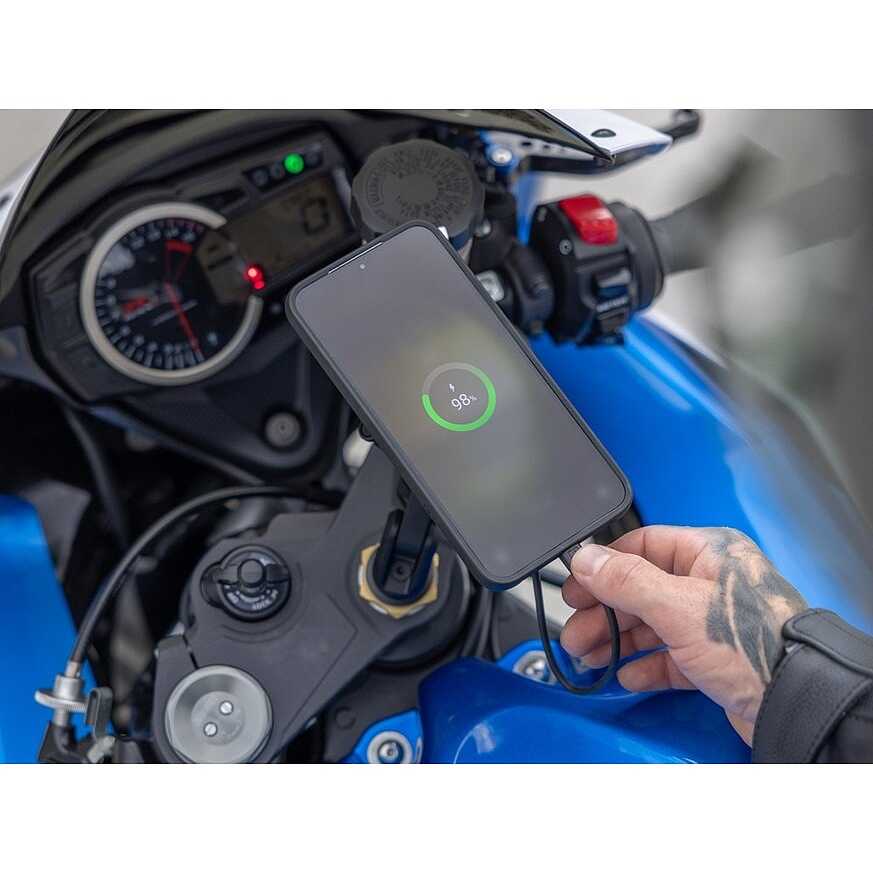

Keep your phone charged while you ride with the Quad Lock USB Motorcycle Charger.
EASY INSTALLATION

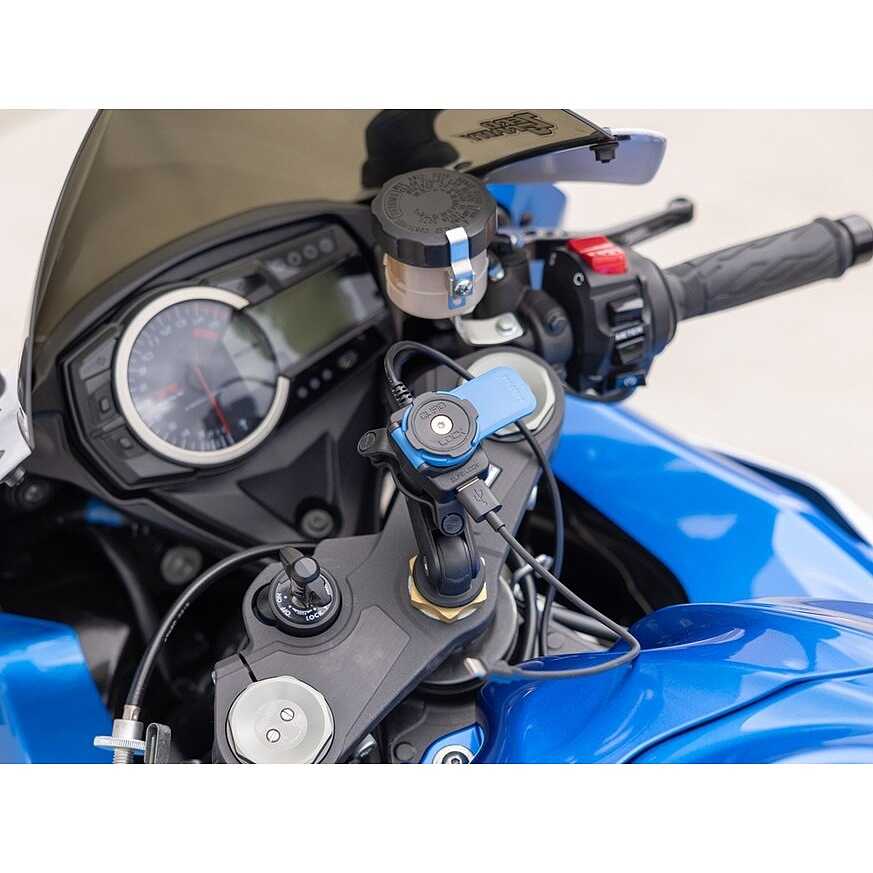

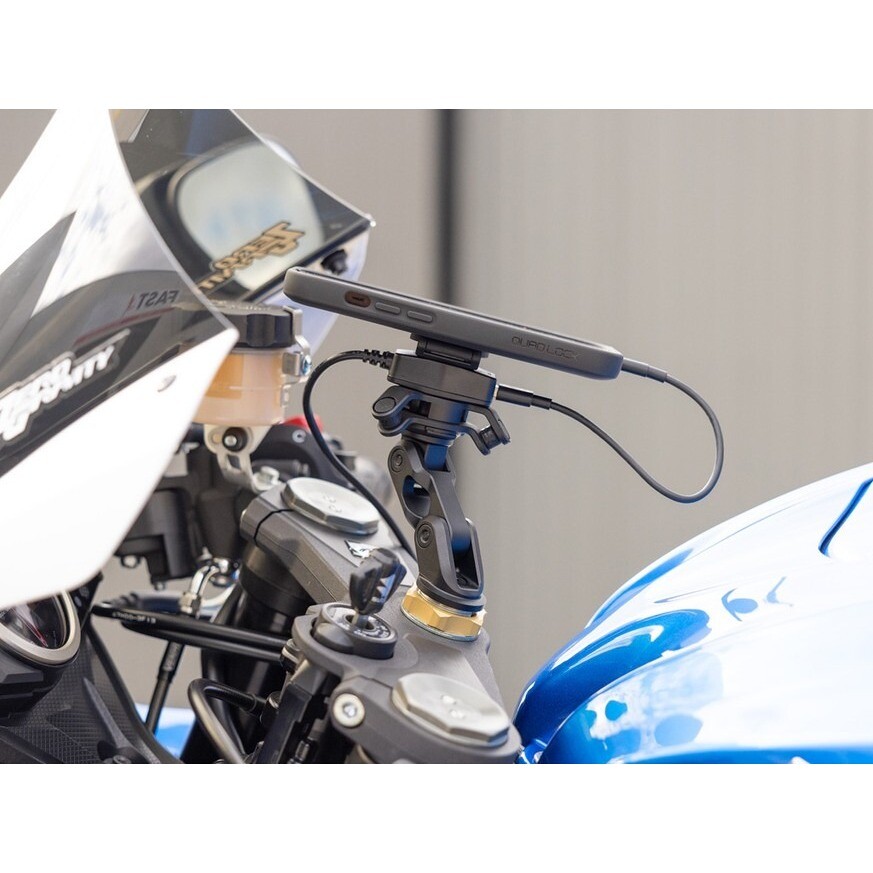

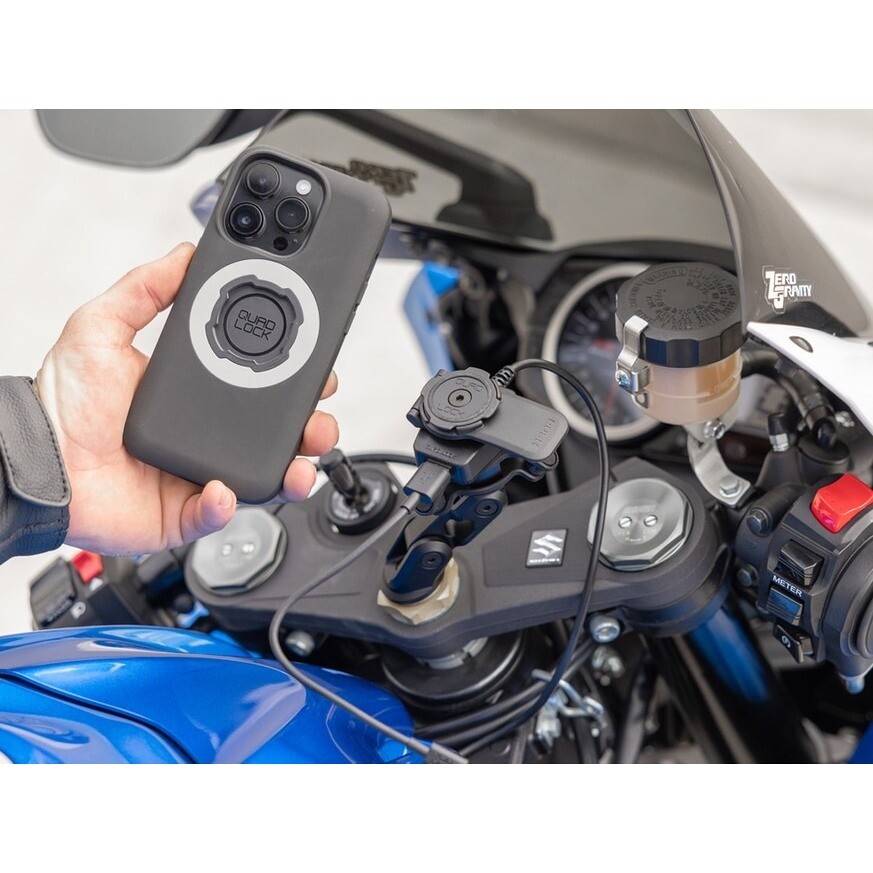

The motorcycle USB charger integrates seamlessly with any Quad Lock motorcycle mount (handlebar, mirror or triple clamp) or 1" ball adapter.

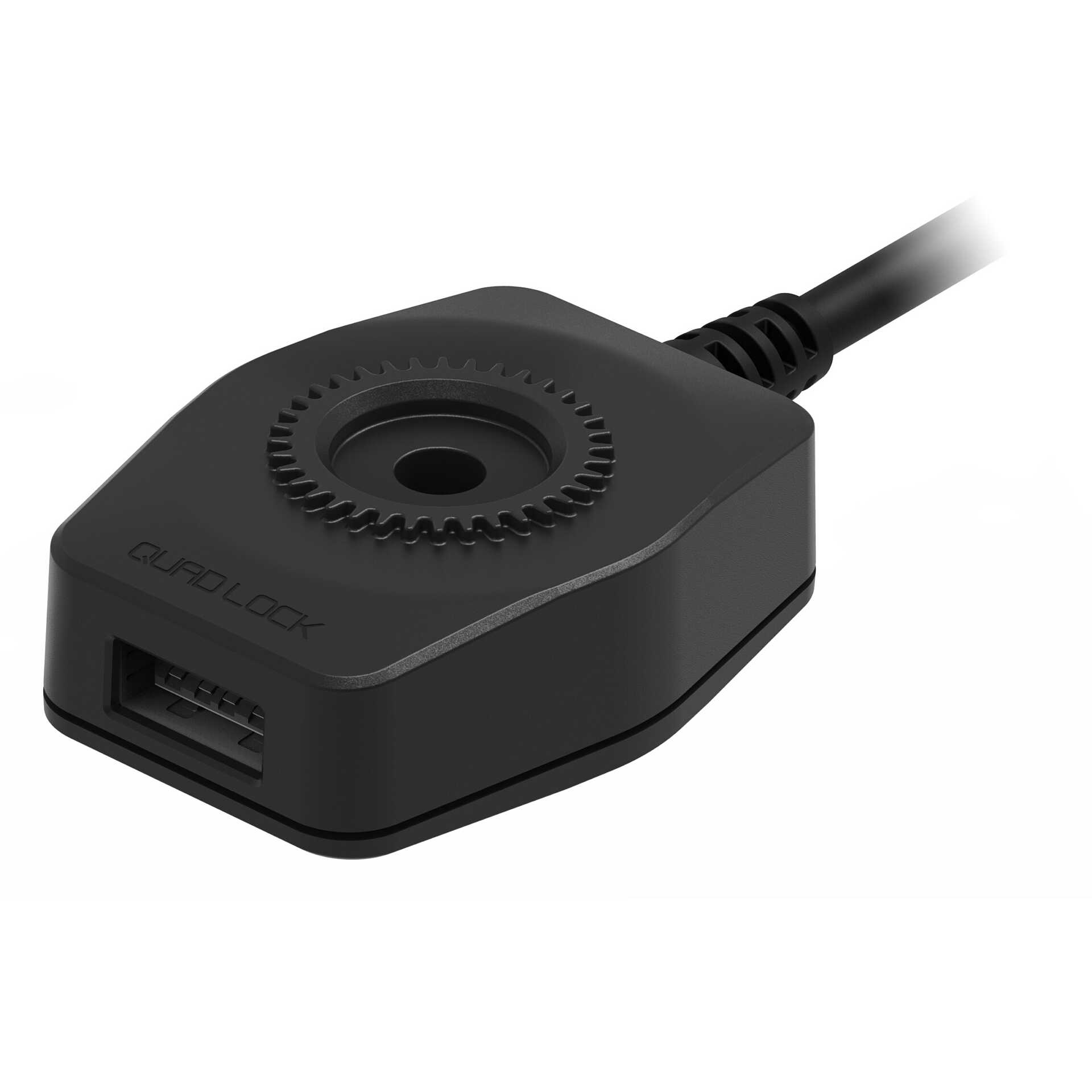

The charger is positioned under the head of the Quad Lock mount to provide USB power without the need for long charging cables.
The 1.5 m SAE connection cable and 20 cm SAE-battery ring terminals allow you to connect directly to the battery terminal or an existing SAE port. The charger draws no power when not in use, so there's no risk of draining the battery.
FAST CHARGING AND OVERVOLTAGE PROTECTION
The Quad Lock USB motorcycle charger features the Quick Charge 2 function.0 for fast charging, plus built-in surge and polarity protection to protect your device from human errors (such as incorrect installations).
WATER RESISTANT WITH IP66 RATING
Unless you want to ride underwater (which we don't recommend), the IP66 water resistance rating means you don't need a cap to cover the USB port, no matter how heavy the rain gets.
Technical Data Sheet:
- IP66 certified water resistant housing
- IPX8-certified water-resistant USB plug. No plug required.
- Quick Charge 2.0 (5V-2A, 9V-1.67A, 12V-1.5A)
- The input voltage for the motorcycle USB is 12 - 24 V DC
- Built-in self-repairing fuse with surge protection
- Reverse polarity protection (prevents damage if installed incorrectly)
- 1.5m cable to SAE connector and 20cm SAE to battery ring terminals
Packaging:
- Quad Lock® Motorcycle USB Charger
- 1" SAE connection cable5 m and 20 cm SAE ring terminals for the battery
