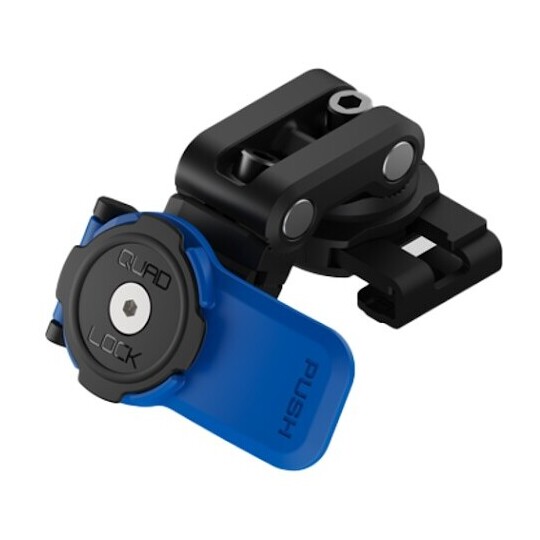

Quad Lock QLM-BRS-2 Brake Fluid Reservoir Support
The Quad Lock® Brake Fluid Reservoir Mount is the perfect solution for mounting your phone to the square brake fluid reservoirs of maxi scooters, mopeds and motorcycles.
SECURE FIXING
Thanks to our patented two-stage locking mechanism, your smartphone will stay securely attached while driving, no matter the conditions.
The mount is secured to the scooter's brake fluid reservoir with self-locking screws, reducing the risk of loosening of the fasteners due to thermal and/or mechanical factors, such as vibration.
OPTIMAL VIEW
The head tilt can be adjusted and the arm features multiple rotation points to ensure maximum flexibility in positioning the smartphone at the optimal angle, without interfering with the controls of the scooter or motorbike.

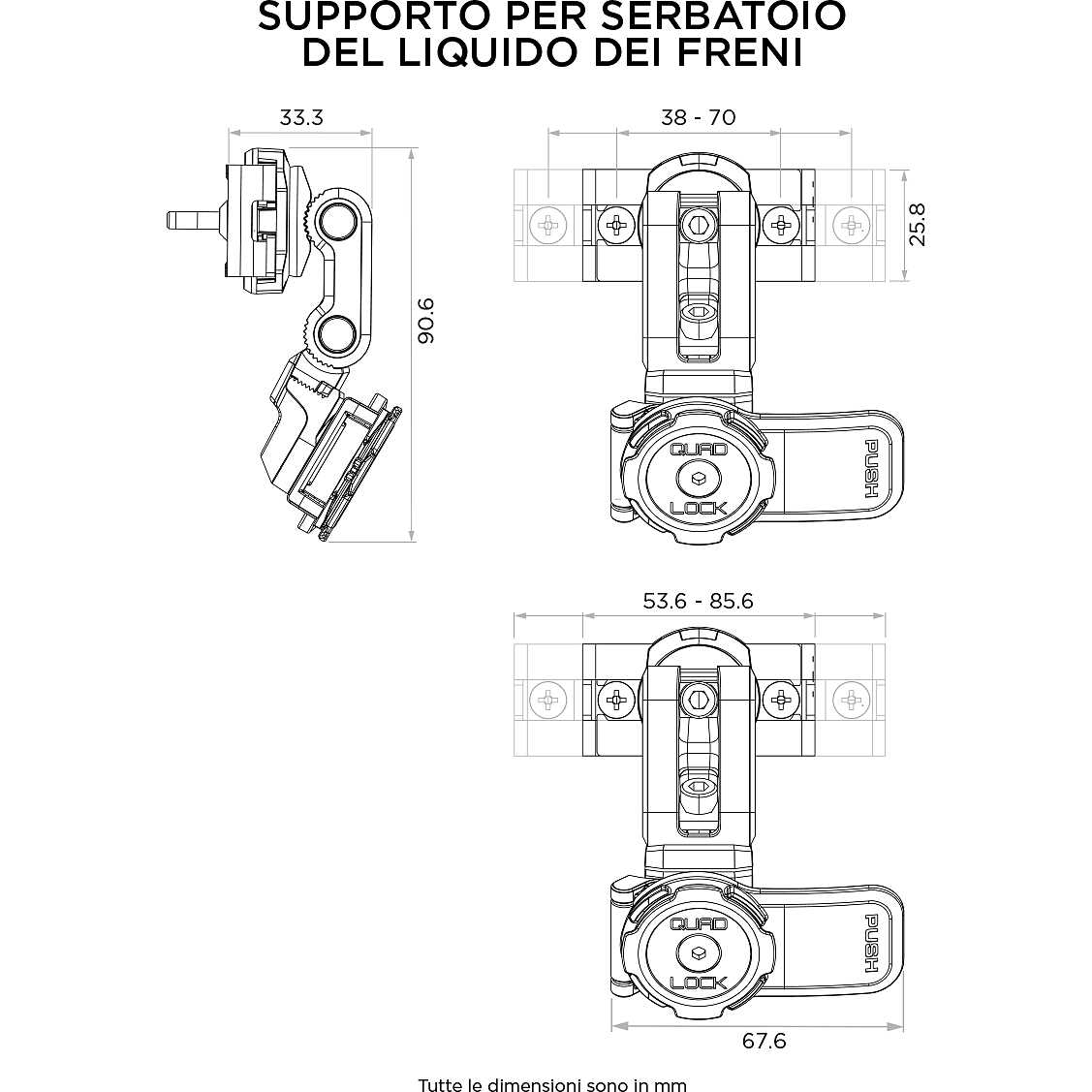

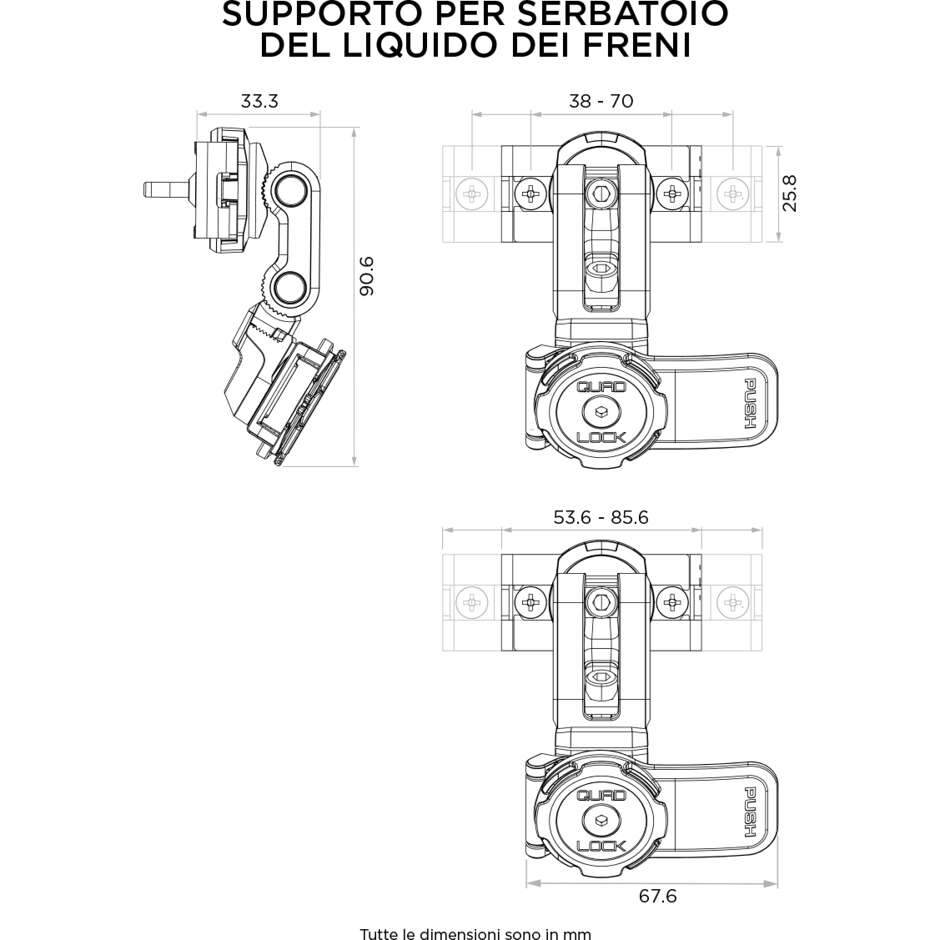

The hole spacing is suitable for lengths between 38 and 70 mm. The mount can be moved laterally when mounted on small brake reservoir covers, ensuring the phone is positioned for full access to all controls.
ELEGANT DESIGN
The brake fluid reservoir holder will perfectly match the look of your scooter or motorcycle, thanks to its high-quality materials and understated design.
Technical Data Sheet:
- Made of sturdy glass-filled nylon
- Stainless steel rotation pins and threaded inserts
- Powder coated steel support
- High-strength steel fasteners with microencapsulated threadlocker
- Mounting hole spacing from 38mm to 70mm (1 1/2" - 2 3/4")
- Multi-pivot arm adjustment and head tilt adjustment
- Lateral adjustment when mounting on small brake reservoir covers
Packaging:
- 1 Quad Lock Brake Fluid Reservoir Mount
- 2 M4 x 16 countersunk head screws
- 2 M4 x 18 countersunk head screws
- 1 x 3mm/4mm Allen key combination wrench
