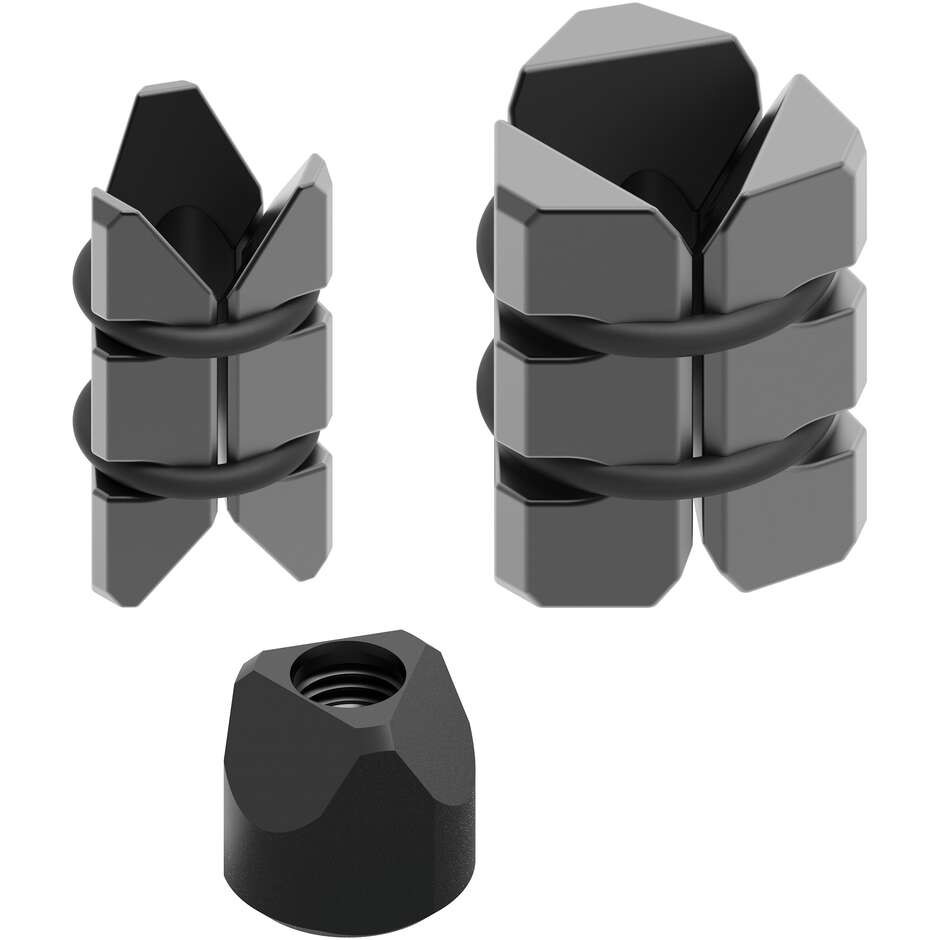

Quad Lock Expansion Spacer Kit ProQLP-RFS-PRO Fork Stem Mounts Spacer Set

The Quad Lock® Fork Stem Mount Spacer Set is designed to replace the mounting components of Quad Lock® smartphone mounts for the fork steerer tubes of sport and street motorcycles. Compatible with the Motorcycle Fork Stem Mount and Fork Stem Mount PRO, it includes two different-sized expansion clamps, suitable for steerer tubes with an internal diameter of 12.4 to 25.4 mm. The expansion system allows the attachment to be adapted to the internal diameter of the steerer tube, helping to keep the mount properly locked. Ideal for replacing lost or damaged components or for transferring the mount to another motorcycle, it allows you to reuse your existing Quad Lock® system without purchasing a complete mount.

Technical Data Sheet:

Main Features

• Original Quad Lock® replacement kit for fork steerer smartphone mounts.

• Fixing system using expansion clamps.

• Includes two different sized clamps to fit the inside diameter of the steerer tube.

• Suitable for steerer tubes with an internal diameter between 12.4 and 25.4 mm.

• Allows you to replace lost or damaged original expansion components.

• Allows you to reuse a compatible mount on motorcycles with different steerer tube diameters.

Dimensions and Fixing System

• Small expansion clamp: for steerer tubes with an internal diameter of 12.4 to 19 mm.

• Medium Expansion Clamp: For steerer tubes with an internal diameter of 18.6 to 25.4 mm.

• Each clamp is equipped with two circular O-ring seals.

• Central fixing nut included.

Compatibility

• Compatible with Quad Lock® Motorcycle Fork Stem Mount.

• Compatible with Quad Lock® Motorcycle Fork Stem Mount PRO.

• Designed for installation inside the fork steerer tube of compatible motorcycles.

• Requires a steerer tube with an internal diameter within the measurements supported by the included clamps.

• It does not replace the complete holder or the smartphone's docking head.

• Quad Lock® mount and related mounting components not included in the kit can be purchased separately.

Installation

• Measure the inside diameter of your fork steerer tube before choosing your clamp.

• Select the expansion clamp corresponding to the detected measurement.

• Install the clamp on the compatible Quad Lock® mount using the provided mounting hardware.

• Insert the assembly into the tube and tighten the expansion system following the instructions on the bracket.

• Make sure the mount is securely attached and does not interfere with the steering movement or controls of the motorcycle.

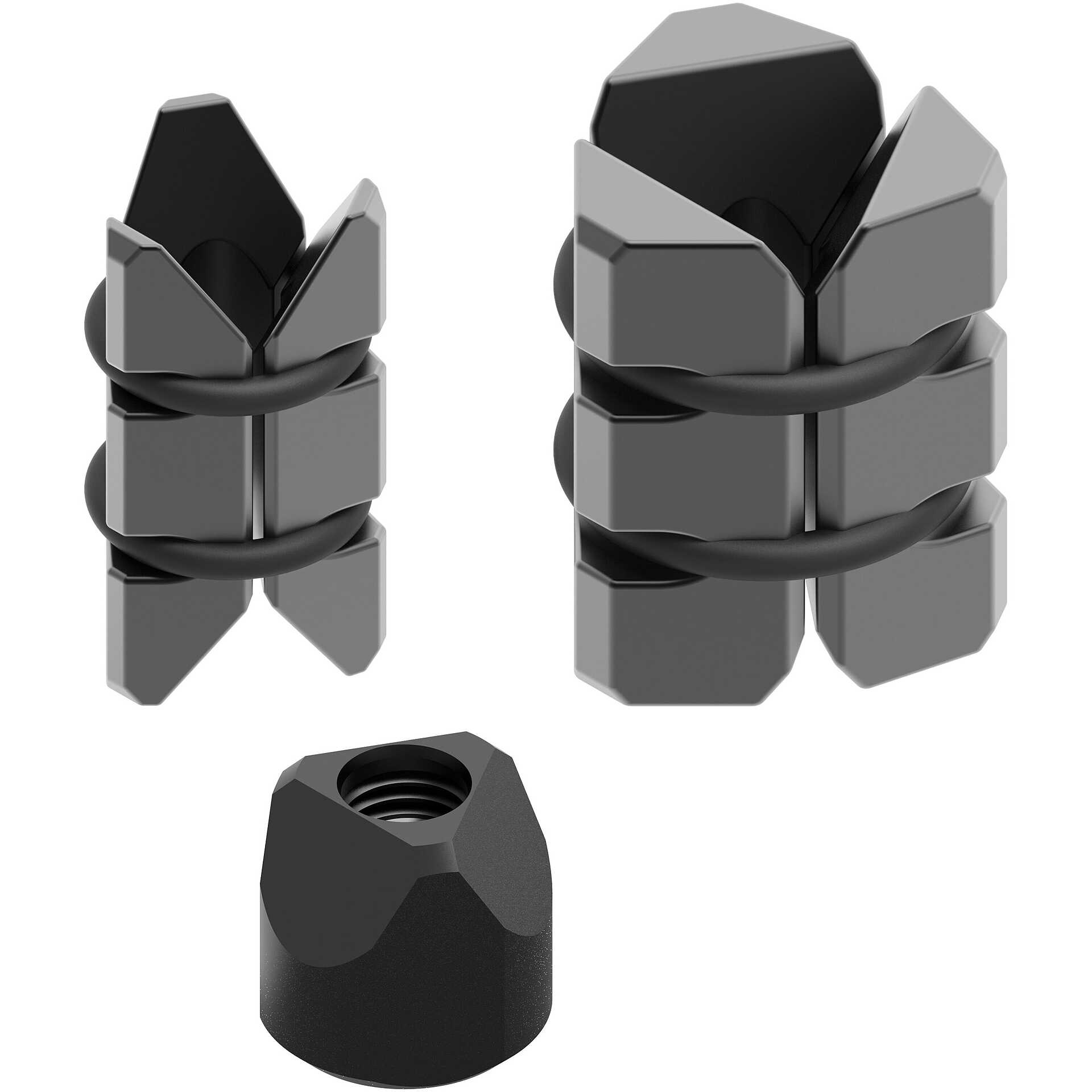

Equipment Included

• 1 small expansion clamp for diameters from 12.4 to 19 mm, complete with 2 O-rings.

• 1 medium expansion clamp for diameters from 18.6 to 25.4 mm, complete with 2 O-rings.

• 1 central fixing nut for motorcycles.
