Quad Lock 360 Arm QLP-360-SPA - Single Pin

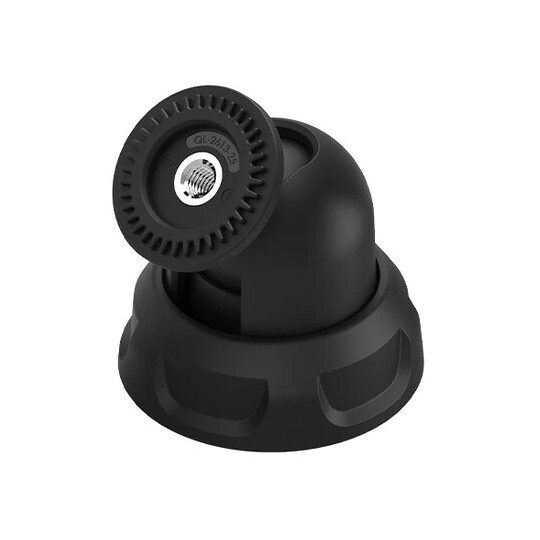

The Quad Lock 360™ Single Pivot Arm is part of the Quad Lock 360™ modular mounting system, designed to increase the adjustability and customization of your smartphone's position. Featuring a pivoting ball joint, it offers 90° vertical rotation and 360° horizontal rotation, allowing you to easily adjust the angle of your device to your needs. The durable nylon construction offers strength and a compact size, while the manual tightening system allows for tool-free orientation changes. Compatible with all Quad Lock 360™ bases and heads, it offers a versatile solution for creating custom mounts and achieving greater distance between your device and the mounting base.

Technical Data Sheet:

Main Features

• Single-joint swivel arm for the Quad Lock 360™ modular system.

• Allows you to increase the distance between the mounting base and the installed device.

• Ball joint with 90° vertical rotation and 360° horizontal rotation.

• Manual adjustment system using a tightening ring.

• Possibility to change the position and inclination of the joint without using tools.

• Compact design, suitable for space-saving mounting configurations.

Materials and Dimensions

• Structure made of resistant nylon.

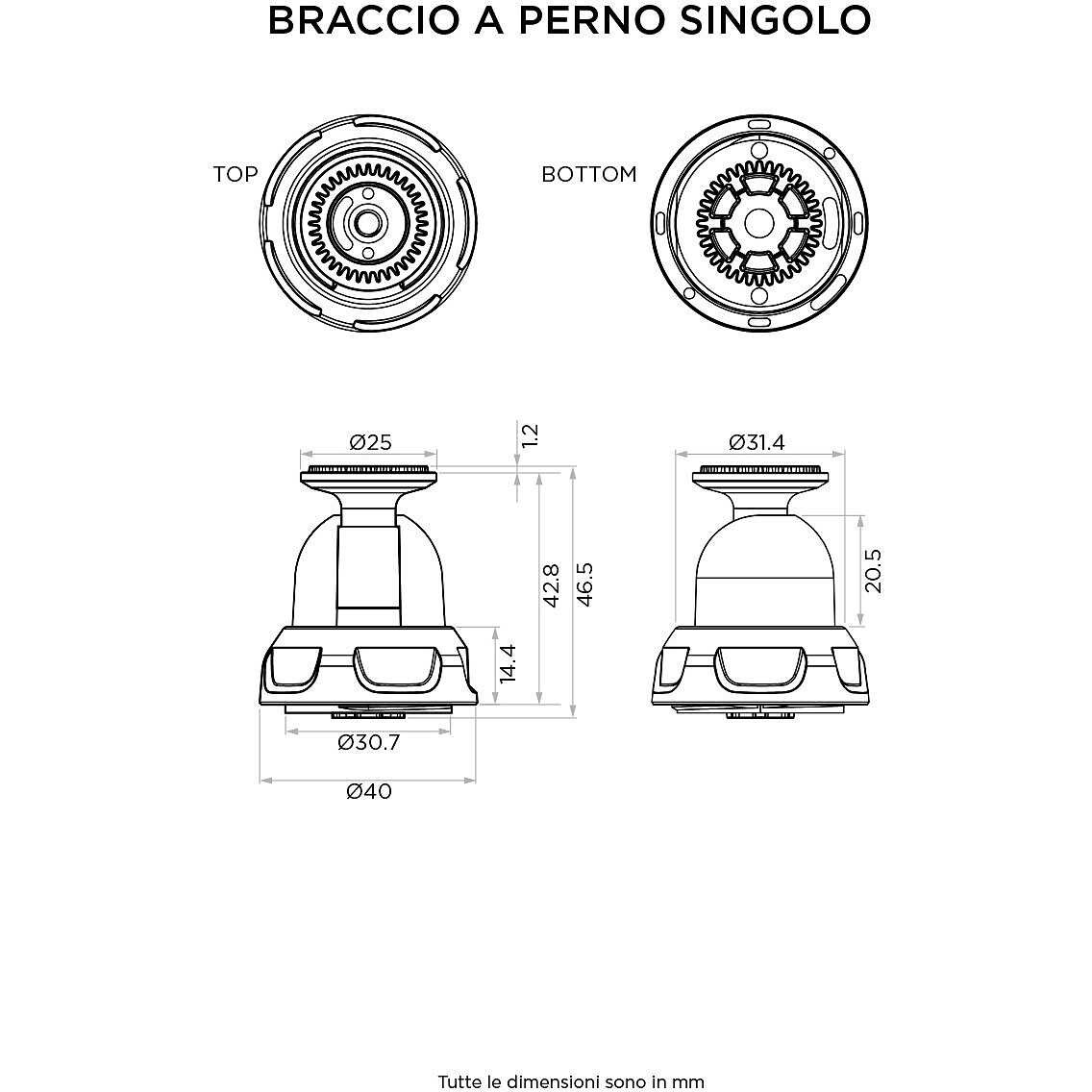

• External diameter of the clamping ring: 40 mm.

• Overall height: 45.5 mm.

• Weight: 37 g.

Compatibility

• Compatible with all Quad Lock 360™ BASES mounting bases.

• Compatible with all Quad Lock 360™ HEADS support heads.

• Integrates with other components of the Quad Lock 360™ modular system to create customized configurations.

• Bases and support heads available for purchase separately.

Installation and Adjustments

• Attaches to the base or another Quad Lock 360™ arm using an M5 countersunk screw.

• Tighten the fixing screw using a 3 mm hex key.

• Prescribed tightening torque for the fixing screw: 4 Nm.

• Adjustment ring can be loosened by rotating it counterclockwise.

• Orientation of the ball joint to the desired position before tightening.

• Locking the adjustment by rotating the ring clockwise.

• Ability to change the orientation of the device without removing the arm from the base.

Equipment Included

• 1 Quad Lock 360™ Single Pivot Arm.

• 1 x M5 x 20 mm countersunk head screw with hexagon socket.

• 1 x 3mm hex key.
