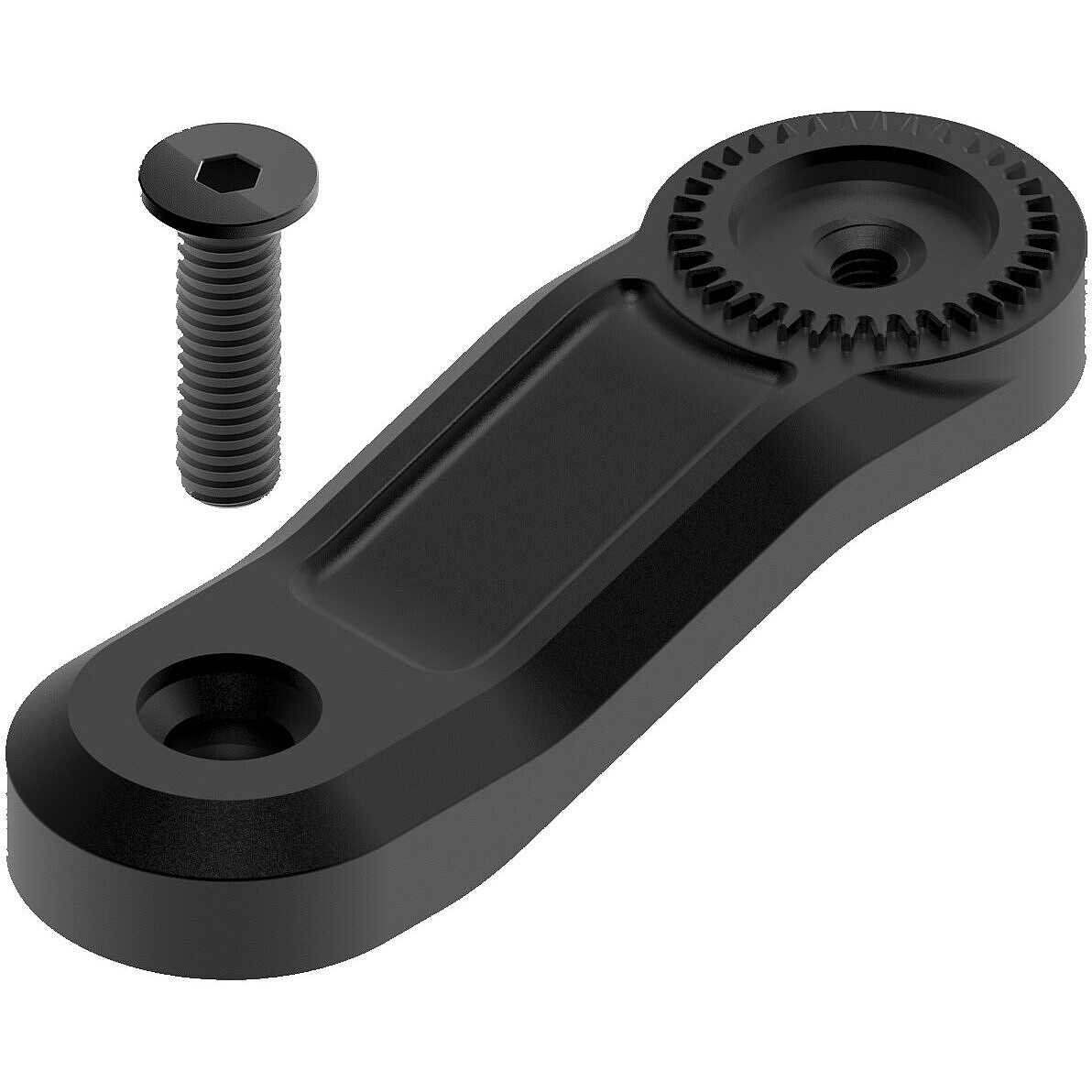

Quad Lock QLP-HBR-PRO-EA Replacement Extension Arm for Pro Motorcycle Handlebar Mount (50mm)

The Quad Lock® Extension Arm PRO 50 mm is designed to increase available space and improve smartphone positioning on motorcycle and scooter mounts. Made from CNC-machined aluminum with a black anodized finish, it offers a sturdy and compact structure, ideal for adapting the mount configuration to the characteristics of the handlebars or mirrors. The 50 mm spacing between the mounting points allows the mounting head to be separated from the base, making it easier to position the device relative to other vehicle components. Compatible with Quad Lock® handlebar and mirror mounts and the Quad Lock 360™ modular system, it allows for customized installation while maintaining a stable hold.

Technical Data Sheet:

Main Features

• PRO extension arm for Quad Lock® smartphone holders.

• Designed to increase the distance between the mounting base and the smartphone's docking head.

• Allows you to customize the position of the device based on the vehicle configuration.

• Rigid structure with screw fixing system.

• Black finish coordinates with Quad Lock® PRO mounts.

Materials and Dimensions

• CNC machined aluminum body with black anodized finish.

• Black stainless steel fixing components.

• Distance between fixing points: 50 mm.

• Overall length: 75 mm.

Compatibility

• Compatible with Quad Lock® Motorcycle Handlebar Mounts.

• Compatible with Quad Lock® Mirror Mounts.

• Compatible with all components of the Quad Lock 360™ modular system.

• Can be used to create custom configurations with compatible support bases and heads.

• Supports, bases and attachment heads can be purchased separately.

Installation

• Connection between the mounting base and the support head by screw fixing.

• M5 x 20mm countersunk head screw with hex socket included.

• Possibility to orient the arm during installation according to the desired position of the smartphone.

Equipment Included

• 1 x Quad Lock® Extension Arm PRO 50mm.

• 1 x M5 x 20 mm countersunk head screw with hexagon socket, black.
